Solar Breaker Pakistan
-
DC 2 Pole MCB 500V | Solar PV Breaker
- Rs.1,600
Rs.1,800- Rs.1,600
- Unit price
- per
DC 2 Pole MCB 500V is the core safety breaker used on the DC side of solar systems to disconnect and protect strings from overcurrent and short-circuit faults. The CNC Electric YCB8-63PV is built for solar PV use, DIN-rail mounting, and comes in 4...- Rs.1,600
Rs.1,800- Rs.1,600
- Unit price
- per
-
DC 1000V Fuse Holder YCF8 | Reliable Solar & Power Protection
- Rs.450
Rs.500- Rs.450
- Unit price
- per
DC fuse holder is a basic but important protection part in solar PV systems where string-level overcurrent protection is required. The CNC Electric Pakistan DC 1000V Fuse Holder RT18-32 YCF8 is built for DIN-rail mounting, takes replaceable 10×38 cartridge fuses, and gives reliable solar...- Rs.450
Rs.500- Rs.450
- Unit price
- per
-
DC 2 Pole MCB 500V 125A | for Battery Protection
- Rs.2,500
Rs.2,800- Rs.2,500
- Unit price
- per
Battery breaker buyers in Pakistan choose the DC 2 Pole 500V 125A Battery Breaker YCB1-125 when they need high-current DC battery breaker performance for real installations rather than improvised solutions. Starting from Rs.2,500, this product suits everyday use cases such as AC lines, geysers,...- Rs.2,500
Rs.2,800- Rs.2,500
- Unit price
- per
-
DC Fuse 15A, 20A, 32A | 1000V Solar Fuse Holder for PV Systems
- Rs.400
Rs.450- Rs.400
- Unit price
- per
DC fuse 1000V is one of the most important low-cost protection parts in a solar PV string when you need dedicated overcurrent protection on the DC side. This CNC Electric solar fuse is available in 15A, 20A, and 32A ratings in a 10×38 fast-blow...- Rs.400
Rs.450- Rs.400
- Unit price
- per
-
AC Fuse 2A, 6A, 12A, 16A, 20A, 30A | 220V Solar Fuse Holder for PV Protection Systems
- Rs.40
Rs.45- Rs.40
- Unit price
- per
AC fuse 2A-30A is the low-cost replaceable protection option for buyers who want a simple fuse link for 220V circuits instead of changing the whole holder assembly. On the live CNC Electric Pakistan page, this listing shows 2A, 6A, 12A, 16A, 20A, 25A and...- Rs.40
Rs.45- Rs.40
- Unit price
- per
-
MC4 Connector Solid Pin 6mm 1500V | Reliable Solar PV Connection
- Rs.280
Rs.350- Rs.280
- Unit price
- per
MC4 connector 6mm solid pin is a premium solar panel connector for larger PV cable runs and higher-current rooftop work in Pakistan. This CNC Electric Pakistan connector is made for 6mm cable, offers a stronger solid pin contact than a normal pin, and is...- Rs.280
Rs.350- Rs.280
- Unit price
- per
-
DC SPD 600V 2 Pole | Solar Surge Protector
- Rs.2,900
Rs.3,220- Rs.2,900
- Unit price
- per
DC SPD 600V 2 Pole | Solar Surge Protector Protect your photovoltaic power generation systems with the reliable YCS6-C DC SPD. Designed specifically for solar applications, this device efficiently handles surge overvoltages caused by lightning strikes or other transient events, diverting excess energy safely...- Rs.2,900
Rs.3,220- Rs.2,900
- Unit price
- per
-
MC4 4mm Connector Normal Pin 1000V, 1500V | Reliable Solar PV Connection
- Rs.100
Rs.200- Rs.100
- Unit price
- per
MC4 connector 4mm is the standard solar panel connector used to join PV cables safely in rooftop and ground-mount solar systems across Pakistan. This CNC Electric Pakistan solar MC4 connector is built for 4mm cable, normal pin connection, and outdoor use where heat, dust,...- Rs.100
Rs.200- Rs.100
- Unit price
- per
-
MC4 Connector with 20A Fuse DC 1000V | Safe Solar Power Connection
- Rs.900
Rs.1,200- Rs.900
- Unit price
- per
MC4 connector with fuse is a compact solar protection part that combines a PV connector and inline overcurrent protection in one unit for Pakistan. This CNC Electric Pakistan MC4 fuse connector is rated for 1000V DC, available with 20A or 30A fuse options, and...- Rs.900
Rs.1,200- Rs.900
- Unit price
- per
-
MC4 Y-Type Connector 1000V PV-LTY2 | High-Quality Solar PV Connection
- Rs.700
Rs.1,050- Rs.700
- Unit price
- per
Looking for an MC4 Y solar connector price in Pakistan for rooftop solar wiring, panel string connection, or combiner-side cable work? This CNC Electric MC4 Y-Type Connector is built for installers who want a cleaner and more reliable PV connection point instead of forcing...- Rs.700
Rs.1,050- Rs.700
- Unit price
- per
-
DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection
- Rs.240
Rs.440- Rs.240
- Unit price
- per
MC4 DC Connector Solid Pin 4mm 1000V is a practical mc4 connector option for Pakistani buyers who want a proper electrical product instead of improvised market stock. Listed at Rs.240, it is suited to real solar installations in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and...- Rs.240
Rs.440- Rs.240
- Unit price
- per
-
DC SPD 1000V 2 Pole | Solar Surge Protector
- Rs.3,700
Rs.4,110- Rs.3,700
- Unit price
- per
Looking for a DC SPD 2 pole 1000V price in Pakistan for a solar combiner box, inverter-side DC panel, or rooftop PV protection setup? This CNC Electric solar surge protector is built for installers and buyers who want proper DC-side surge control instead of...- Rs.3,700
Rs.4,110- Rs.3,700
- Unit price
- per
-
MC4 Connector 1500V 10mm Solid Pin | Solar Panel
- Rs.350
Rs.500- Rs.350
- Unit price
- per
Looking for an MC4 connector 10mm price in Pakistan for solar panel wiring, DC cable terminations, or rooftop PV installation work? This CNC Electric solid-pin solar connector is built for installers who want a proper photovoltaic connection instead of loose joints, weak adapters, or...- Rs.350
Rs.500- Rs.350
- Unit price
- per
-
DC 4 Pole MCB 1000V | Solar PV Breaker
- Rs.3,400
Rs.3,700- Rs.3,400
- Unit price
- per
DC MCB 4 pole 1000V price in Pakistan matters when a solar installer needs a breaker that actually matches DC string voltage instead of a normal AC breaker forced into a PV job. This CNC Electric listing is sold locally from Rs.3,300 with selectable...- Rs.3,400
Rs.3,700- Rs.3,400
- Unit price
- per
-

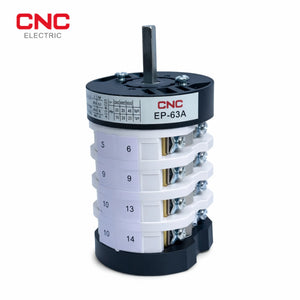

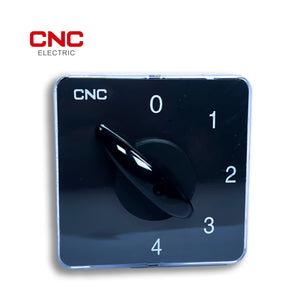

4 Pole Rotary Changeover Switch EP
- Rs.3,600
Rs.4,000- Rs.3,600
- Unit price
- per
Not sure which voltage protector you need? Try our VA Protector Product Finder Tool — Pakistan's first interactive selector. Scope EP is mainly used for electrical equipment cabinets or three-phase asynchronous motor load start shifting and steering, used as the main and auxiliary circuits...- Rs.3,600
Rs.4,000- Rs.3,600
- Unit price
- per
-
DC 1P MCB 500V 125A YCB1 | Reliable Protection
- Rs.1,150
Rs.1,300- Rs.1,150
- Unit price
- per
CNC YCB8s-125PV DC 1 Pole MCB -- 500V 125A A single-pole DC miniature circuit breaker rated at 500V and 125A, built specifically for photovoltaic and battery protection. This is the breaker you need when running high-current DC strings or battery bank feeds in solar...- Rs.1,150
Rs.1,300- Rs.1,150
- Unit price
- per
-
MC4 T-Type Connector 1000V PV-LT2 | High-Quality Connector for Photovoltaic Systems
- Rs.1,100
Rs.1,500- Rs.1,100
- Unit price
- per
MC4 T connector buyers in Pakistan choose the MC4 T-Type Connector DC 1000V Solid Pin 10mm when they need a reliable solar panel parallel connector for rooftop PV branching without building a full combiner box. Starting from Rs.650, this MC4 splitter is made for...- Rs.1,100
Rs.1,500- Rs.1,100
- Unit price
- per
-
DC 2 Pole 500V DC 100A YCQ4 Automatic Transfer Switch | Safe Solar Backup
- Rs.7,300
Rs.7,800- Rs.7,300
- Unit price
- per
General ● Functionality: Provides automatic switching to backup power when the main power supply fails. ● Applications: Automatic transfer switch widely used in households and other settings requiring uninterrupted power supply. ● Installation: Easy installation into household rail systems and compatible with Pz30 distribution boxes. ● Control: Offers both automatic...- Rs.7,300
Rs.7,800- Rs.7,300
- Unit price
- per
-
DC Fuse 20A, 32A | 1500V Solar Fuse Holder for PV Systems
- Rs.650
Rs.700- Rs.650
- Unit price
- per
DC fuse holder 1500V is the correct buyer-facing description for this listing, because the live Pakistan page is currently selling the holder-only variant at Rs.600. This matters. A holder by itself does not give overload or short-circuit protection. The protection comes only after the...- Rs.650
Rs.700- Rs.650
- Unit price
- per
-

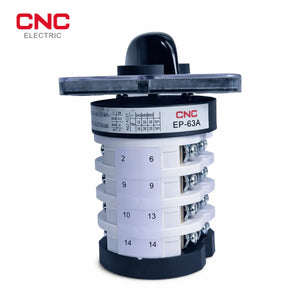

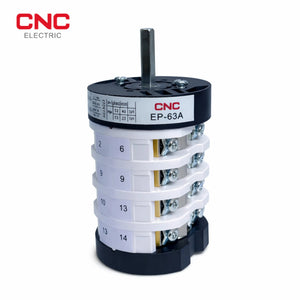

4 Pole Changeover Switch EP 63A
- Rs.3,850
Rs.4,250- Rs.3,850
- Unit price
- per
Not sure which voltage protector you need? Try our VA Protector Product Finder Tool — Pakistan's first interactive selector. Scope EP is mainly used for electrical equipment cabinets or three-phase asynchronous motor load start shifting and steering, used as the main and auxiliary circuits...- Rs.3,850
Rs.4,250- Rs.3,850
- Unit price
- per
CNC Electric is Pakistan's authorised distributor of solar circuit breakers — DC-rated MCBs and MCCBs purpose-built for photovoltaic strings, battery banks, and inverter DC bus protection. Standard 500V, 1000V and 1500V DC voltage ratings, IEC 60947-2 certified, with 5-year warranty from local Lahore stock.
Solar Breaker Price in Pakistan 2026
| Type | Voltage / Amp | Application | Price (PKR) |
|---|---|---|---|
| DC MCB 2P Solar | 500V × 16-63A | 6-12 panel string | Rs. 1,600 – 1,950 |
| DC MCB 4P Solar | 1000V × 20-63A | 12-24 panel residential string | Rs. 3,400 – 3,700 |
| DC MCB 4P Commercial | 1500V × 32A | Large commercial PV plant | Rs. 3,800 – 4,220 |
| DC Battery Breaker | 500V × 125A | Inverter battery bus | Rs. 2,500 – 2,800 |
| Solar DC Isolator 4P | 1000V × 25-63A | Rooftop service disconnect | Rs. 2,800 – 4,500 |
| Solar SPD DC | 600V / 1000V / 1500V | Lightning surge protection | Rs. 2,900 – 8,600 |
| DC Fuse Holder 10×38 | 1000V × 1-30A gPV | String fuse protection | Rs. 380 – 850 |
Why You CANNOT Use AC Breakers on Solar DC
The single most dangerous mistake in Pakistani solar installs is using AC MCBs/MCCBs on the DC side. AC current crosses zero 100 times per second — the natural way arcs self-extinguish. DC current never crosses zero, so the arc keeps burning when you try to open the breaker. Within 1-3 seconds the contacts weld closed and the breaker housing melts. Fire risk is real and documented.
The CNC DC-rated breakers in this collection use twin contact pairs in series + permanent magnets to deflect the arc, achieving safe DC interruption at the rated voltage. Voltage rating must match your PV string Voc × 1.25 safety factor:
| PV String Voc | Required Breaker Voltage | CNC Model Family |
|---|---|---|
| up to 200V (6-panel) | 250V DC | YCB8-63 250V |
| 200-400V (8-12 panel) | 500V DC | YCB8-63PV 500V |
| 400-800V (residential) | 1000V DC | YCB8s-63 1000V 4P |
| 800-1200V (commercial) | 1500V DC | YCB8s-32 1500V 4P |
Complete Solar DB Protection Bundles
For one-stop solar DB protection, CNC offers pre-packaged bundles combining DC breaker + SPD + isolator + DC fuse in a single waterproof enclosure:
- 3-5kW On-Grid Bundle: 2P 32A DC MCB + 1000V SPD + 16A DC fuse — Rs. 8,500
- 5-10kW Hybrid Bundle: 4P 63A DC MCB + 1500V SPD + battery breaker + 2× DC isolator — Rs. 18,500
- 10-20kW Commercial Bundle: 100A DC MCCB + 1500V Class I+II SPD + 4-string fuse combiner — Rs. 38,500
NEPRA Net-Metering Compliance
Pakistani solar net-metering applications under NEPRA SROs require approved DC-side protection. The CNC solar breaker range complies with:
- IEC 60947-2 (DC switchgear safety)
- IEC 60364-7-712 (PV installation safety)
- NEPRA Net-Metering Reference Guide 2023 §4.2 (DC isolation requirements)
- AEDB Net-Metering Application Form, Annexure C (protection schedule)
