Key Features:
1. Comprehensive Protection
Offers effective overcurrent, overload, and short circuit protection, ensuring safety for electrical systems.
· Protects against electrical faults and overloads.
· Suitable for AC 50/60Hz circuits.

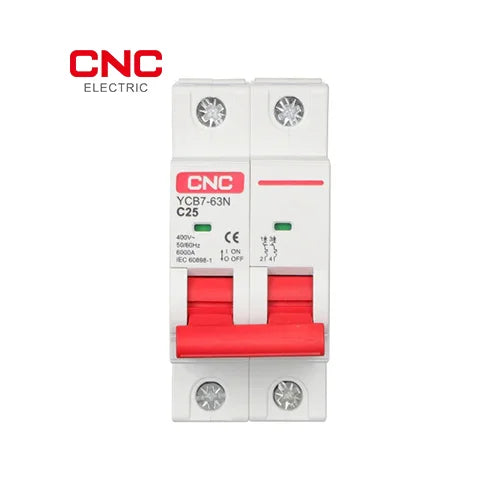

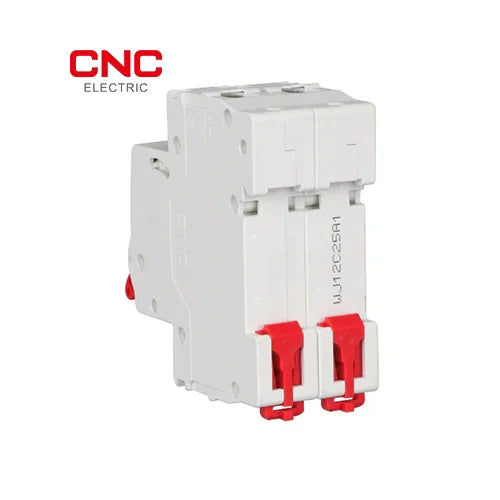

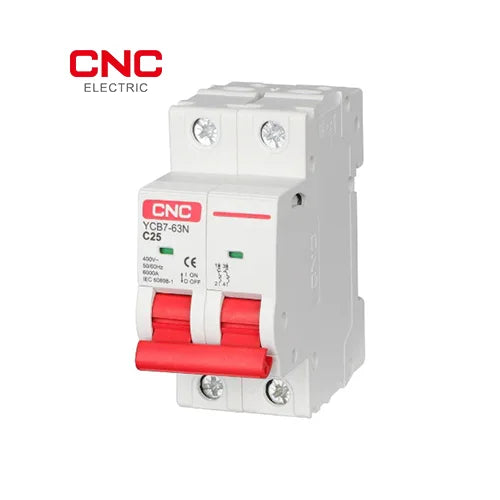

2. Dual Pole Configuration
AC Circuit Breaker Designed with a double-pole structure for enhanced flexibility and safety in electrical installations.
· Supports 10A, 16A, 20A, 25A, 30A, 40A & 63A rated currents.
· Provides reliable protection for both poles.
3. High Performance
Features a breaking capacity of 6.0 KA and tripping curves (B, C, D) for diverse applications.
· Handles high fault currents efficient
· Meets the needs of residential, commercial, and industrial environments.
Specification |
Value |
Type |
Standard IEC / EN 60898-1 |
Rated Current (In) |
10A, 16A, 20A, 25A, 30A, 40A & 63A |
Poles |
2 Pole |
Rated Voltage (UE) |
230 / 400 V |
Insulation Voltage (UI) |
500 V |
Rated Frequency |
50 / 60 Hz |
Rated Breaking Capacity |
6000 A |
Rated Impulse Withstand Voltage (UIMP) |
4000 V |
Dielectric Test Voltage at Industrial Frequency (1 min) |
2 kV |
Pollution Degree |
2 |
Thermo-Magnetic Release Characteristic |
B, C, D |
Electrical Life |
6000 cycles |
Mechanical Life |
20000 cycles |
Protection Degree |
IP20 |
Ambient Temperature (Daily Average ≤35°C) |
-25~+70°C |
Storage Temperature |
-25~+70°C |
Terminal Connection Type |
Cable/Pin-type busbar |
Terminal Size Top/Bottom for Cable |
25 mm² / AWG 18-3 |
Terminal Size Top/Bottom for Busbar |
25 mm² / AWG 18-3 |
Tightening Torque |
2 N·m / 18 In-lbs. |

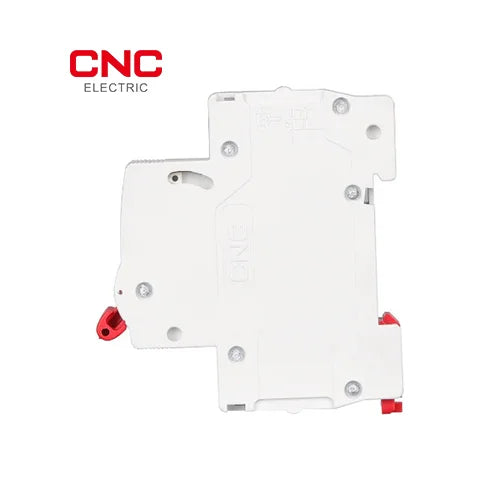

Mounting |
On DIN rail EN 60715 (35 mm) by means of fast clip |
Connection |
From top and bottom |
Reference Temperature for Setting of Thermal Element |
30°C |
