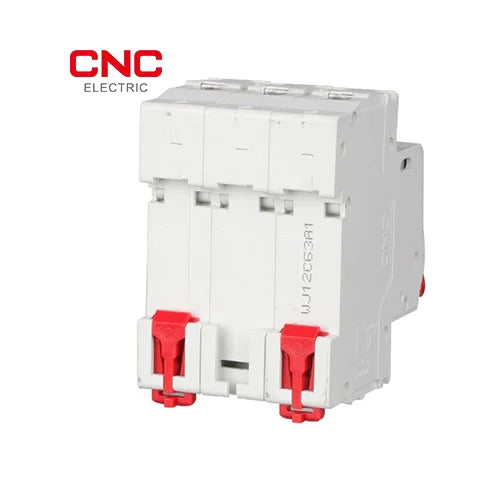

MCB AC Circuit Breaker

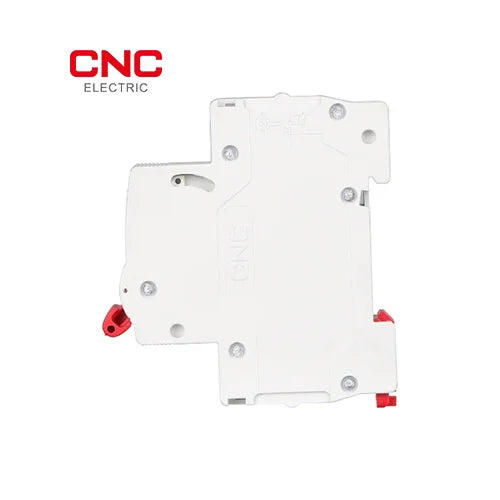

MCB AC Circuit Breaker

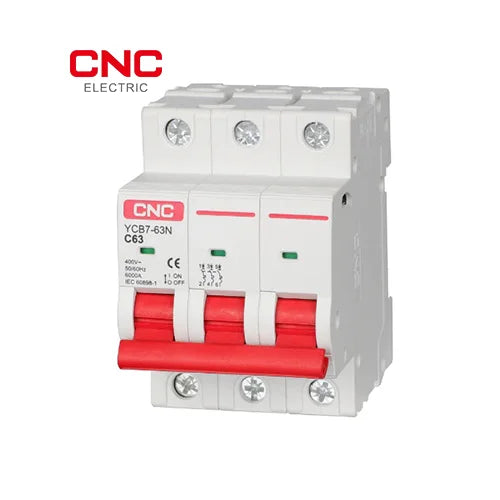

MCB AC Circuit Breaker

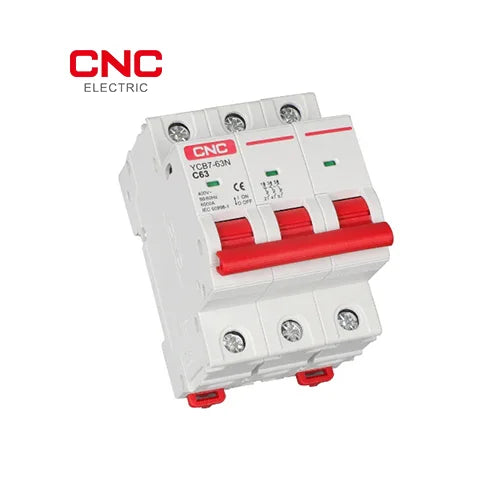

MCB AC Circuit Breaker

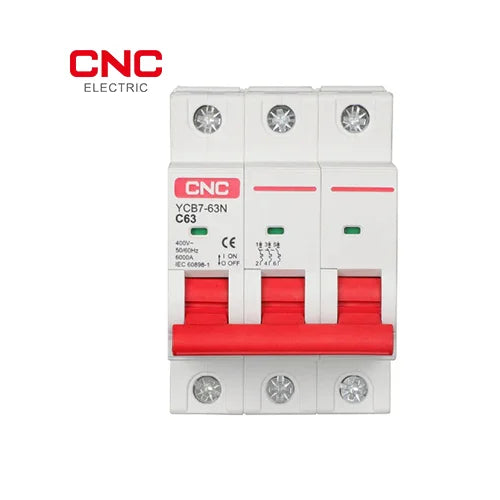

MCB AC Circuit Breaker

AC 3P MCB 20A, 32A, 40A, 63A

SKU: YCB7-63N
Availability: In Stock
Rs.1,300
Rs.1,600
Rs.1,300
10 customers are viewing this product
Please hurry! Only 1000 left in stock
AMPERE: 20A
Subtotal: Rs.1,300
MCB AC Circuit Breaker

AC 3P MCB 20A, 32A, 40A, 63A

Rs.1,600 Rs.1,300

AC 3P MCB 20A, 32A, 40A, 63A

Rs.1,600 Rs.1,300
AMPERE: 20A

 Key Features

1. Enhanced Overcurrent Protection
Provides reliable overload and short-circuit protection to ensure electrical systems are safeguarded.

·         Rated for high breaking capacity of 6.0 kA.

·         Suitable for both residential and commercial installations.

2. Triple Pole Configuration
The three-pole AC breaker design offers superior protection for multi-phase systems, making it ideal for industrial and commercial use.

·         Available in 16A, 20A, 32A, 40A, 63A & 80A rated currents.

·         Suitable for three-phase circuits.

3. Flexible Tripping Characteristics
Equipped with B, C, and D tripping curves to accommodate varying application requirements.

·         Efficiently handles different fault types.

·         Offers quick response to overcurrent situations.

4. Certified Quality and Safety
Complies with international safety standards to ensure high performance and reliability.

·         Certified by CE, CB, EAC, and INMATRO.

·         Meets IEC/EN 60898-1 standards for global compatibility.

General

·         AC Breaker provides overload and short Circuit protection for circuits up to 63A.

·         Rated for AC 50/60Hz, 230V/400V circuits.

·         Ideal for industries, commercial spaces, high-rise buildings, and residential applications.

·         Suitable for infrequent switching and isolation of lines under normal conditions.



Specification

Value

Type

Standard IEC/EN 60898-1

Rated Current (In)

16A, 20A, 32A, 40A, 63A, 80A

Poles

3 Pole

Rated Voltage (Ue)

230/400 V

Insulation Voltage (Ui)

500 V

Rated Frequency

50/60 Hz

Rated Breaking Capacity

6000 A

Rated Impulse Withstand Voltage (Uimp)

4000 V

Dielectric Test Voltage at Industrial Frequency (1 min)

2 kV

Pollution Degree

2

Thermo-Magnetic Release Characteristic

B, C, D

Electrical Life

6000 cycles

Mechanical Life

20000 cycles

Protection Degree

IP20

Ambient Temperature (Daily Average ≤35°C)

-25~+70°C

Storage Temperature

-25~+70°C

Terminal Connection Type

Cable/Pin-type busbar

Terminal Size Top/Bottom for Cable

25 mm² / AWG 18-3

Terminal Size Top/Bottom for Busbar

25 mm² / AWG 18-3

Tightening Torque

2 N·m / 18 In-lbs

Mounting

On DIN rail EN 60715 (35 mm) by means of a fast clip

Connection

From top and bottom

Reference Temperature for Setting of Thermal Element

30°C
