WiFi Smart Circuit Breakers

WiFi breaker price in Pakistan starts from Rs.6,000 at CNC Electric. A WiFi breaker (also called smart circuit breaker or WiFi MCB) gives you remote on/off control, real-time energy monitoring, overload protection, and phone-based scheduling — all from the Tuya Smart or Smart Life app. Whether you need a WiFi breaker for your home DB box, solar inverter, office, farmhouse, or rental unit, this collection covers 1 pole, 2 pole, and 4 pole WiFi breakers from 16A to 100A with proper CE certification and a 5-year replacement warranty.

What Is a WiFi Breaker?

A WiFi breaker is a miniature circuit breaker (MCB) with a built-in WiFi chip that connects to your home or office router. It combines three devices into one: a traditional overload/short-circuit breaker, a smart switch, and an energy meter. You install it inside your distribution board just like a normal MCB, pair it with the Tuya Smart or Smart Life app on your phone, and then you can switch it on/off, set timers, monitor power usage, and even get alerts when voltage goes out of range — from anywhere in Pakistan as long as you have internet.

The most common use cases in Pakistan are: controlling a tube-well or water pump from inside the house, remotely powering off AC units or geysers before billing spikes, scheduling lights or pumps to run on solar hours only, cutting power to a rental shop at closing time, and killing a circuit instantly when you see unusual load on your phone.

WiFi Breaker vs Traditional MCB vs Smart Switch

Bottom line: If you want a single device that does circuit protection, remote control, energy monitoring, and voltage cutoff, a WiFi breaker replaces your MCB directly. If you just want to remote-control a light or small appliance (under 20A), a smart switch is cheaper. For motors, geysers, AC units, pumps, and 3-phase loads, only a WiFi breaker will actually work safely.

How to Choose the Right WiFi Breaker for Pakistan

Step 1 — Pick the pole count

• 1 pole (1P) — Single-phase circuits: lights, sockets, single room, small appliances. Most common for homes in Pakistan.

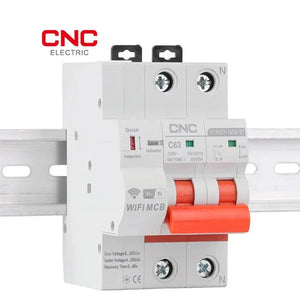

• 2 pole (2P) — Single-phase AC units, geysers, water pumps, shop mains, solar inverters (where live + neutral both need isolation).

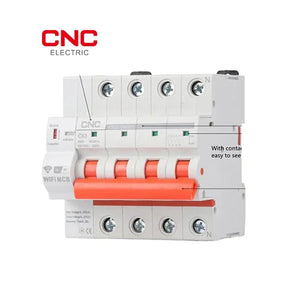

• 4 pole (4P) — Three-phase loads: 3-phase motors, 3-phase tube wells, factories, commercial buildings with 3-phase supply.

Step 2 — Pick the current rating (amps)

• 16A–20A — Light circuits, fans, sockets, single AC up to 1 ton.
• 32A — Larger AC units (1.5–2 ton), medium pumps, geysers, mid-size shops.
• 40A–63A — Whole-house mains for a 2–3 bedroom home, small commercial mains, hybrid solar inverters.
• 100A — Full building mains, tube wells, large commercial loads, 3-phase factory feeders.

Rule of thumb: Choose a breaker rated ~25% above your peak expected load. If your actual pump runs at 25A peak, use a 32A breaker — not a 25A.

Step 3 — Decide on display and 4G backup

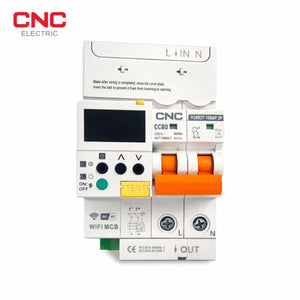

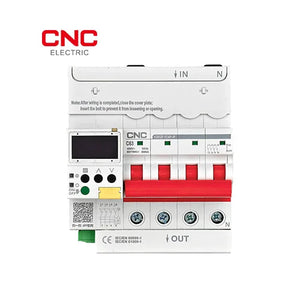

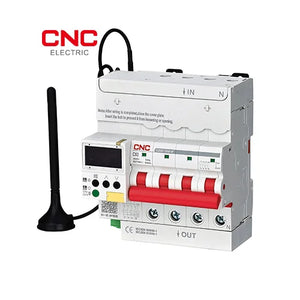

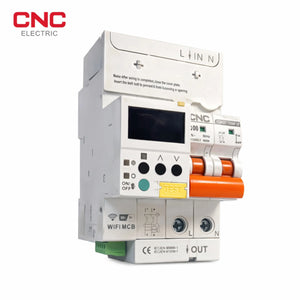

Basic CNC WiFi breakers start at Rs.6,000 and work perfectly for most homes. Upgrade to the display version (around Rs.42,000) if you want a front LCD showing voltage, current, and power usage without opening the app. Choose the 4G + WiFi version (around Rs.47,000–53,500) if the installation location has unreliable internet — the 4G SIM keeps remote control working even when the router is down.

WiFi Breaker Price in Pakistan (2026 CNC Electric Price List)

All WiFi breaker prices include free delivery across Pakistan, COD available, and a 5-year replacement warranty. Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, Quetta — same-day dispatch from our warehouse.

WiFi Breaker Installation Guide (7 Steps)

1. Turn off mains power at the main disconnect or service panel. Never install a breaker on a live circuit.
2. Open your DB box and remove the existing MCB on the circuit you want to make smart. Note the cable routing.
3. Mount the WiFi breaker on the DIN rail using the standard 18mm single-pole slot (or 2/4 slots for 2P/4P). Snap it into place.
4. Connect the wires: line-in on top, load-out on bottom. Double-check polarity on 2P and 4P units — the live + neutral positions matter.
5. Torque the terminal screws properly. Loose terminals are the #1 cause of breaker failure. Use a proper screwdriver, not pliers.
6. Turn mains back on and pair with Tuya/Smart Life app. Hold the pairing button on the breaker for 5 seconds until the WiFi LED blinks, then "Add Device" in the app.
7. Test manually first, then via app. Always verify manual breaker operation works before relying on remote control.

If you are not comfortable working inside a live DB box, hire a licensed electrician. The breaker itself is simple, but panel work near bus bars needs experience.

Applications — Where a WiFi Breaker Makes Sense

• Home automation — Turn off the geyser, AC, or water heater while you're at work. Schedule lights to come on automatically at sunset.
• Tube well / water pump control — Start and stop the pump from your phone. Monitor the motor current in real-time to detect dry running.
• Solar + hybrid inverters — Switch loads to solar hours only, cut loads when battery is low, track per-circuit solar consumption.
• Rental shops & offices — Turn off the whole circuit at closing time to cut the tenant's power at exactly 10pm without being on-site.
• Farmhouses & weekend homes — Kill all power remotely when you leave, turn on AC an hour before you arrive. Get voltage alerts if something goes wrong.
• Factory & industrial — 3-phase WiFi breakers for motor feeders, production line isolation, and remote overnight shutdowns.
• Overload logging — All trips are logged with timestamps in the app. Great for catching unstable loads or intermittent faults.

CNC WiFi Breakers vs Tomzn, Alladin, Mora — What's Actually Different

Several brands sell WiFi breakers in Pakistan. Here is the honest comparison:

• CNC Electric (us) — Authorized Pakistan distributor. 5-year replacement warranty, free delivery, COD, proper after-sales support, all breakers compliant with IEC 60898. Use Tuya Smart or Smart Life app. 8 models from 1P 40A to 4P 100A + 4G backup.
• Tomzn — Good grey-market product, same Tuya ecosystem. Price-competitive but warranty claims can be slow if the importer isn't an authorized distributor.
• Alladin & Omni Cloud — Multi-brand resellers. Convenient for browsing but warranty support is usually forwarded to the original brand, adding delays.
• Mora / SWST / JVCO — Budget entry-level brands. Usually 1-year warranty only, fewer pole/rating options, limited Pakistan service network.

When you buy from CNC Electric Pakistan, you get the device + the warranty + the installation support as a bundle. If your WiFi breaker fails within 5 years, we replace it.

Frequently Asked Questions

What is the cheapest WiFi breaker in Pakistan?

The cheapest WiFi breaker from CNC Electric Pakistan starts at Rs.6,000 for the 1 Pole 40A YCSI model. This is a full MCB replacement with Tuya app control, not a downgraded smart relay.

Can I install a WiFi breaker myself?

Yes if you know how to safely work inside a DB box. The breaker itself snaps onto the DIN rail exactly like a normal MCB. You connect line-in on top, load-out on bottom, pair with Tuya app. If you have never opened a DB box before, hire a licensed electrician for the install.

Does a WiFi breaker work without internet?

Yes. The circuit protection, overload trip, and short-circuit trip all work without WiFi — the breaker is still a physical MCB. Only the remote app control and energy logging need internet. You can also operate the breaker manually with the front switch at all times.

Which app does the CNC WiFi breaker use?

CNC WiFi breakers work with the Tuya Smart and Smart Life apps (both free, available on Play Store and App Store). Both apps support remote control, scheduling, timers, energy meter view, and Alexa/Google Home integration.

Is 2.4GHz or 5GHz WiFi required?

All CNC WiFi breakers need a 2.4GHz WiFi network (not 5GHz). If your router broadcasts dual-band, make sure to connect your phone to the 2.4GHz SSID during pairing, then you can switch back to 5GHz afterwards — the breaker stays connected to 2.4GHz on its own.

Can I use a WiFi breaker with my solar inverter?

Yes. A 2P or 4P WiFi breaker works perfectly with hybrid and off-grid solar inverters. Many Pakistani customers use WiFi breakers to switch heavy loads to solar-only hours, or to cut loads when the battery drops below 30%.

What happens if the WiFi goes down mid-day?

The breaker continues to protect the circuit normally. You just lose remote control until WiFi comes back. For installations with unreliable internet, upgrade to the 4G+WiFi version — it uses a SIM card as a fallback path so remote control keeps working.

What is the WiFi breaker lifespan?

CNC WiFi breakers are rated for 10,000+ manual operations and are designed for 15+ years of service under normal conditions. The 5-year replacement warranty covers manufacturing defects — if the breaker fails from normal use, we replace it.

Can I control multiple WiFi breakers from one phone?

Yes. The Tuya Smart app supports unlimited devices. You can pair as many WiFi breakers as you want — house, shop, farmhouse, office — all in one dashboard with separate naming and scheduling.

Is delivery free in Pakistan?

Yes. Free delivery on all WiFi breakers across Pakistan — Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Multan, Peshawar, Quetta, and all other cities. Cash on Delivery (COD) available. Same-day dispatch for in-stock items.

Related Product Categories

• Circuit Breakers (MCB) — Traditional non-smart breakers for panels that don't need remote control
• AC MCCB Breakers — Higher-capacity molded case breakers above 100A
• Voltage Protectors — Over/under-voltage cutoff devices (pair with WiFi breaker for full protection)
• SPD Surge Protectors — Surge protection for lightning and grid transients
• DB Boxes — Distribution boards to mount your WiFi breakers in
• RCCB / RCBO — Earth-leakage / residual current protection

Ready to order? All WiFi breakers below are in stock at our Lahore warehouse with free delivery Pakistan-wide. Questions about sizing, compatibility, or installation? WhatsApp us directly for same-day support before ordering.
