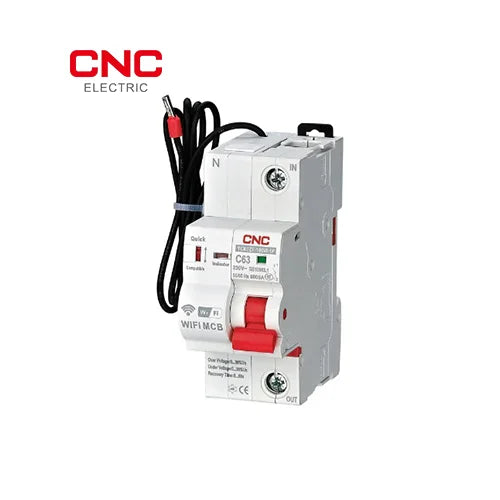

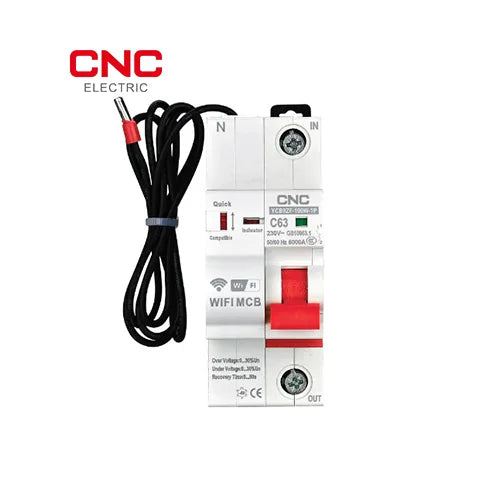

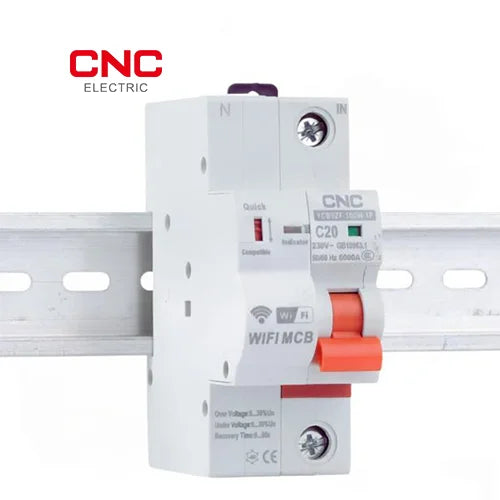

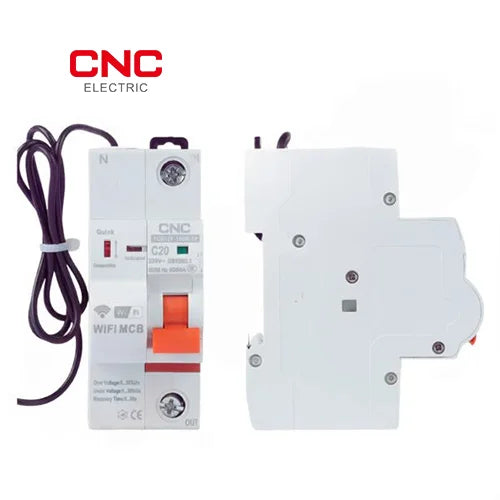

Wi-Fi 1 Pole Circuit Breaker 32A, 63A | Remote Control & App Monitoring

Description
Type：YCB9ZF-100W
Rated current：32A. 63A
Poles：1 Pole
Short circuit breaking capacity：6kA
Mechanical life: More than 20000 times
Electrical life: More than 6000 times
Operating environment temperature：40 ℃~70 ℃

General:

• Data monitoring
• Fault alarm, protection
• Centralized management
• Portable barrier remover
• Handle dangerous situations anytime and anywhere
• Remote control
• Rights management
• Data report

Features:

• Comprehensively protect the safety of human electricity
• Local + remote integrated control + remote leakage self-check
• Operation record can be checked
• Electrical fire monitoring
• Fault early warning
• Overvoltage protection + Underload protection
• Voltage/current imbalance + Fault phase protection
• Rights management
• Automatic reclosing
• Local + remote locking +
• Electricity statistics + Status indication

Under Normal Condition of Voltage Leakage:

• If the device is in the state of breaking, the device will not close automatically, but can only close remotely by controlling the device or manually by local operation.
• If the device is in the closing state, the device will not open automatically, but can only open remotely by controlling the device end or manually open by the device requires local manual operation.

Under Abnormal Voltage Leakage:

• If the equipment is in the closing state, the equipment will automatically open, and voltage is changed to normal.
• If the device is in the opening state at this time, the device will not close automatically. After the voltage returns to normal, the device needs to be manually and locally operated or remotely controlled to close.

Remove Lock:

• After manual on-site troubleshooting, remove the safety lock, push back the safety lock lever, and try to manually operate the closing and opening button once. Is the closing successful?
• If the closing is not successful, check whether the equipment is in arrears or other circumstances to perform the opening.

Safety Lock:

• After manual on-site troubleshooting, remove the safety lock, push back the safety lock lever, and try to manually operate the closing and opening button once. Is the closing successful?
• When the safety lock lever is not pulled out, the equipment is in operation mode: when the safety lock is pulled out, the equipment is in maintenance mode and can be repaired only after a padlock is needed. The safety lock and the mechanical structure of the circuit breaker cannot be closed even if manually or remotely controlled, so as to ensure the personal safety of the maintenance personnel.

Connect with Tuya Smart App

By adding the Wi-Fi breaker to the Tuya Smart App, users can watch and control it from afar. The software lets users turn the breaker on or off from afar, keep an eye on how much energy is being used, and get real-time status reports.
The Tuya Smart App makes things easier and gives smarter control through basic remote features. Users can plan tasks, automate processes, and keep the system safe with these features.
