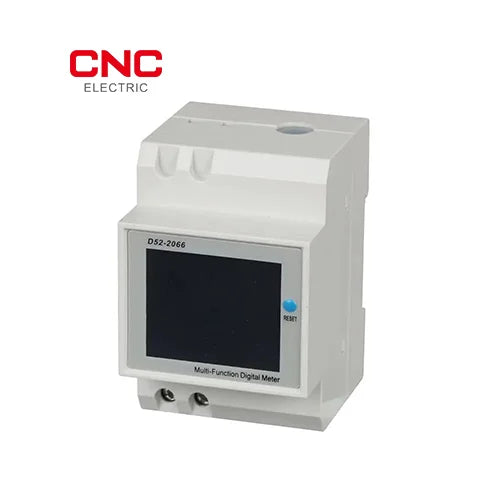

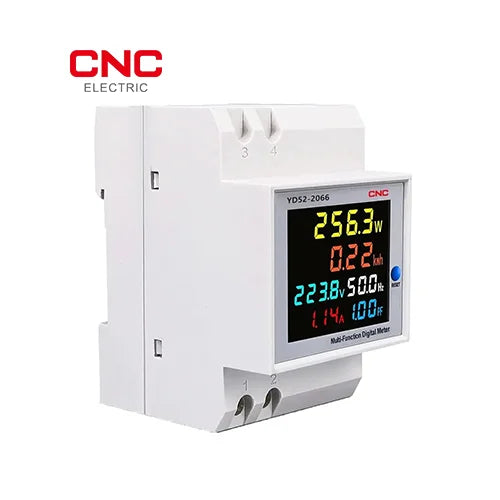

CNC YD52-2066 DIN-Rail Multi-Function Digitial Meter
General YD52-2066 DIN-rail multi-function Digital meter can measure AC voltage, AC current,active power, power factor,frequence and electric...
Vendor:
CNC Electric Pakistan
Availability:
In Stock
- Rs.3,256.00
Rs.3,700.00- Rs.3,256.00
- Unit price
- per
10 customers are viewing this product
Please hurry! Only 10 left in stock
Contact a specialist
Couldn't load pickup availability
General

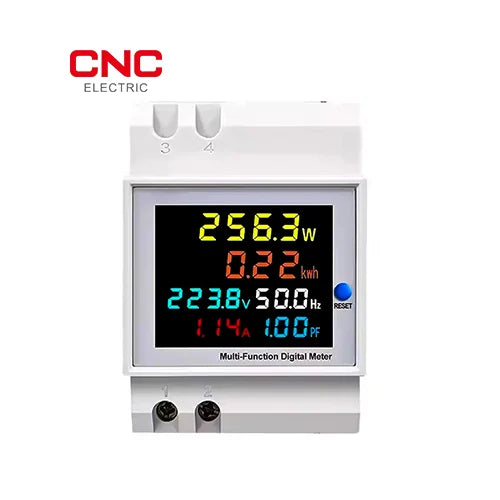

YD52-2066 DIN-rail multi-function Digital meter can measure AC voltage, AC current,
active power, power factor,frequence and electric energy and the same time. The meter
have a colorful,full-view,high definition LCD todisplaythe measure parameters
Technical data
|
Model |
YD52-2066 AC40-300.0V |
YD52-2066 AC200.0-450.0V |
|
Voltage |
AC40.0-300.0V[for 110V 220V] |
AC200.0-450.0V[for 380V 450V] |
|
Current |
AC 0-100.0A, the current resolution is 0.01A |
|
|
Frequence |
45.0Hz-65.0Hz |
|
|
Power factor |
0.00-1.00PF |
|
|
Electric power |
45000W |
|
|
Electric energy |
0-99999kwh |
|
|
Accuracy |
1%±2 words |
|
|
Speed |
2 times per second |
|
|
Installation |
Din-Rail |
|
Note：
The electric power resolution is 0.1W when measure electric power between 0-9999.9w,
otherwise the electric power resolution is 1W.The display of electric energy resolution
is 0.01kwh when measure electric engery between 0-999.99kwh the display of electric
energy resolution is 0.1kwh when measure electric engery between 1000.0-9999.9kwh
and the display of electric energyresolution is 1kwh when measure electric engery larger
than 9999.9kwh.
Application Method
1. Connect the measure voltage to the 1 and 2 terminal.
2. Connections of meter with internal current transformer as graph 1. Make the wire through the hole in the meterand the direction chose arbitrarily.
3. Connections of meter with external current transformer as graph 2. Make the wire through the hole in the meter,and connect the two wires of the secondary transformer to the 3 and 4 terminal.
4. When power on, the meter display the measure parameters.
5. When power on, you can press the button of SAM CK last for 5 seconds, then the electric energy will to be zeroand start to cumulate when release the button. And when power off, the meter can save the value of electric energyand go on cumulatingdata when the meter power-on next.
Attention:The meter can only use for measure 45-65Hz AC city electricity.
