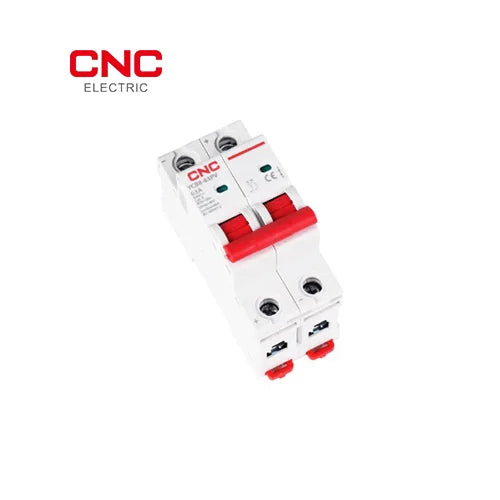

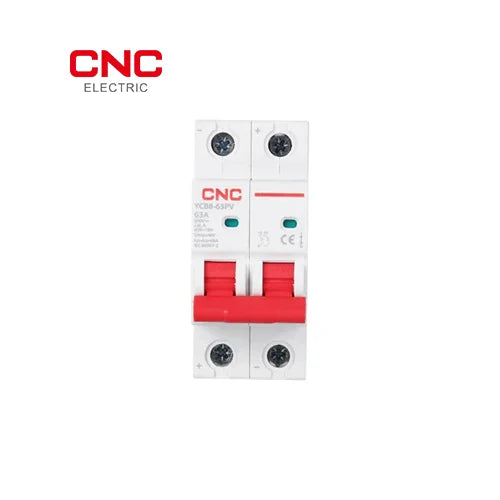

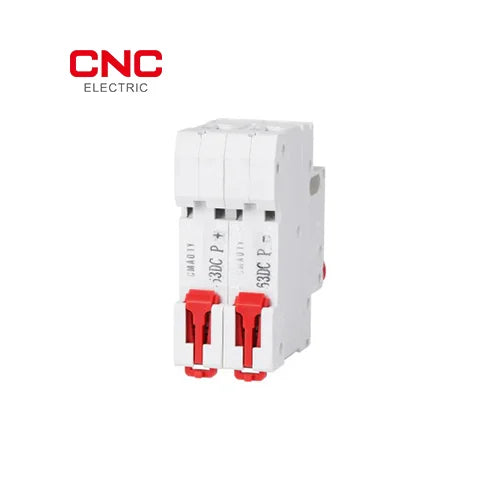

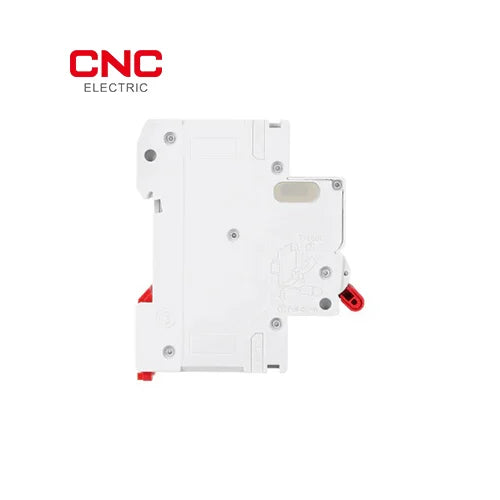

    CNC DC 2 Pole 63A MCB Circuit Breakers 500V YCB8-63PV

    Rs.1,950.00 Rs.1,716.00

    CNC DC 2 Pole 63A MCB Circuit Breakers 500V YCB8-63PV

    Rs.1,950.00 Rs.1,716.00
    AMPERE: 20A

    2 Pole



    General:



    Key Features

    The CNC 2 Pole MCB DC Circuit Breakers YCB8-63PV offer reliable protection and performance for DC systems, ensuring safety and efficiency in various applications.

    1. High Voltage & Current Capacity
      Designed to handle a rated operating voltage up to DC500V and current up to 63A.

    ○      Ideal for isolation, overload, and short circuit protection.

    ○      Suitable for photovoltaic, industrial, and communication systems.

    1. Compact Modular Design
      Features a small, space-saving design for easy integration.

    ○      Standard DIN rail installation for quick setup.

    ○      Flexible wiring options to meet diverse customer needs.

    1. Advanced Protection Capabilities
      Provides overload, short circuit, and isolation protection.

    ○      Breaking capacity of 6KA for strong protection.

    ○      Electrical life of 10,000 cycles, matching a 25-year lifecycle of photovoltaic systems.

    1. Comprehensive Accessory Options
      Expandable with auxiliary contacts, alarm contacts, and shunt releases.

    ○      Compatible with various configurations for enhanced functionality.

    ○      Supports multiple inline methods for versatile installations.





    The CNC DC Circuit Breakers YCB8-63PV are engineered for reliable operation in diverse environments, offering robust safety and performance.

    ●      Wide Application: Suitable for photovoltaic systems, industrial, residential, and communication setups.

    ●      Environmental Compatibility:

    ○      Working temperature: -35°C to +70°C

    ○      Storage temperature: -40°C to +85°C

    ○      Altitude: Derating above 2000m

    ○      Pollution degree: Level 3

    ●      Ease of Installation:

    ○      DIN35 standard rail mounting

    ○      Wiring capacity: 2.5–25mm²

    ○      Terminal torque: 3.5 N·m













    Specification

    Details

    Standards

    IEC/EN 60947-2

    Number of Poles

     2 Pole

    Rated Current In (A)

     20A, 32A, 40A, 63A

    Rated Working Voltage Ue (V DC)

    500V

    Rated Insulation Voltage Ui (V DC)

    1200

    Rated Impulse Voltage Uimp (kV)

    4

    Ultimate Breaking Capacity Icu (KA, T=4ms)

    Pv: 6, PVn:

    Operation Breaking Capacity Ics (KA)

    Ics = 100% Icu

    Tripping Type

    Type B, Type C, Type K, Thermomagnetic

    Curve Type

    B, C, K

    Mechanical Life

    20,000 times

    Electrical Life

    PV: 1500, PVn: 300

    Polarity

    Heteropolarity

    Alarm Contact

    Available (□)

    Auxiliary Contact

    Available (□)

    Shunt Release

    Available (□)

    Inline Methods

    Can be up and down into the line

    Working Temperature ()

    -35 ~ +70 (with storage -40 ~ +85)

    Storage Temperature ()

    -40 ~ +85

    Altitude (m)

    Use with derating above 2000m

    Protection Degree

    IP20

    Installation Category

    Category II, Category III

    Pollution Degree

    Level 3

    Moisture Resistance

    Yes

    Installation Environment

    Places without significant vibration/impact

    Installation Method

    DIN35 standard rail

    Wiring Capacity

    2.5-25mm²

    Terminal Torque

    3.5 N·m
