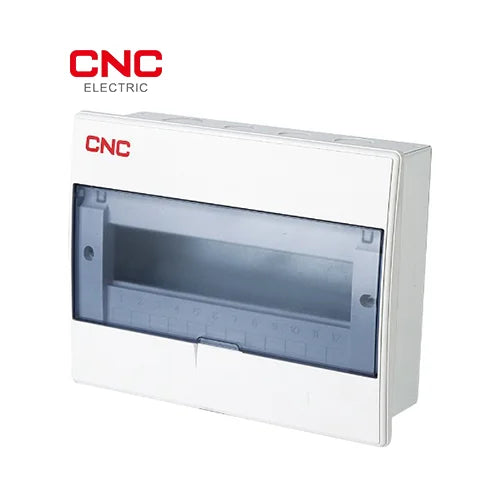

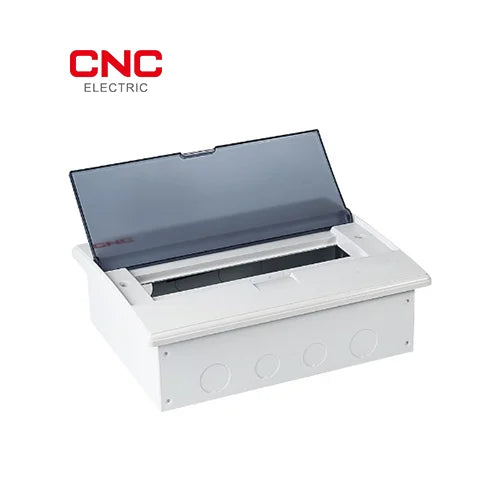

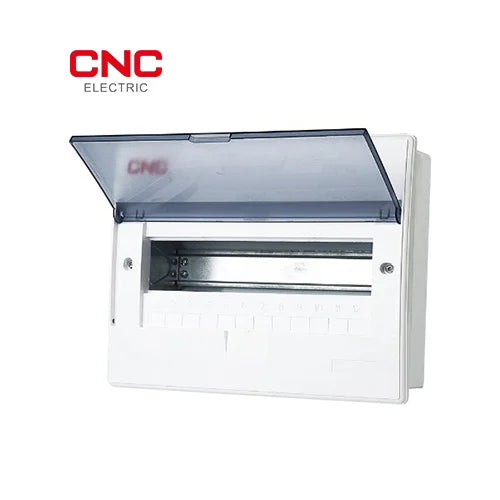

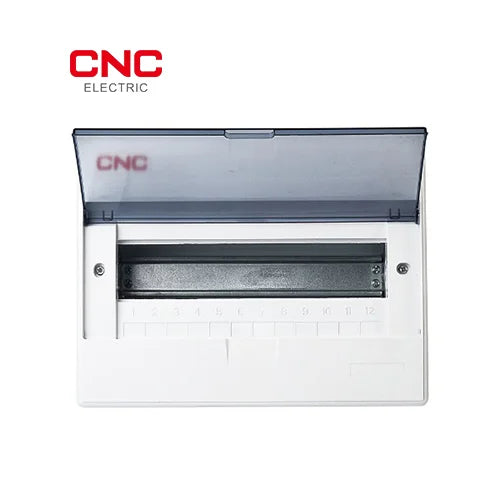

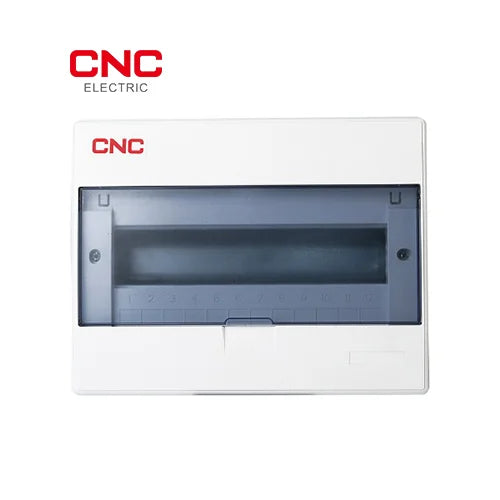

Steel Body 9, 12, 16, 20, 24 Way Distribution Box YCX6 – Surface Mount Design Boxes

General:

The DB Box YCX6 is applicable to residential buildings or places for non-professional people to enter, and it includes control equipment and signal equipment.

It is suitable for circuits with alternating current, where the nominal voltage to earth does not exceed 380V, and the output circuit has a short circuit protection function.

When the total input load current does not exceed 125A, the rated current of each short circuit protection device shall not exceed 63A.

This product features a plastic cover and metal box, making it a reliable Steel Body Distribution Box.

It is primarily used in conditions requiring secure and efficient circuit management.

DB Box Key Features

The CNC Steel Body Distribution Box YCX6 is a versatile and reliable solution for safe and efficient power distribution. Its robust design and functionality make it ideal for various residential and commercial applications. For over and under voltage protection, add a voltage protector to your board.

●      Secure Circuit Management:

Designed to provide effective protection with short circuit and overload safety mechanisms. It ensures uninterrupted power management in critical situations.

○      Short circuit protection up to 63A.

○      Overload safety for circuits up to 125A.

●      Modern Design and Versatility:

A sleek and stylish appearance suitable for high-end residences, hotels, and office buildings.

○      Combines a durable steel body with a plastic cover.

○      Enhances the decor of modern interiors.

●      Flexible Installation Options:

Specifically designed for surface and flush mounting, catering to diverse installation needs.

○      Easy integration into construction and renovation projects.

○      Adaptable for both residential and commercial setups.

●      High Durability and Longevity:

Built to withstand demanding conditions while maintaining peak performance.

○      Corrosion-resistant materials.

○      Long-lasting and reliable in varied environments.

 General

The CNC YCX6 Steel Body Distribution Box is designed to cater to modern power distribution needs. With its robust steel structure and plastic cover, it offers a seamless blend of durability and aesthetics. Ideal for residential and commercial environments, it supports safe and efficient circuit management, ensuring reliable power supply at all times.

Distribution Box Specifications

●      YCX6-12: 295×230×75 mm (Surface), 270×210×75 mm (Flush)

●      YCX6-16: 360×230×75 mm (Surface), 340×210×75 mm (Flush)

●      YCX6-20: 438×230×75 mm (Surface), 413×210×75 mm (Flush)
