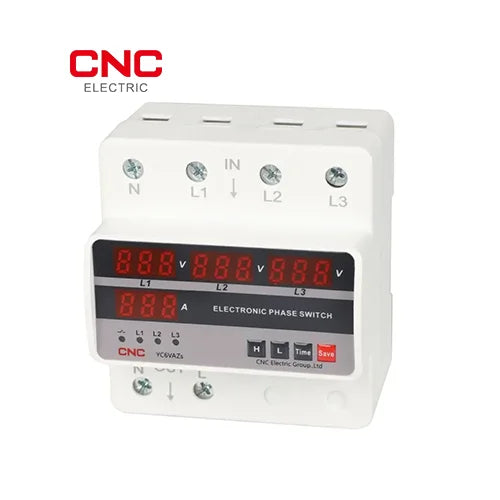

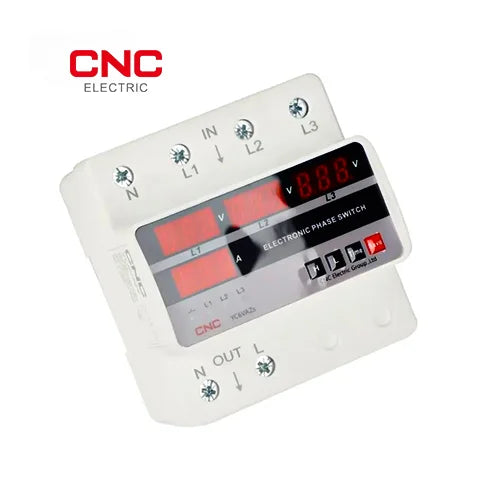

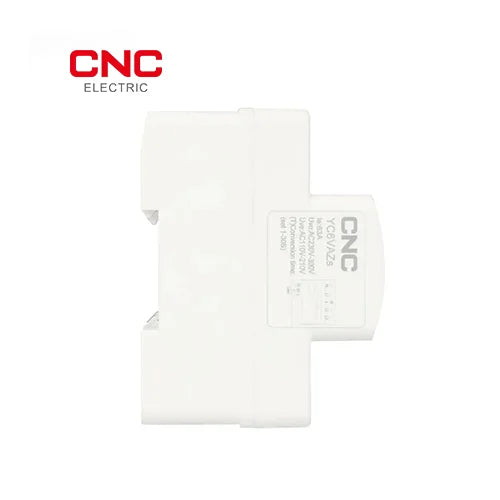

3 Phase YC6VAZs Electronic Phase Switch
3 Phase YC6VAZs Electronic Phase Switch
3 Phase YC6VAZs Electronic Phase Switch

CNC 3 Phase YC6VAZs Electronic Phase Switch

Product Details General Function   description: When   a   phase   of   L1,L2,L3   overvoltaged,undervoltaged   or phase lacked,the relay will be...
Availability: Out Of Stock
Rs.10,800.00
Rs.10,800.00
10 customers are viewing this product
Please hurry! Only 0 left in stock
Ampre: 63A
Subtotal: Rs.10,800.00
Why Shop With Us?
Chat

Contact a specialist

    3 Phase YC6VAZs Electronic Phase Switch

    CNC 3 Phase YC6VAZs Electronic Phase Switch

    Rs.10,800.00

    CNC 3 Phase YC6VAZs Electronic Phase Switch

    Rs.10,800.00
    Ampre: 63A

    Product Details

    General

    Function   description: When   a   phase   of   L1,L2,L3   overvoltaged,undervoltaged   or phase lacked,the relay will be disconnected and automatically search for the normal phase,and   switch   to    open   the    relay   of   the    normal   phase,switching    priority L1>L2>L3!

    Technical Date

    Model

    YC6VAZs

    Rated Supply voltage

    AC 220V

    Operation voltage

    AC 80V-400V(single phase)

    Rated frequency

    50/60Hz

    Electric current(>A)setting range

    63A/80A/100A

    Overyoltage(>U)setting rang

    230-30

    Undervoltage(<U)setting range

    110-210V

    Reset/start delay

    =30S

    Voltage measurement accuracy

    2%(Not exceeding 2%of the overall range)

    Rated insulation voltage

    400

    Output contact

    1N0

    Electrical life



    Mechanical life

    10⁶

    Protection degree

    P20

    Pollution dearee



    Altitude

    7000o

    Operatintg temperature

    50~55

    Humidity

    <50%at 40(withou  condensation)

    Storage temperature

    30 70

    Current Specification

    63A

    0A

    00A

    Rated Operating current(In,A)

    53



    OA

    Max Operating Current Imax(A,within 10min)







    Max power of load (KW)

    13.9KW

    17.6KW

    22KW



    Default Setting



    Technical Parameter

    Setting range

    Step

    Factory Setting

    Over-voltage protection value

    AC230V-300V

    V

    AC270V

    Under-voltage protection value

    AC210V-140V

    1V

    AC170V

    Recovery delay time

    1S-30S

    1S

    1S



    Function Setting

    Overall and mounting dimensions
