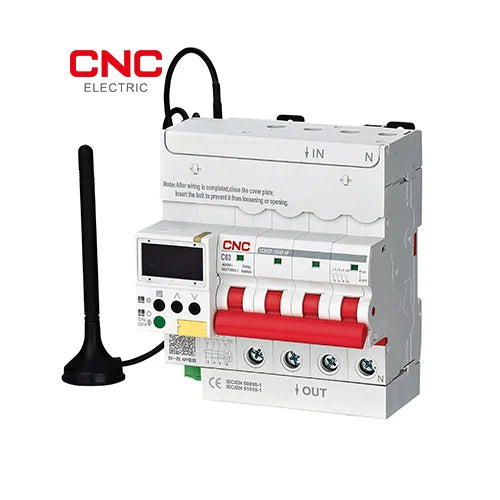

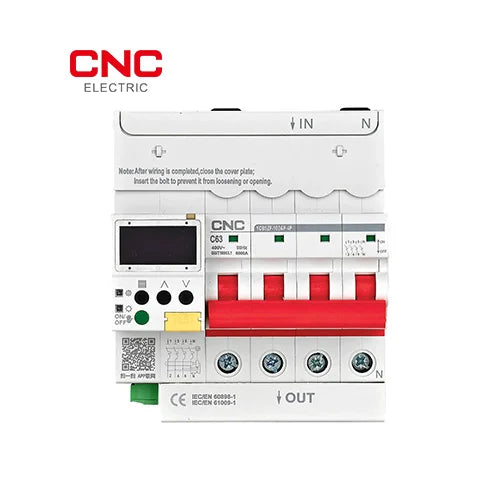

Wi-Fi 4 Pole 4G 100A Smart Circuit Breaker | With Display & Advanced Protection

Seiko design, Cloud control, GPRS connection, small volume, High breaking
ability, flame-resistant material, Energy conservation and environment
protection, international standard, All-round service.

● Data monitoring
● Fault alarm, protection
● Centralized management
● Analysis of energy consumption
● Portable barrier remover
● Handle dangerous situations anytime and anywhere
● Remote control
● Rights management
● The regional search
● Data report
● Remote location + diagnosis

35 Powerful Features

Comprehensively protect the safety of human electricity
● Local + remote integrated control Local + remote leakage self-check
● Operation record can be checked
● Electrical fire factor monitoring
● Fault early warning
● Fault location/fault alarm
● Tripping protection
● Over undervoltage protection
● Overload protection
● Over temperature protection
● Open phase protection
● Voltage/current imbalance
● Fault phase protection
● Preventing electricity-stolen
● Maintenance and overhauls closed by mistake
● Current limit
● Scene mode
● Line timing
● Rights management
● Automatic reclosing
● Generate report analysis automatically
● Local + remote locking
● The leakage protection current can be adjusted
● Custom warning thresholds
● Short circuit protection
● Power contrast
● Troubleshooting advice
● Fault cause recording
● Conditional linkage control
● Centralized management
● Power factor calculation
● Historical data import
● Electricity statistics
● Chart simulation display
● Status indication

 The Changeover Switch can switch on, Load and break the circuit under normal
conditions, using as Switch Disconnectors.
Standard: IEC 60947-5-1

Basic functions and features

● OLED lattice LIQUID crystal display has long life and good low temperature
characteristics;
● Can be set as a communication gateway, through the ontology 485 interface for
the branch small current switch combination networking;
● It integrates multiple protection functions such as over voltage, under voltage,
missing phase, wrong phase, loss of voltage, overload, short circuit, leakage,
temperature, voltage/current imbalance, over power, under power, anti-power
theft and so on into one, and supports early warning in accordance with the preset
proportion;
● Multiple functions can be closed, alarm, trip any combination, more widely
applicable;
● Support 12 months frozen electric energy and 7 days frozen electric energy query,
let the remote energy management more convenient;
● Electric parameters such as active power, reactive power, apparent power and
power factor are supported for collection and uploading;
● Support positive and negative energy statistics.
● RS485 in non-gateway mode supports DL/T-645/Modbus protocol and automatic
conversion;
● Support external dry contact control, cabinet door control;
● Support multiple groups of any time timer control closing, opening operation, so
that the control more arbitrary;
● Multi-component modular design, optional collocation, more flexible use
● Remote wireless communication technology, supporting 2G, 4G, Ethernet, Wi-Fi,
Bluetooth  MQTT and other communication modes;
● Operation event alarm event failure event real-time reporting, so that you can
know your equipment running state anytime and anywhere; The alarm can be
accompanied by a buzzer prompt, and can be muted remotely or locally, making
the device alarm more intelligent;
● Support a variety of remote OTA upgrade mode, so that equipment upgrade
maintenance no longer trouble;
● Hundreds of local event records (power on, power off) are stored, which can be
checked at any time for accident cause analysis;
● The clock is timed and synchronized on the cloud to ensure the accuracy of event
recording time. The daily error is no more than 1S in the case of no network;
● Real-time statistics of the number of events can focus on frequent abnormal,
support switching display in Chinese and English;
● Support 12 months frozen electric energy and 7 days frozen electric energy query, let the remote energy management more convenient;
● Electric parameters such as active power, reactive power, apparent power and power factor are supported for collection and uploading;
● Support positive and negative energy statistics.
