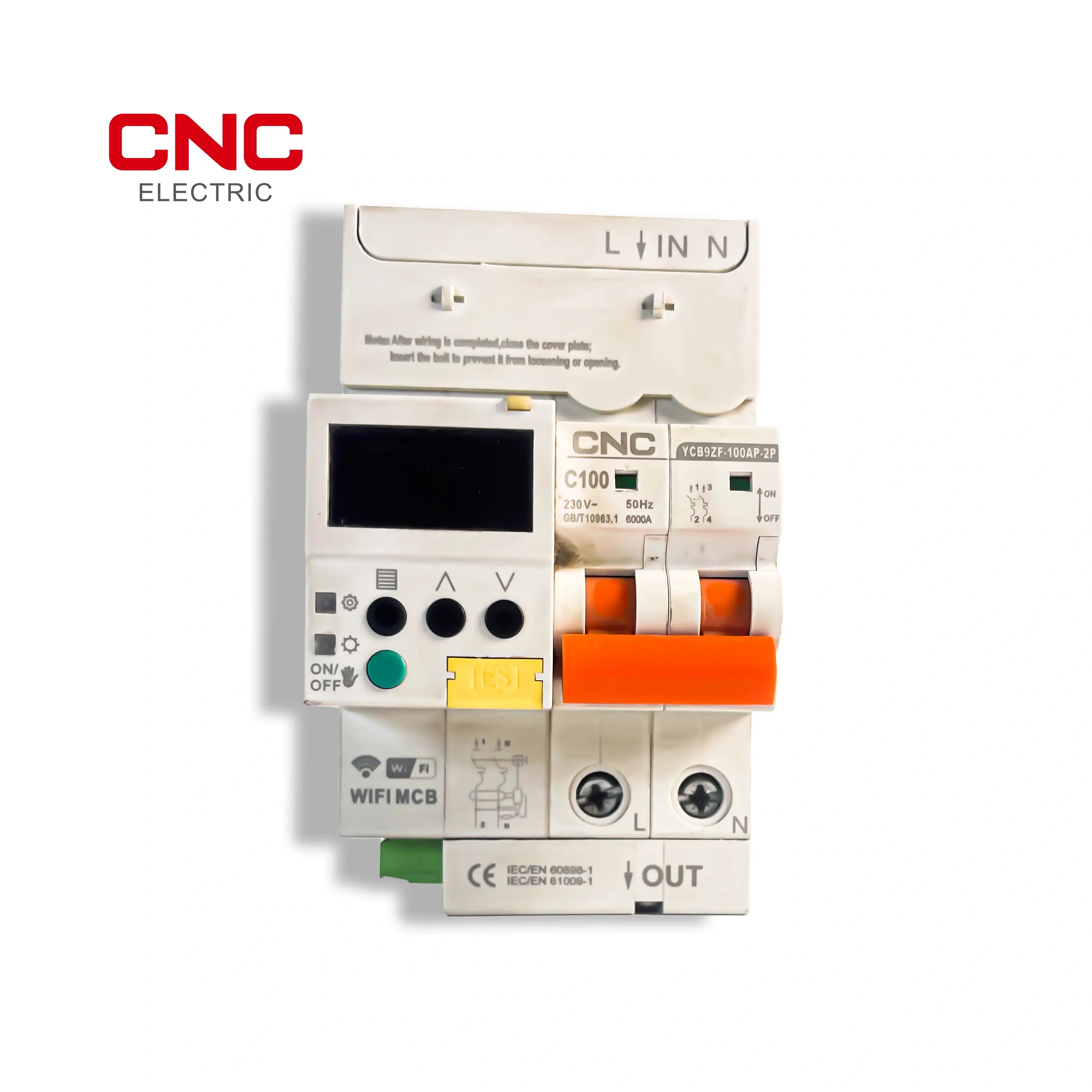

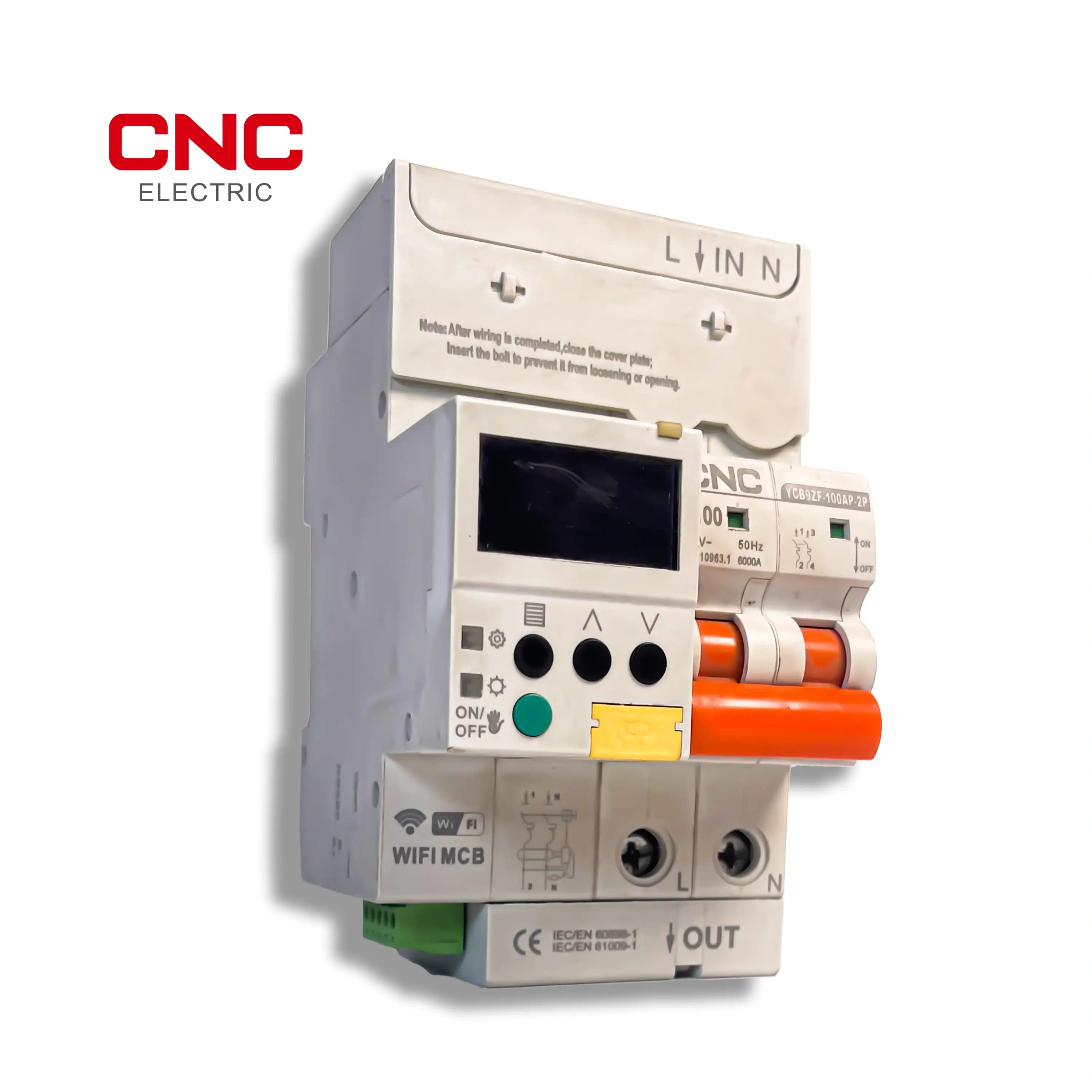

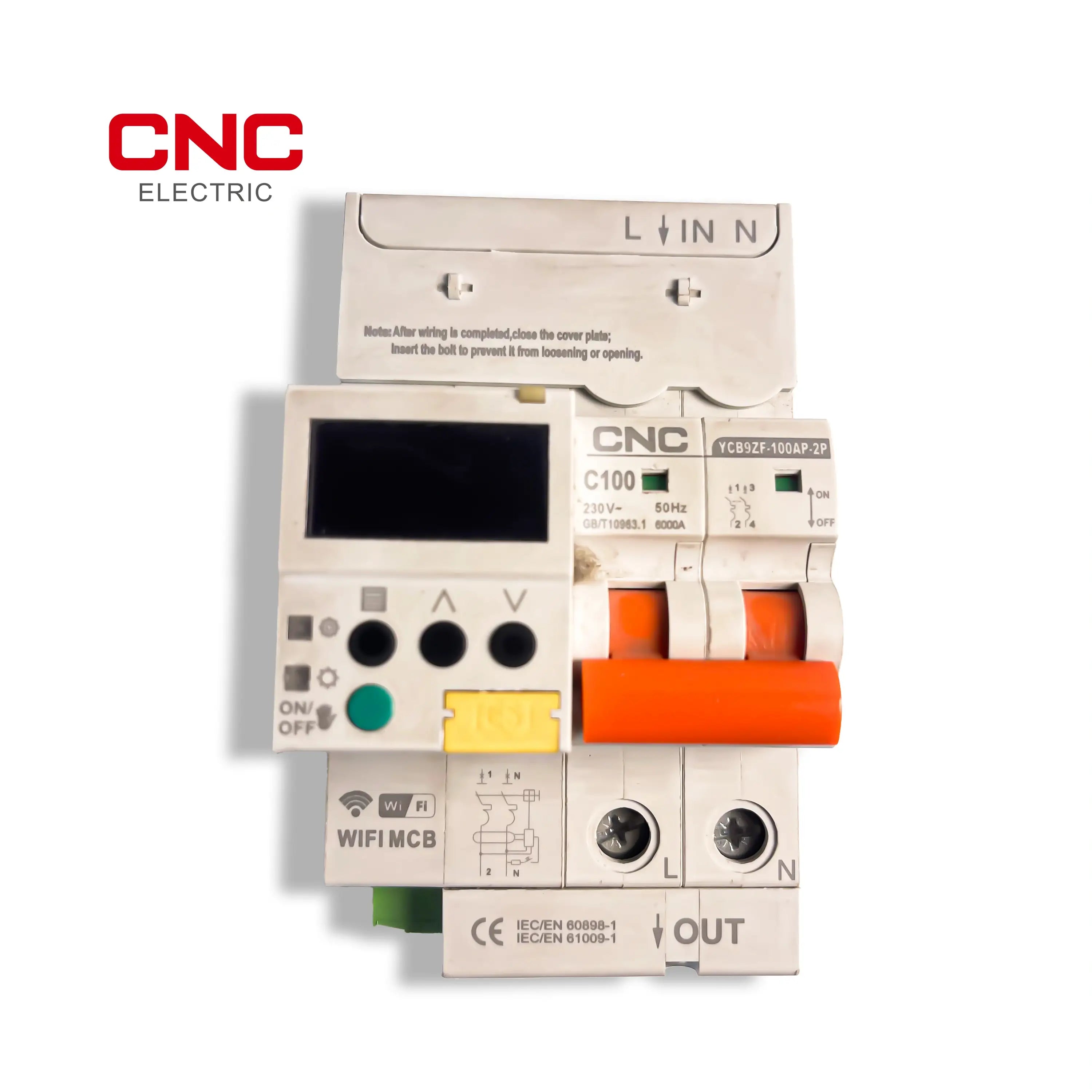

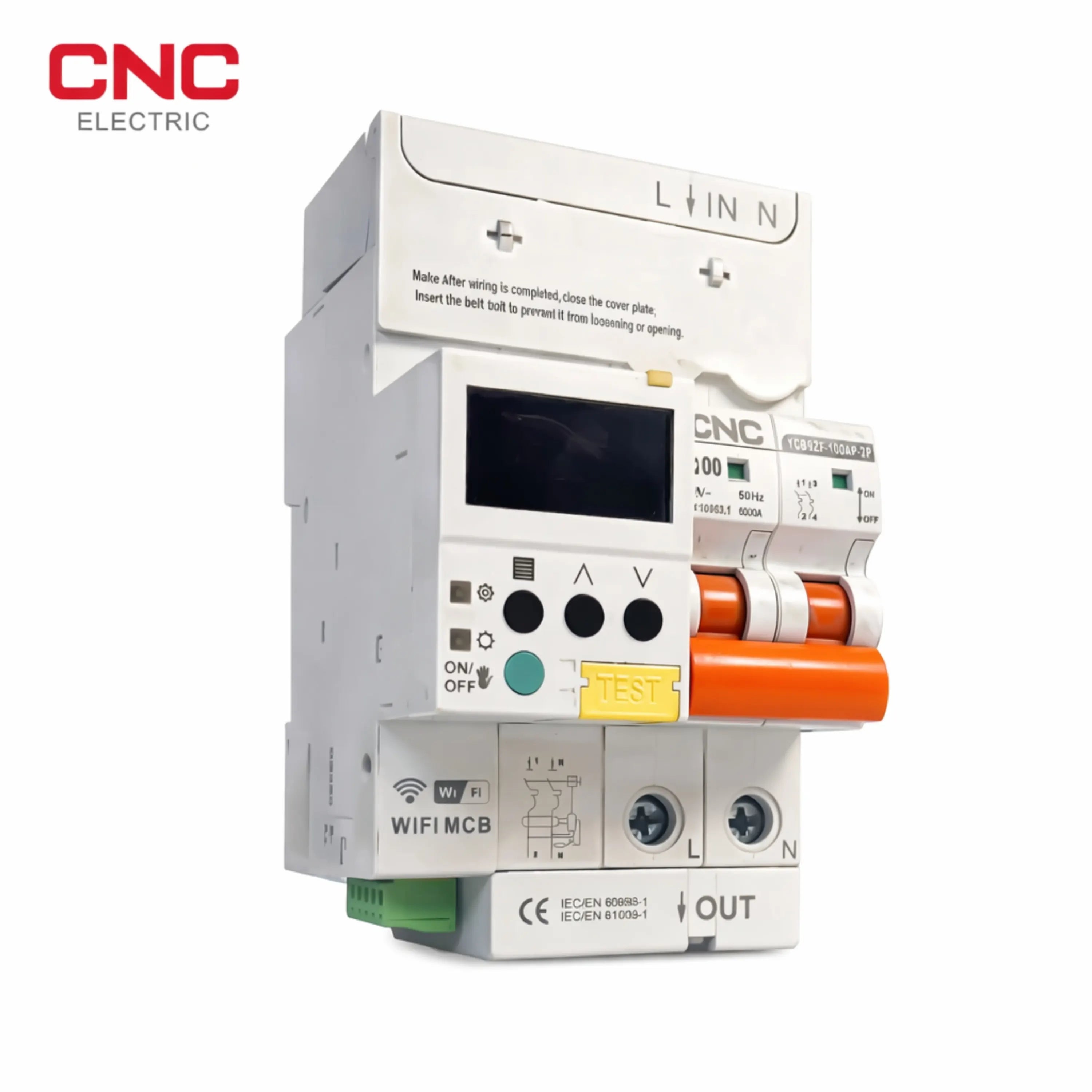

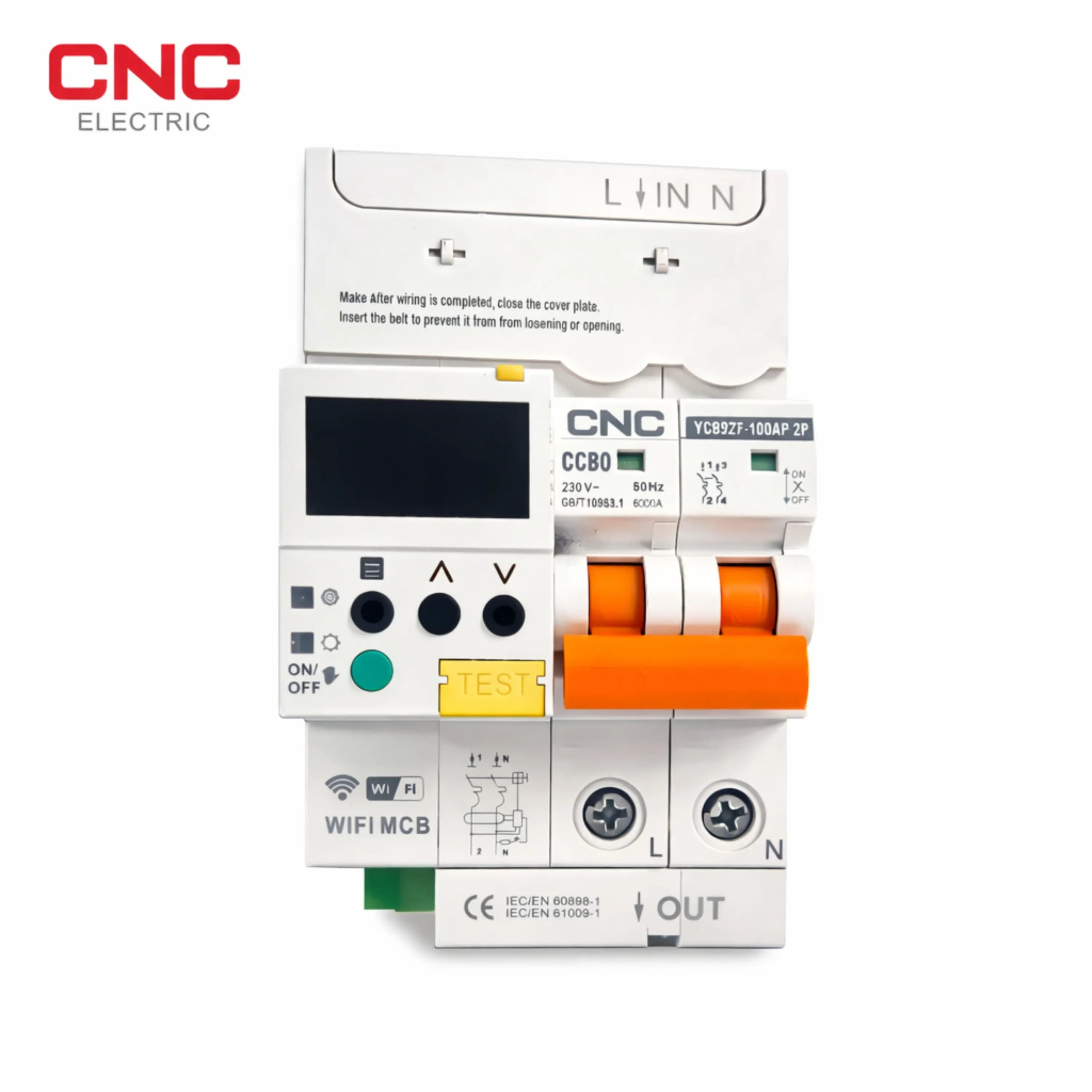

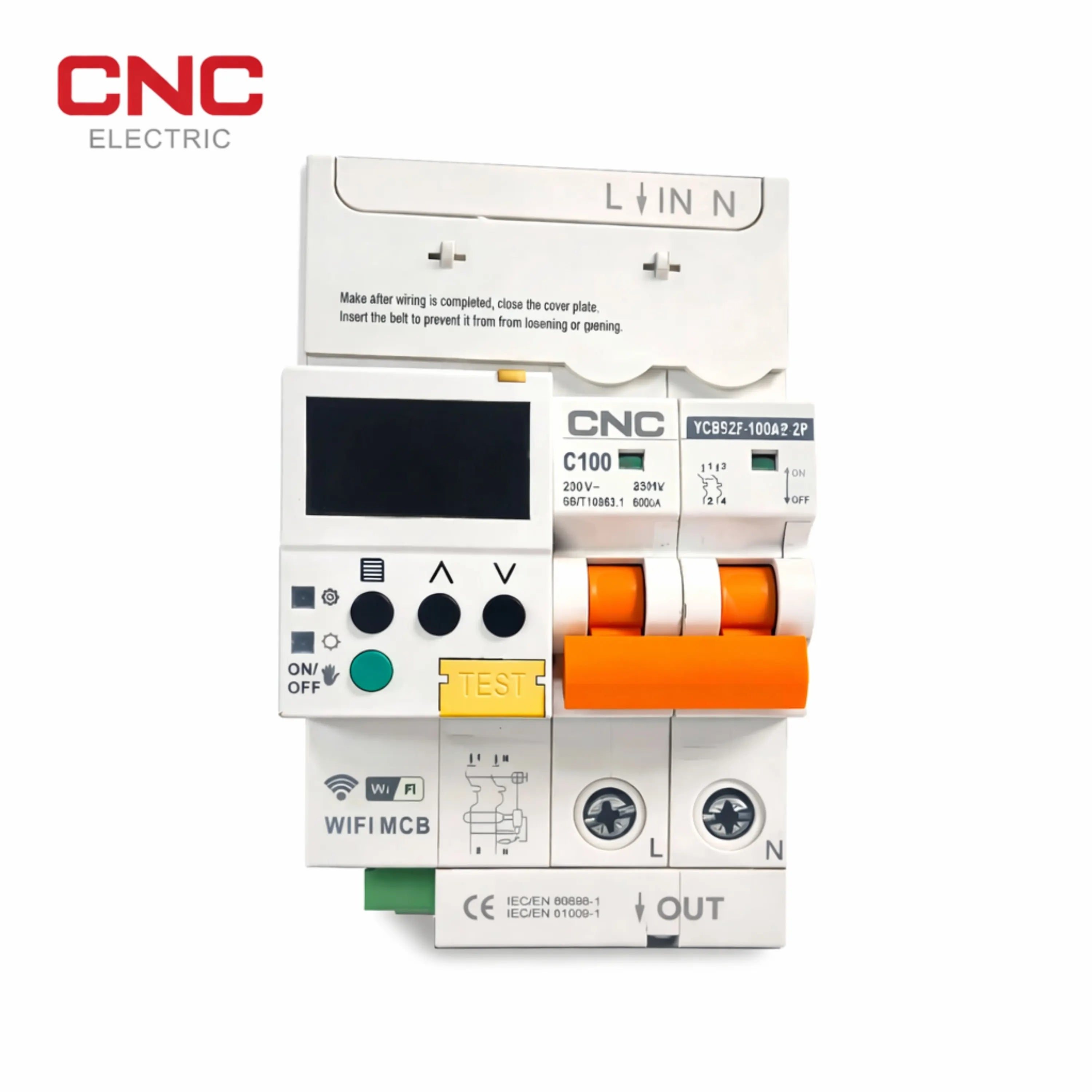

WiFi 2 Pole Smart Breaker 100A | Display

This 2 pole WiFi display breaker is listed in Pakistan at Rs.42,000 and is built for buyers who want remote control plus live electrical feedback in one device. CNC Electric Pakistan offers this smart breaker for users who want app-based switching, on-device LCD visibility, and breaker-style protection on a single 2-pole 100A line. It suits higher-load circuits where a normal breaker gives protection but no monitoring.

Key Features

• 2 pole smart breaker for heavier single-phase line control
• LCD display on the unit for direct viewing without opening another meter page
• Remote WiFi control from mobile app
• Real-time voltage, current, and power-use visibility
• Protection: overload, short-circuit, leakage
• DIN-rail mounting for panel-based electrical work

Technical Specifications

Exact short-circuit capacity, app ecosystem name, full dimensions, and wiring diagram are not currently listed on the live product page and have not been guessed.

Variant & Price (Live on Shopify)

Single variant. For simpler 2P without display see the WiFi 2P 63A (Rs.8,500). For 4P with display see the WiFi 4P Display 100A (Rs.43,500).

Applications

This device is for higher-load single-phase circuits that benefit from both protection and visible monitoring. Generator-connected office circuits, large inverter-fed lines, heavy backup branches, commercial signage, water pumps, and backup-room lines where remote switching saves site visits.

How to Choose

What This Product Does NOT Protect Against

It does not replace a proper SPD, voltage protector, or RCD strategy. It does not fix poor earthing, undersized cable, generator instability, or lightning/surge events. A smart breaker is not a substitute for proper circuit architecture.

Installation Guide

1. Mount on DIN rail inside a clean enclosure with space for safe wiring and ventilation.
2. Confirm line use and 2P switching format before final connection.
3. Keep upstream and downstream protection logic clear — do not wire as a casual gadget.
4. Complete app/network setup only after the electrical side is verified.
5. Test local operation, remote operation, display reading, and load response before handover.

Related Products

• Surge Protection Devices
• Voltage Protectors
• DB Boxes
• WiFi Smart Breakers

FAQs

Price?
Rs.42,000 for the 2P 100A WiFi smart breaker with LCD display.

Why more expensive than a normal WiFi breaker?
Because this is the display-led higher-end option. The cost covers the added monitoring and control layer.

Shows live voltage and current?
Yes — the LCD gives real-time voltage, current, and energy consumption.

Replaces SPD and voltage protector?
No. Pair with the correct SPD and voltage protector where site conditions need them.

Better than a smart plug?
For serious board-mounted work, yes — a smart plug is not the right class for higher-load circuits inside a DB.

For price confirmation, stock status, and selection help, WhatsApp 0326-1111376. Orders above Rs.10,000 qualify for free delivery.

📖 Related Reading: WiFi Smart Breaker vs Normal MCB Pakistan | CNC Electric — In-depth guide on this product category.
Helpful for understanding sizing, installation, and choosing the right model for your Pakistan setup.
