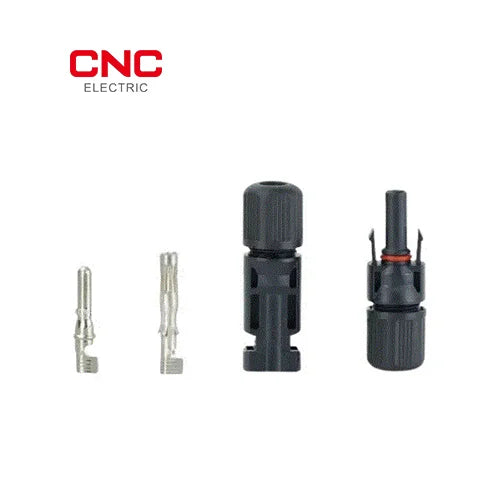

MC4 Connector Normal Pin 4mm² / 6mm² | 1000V, 1500V Solar PV
- Rs.150
- Rs.150
- Unit price
- per
Couldn't load pickup availability
Pick your cable size, then your system voltage. Normal pin = stamped crimp contact, the everyday installer choice for solar strings.
Want a machined solid contact instead? See the MC4 Solid Pin 6mm 1500V.
Want a machined solid contact instead? See the MC4 Solid Pin 6mm 1500V.
Which one do I need?
| Your PV cable | Your system | Choose |
|---|---|---|
| 4mm² solar cable | Strings up to 1000V DC | 4mm² · 1000V |
| 4mm² solar cable | Strings up to 1500V DC | 4mm² · 1500V |
| 6mm² solar cable | Strings up to 1000V DC | 6mm² · 1000V |
| 6mm² solar cable | Strings up to 1500V DC | 6mm² · 1500V |
The cable size must match: a 4mm² contact will not grip 6mm² cable properly, and a loose crimp heats up on the roof.
Specifications
| Contact pin | Φ4mm, stamped (normal pin), copper alloy, tin plated |
| Cable size | 4mm² or 6mm² (choose above) |
| Rated current | 30A on 4mm² and 6mm² cable |
| Rated voltage | 1000V DC or 1500V DC (choose above) |
| Test voltage | 6kV, 50Hz, 1 minute |
| Protection | IP67 when mated · IP2X touch-safe when unmated |
| Contact resistance | 0.5 mΩ |
| Temperature | −40°C to +90°C working · +105°C upper limit |
| Housing | PC/PPO, flame class UL94-V0, snap-in lock |
| Salt mist test | IEC 60068-2-52, severity 5 |
Source: CNC Electric PvT photovoltaic connector technical data.
How to fit
- Strip 7–8 mm of insulation; don't nick the copper.
- Crimp the contact with an MC4 crimping tool (pliers give a weak joint).
- Push the contact into the housing until it clicks; pull gently to check.
- Tighten the cable nut with an MC4 spanner, then click male and female together.
- Keep polarity marked: male and female on the right cable every time.
Join CNC to CNC. Mixing connector brands on one joint is a common cause of hot joints and melted connectors.
FAQs
Normal pin or solid pin?
Normal pin has a stamped contact and is the economical everyday choice. Solid pin has a machined contact. Both are 30A connectors; pick the one your installer prefers.
Can I use the 1500V version on a 1000V system?
Yes. A connector rated 1500V DC works on any system up to 1500V. A 1000V connector must not be used above 1000V.
How do I know my cable size?
It is printed on the cable jacket, for example "PV1-F 1×4mm²" or "1×6mm²". See our 4mm and 6mm DC cable.
Bulk or installer order? WhatsApp us at 0326-1111376.
Returns & Refunds
- Return within 7 days of delivery: unused, in original packaging, with invoice.
- Damaged, defective or wrong item? Tell us within 72 hours on WhatsApp +92 326 1111376. We pay return shipping if the mistake is ours.
- Refund after inspection, within 5–7 working days, to your original payment method.
- 5-year replacement warranty on breakers for manufacturing defects. Keep the original box: warranty claims need it.
Shipping
- Delivery across Pakistan by courier, usually 3–5 business days after dispatch.
- Cash on Delivery in most cities; bank transfer, Easypaisa and JazzCash also accepted.
- Free delivery on orders over Rs. 10,000.
Full details: Refund policy · Shipping policy
