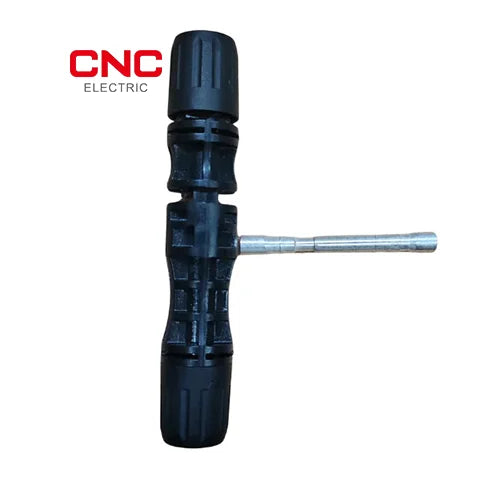

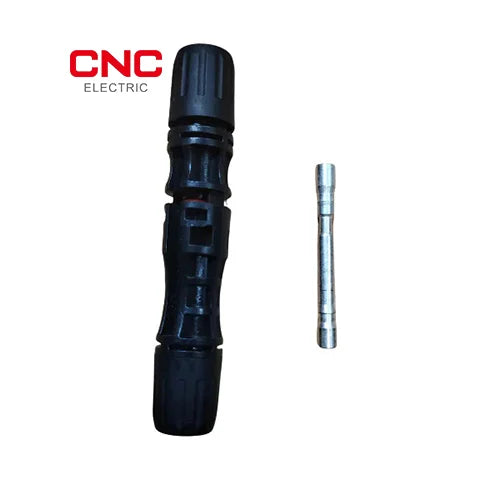

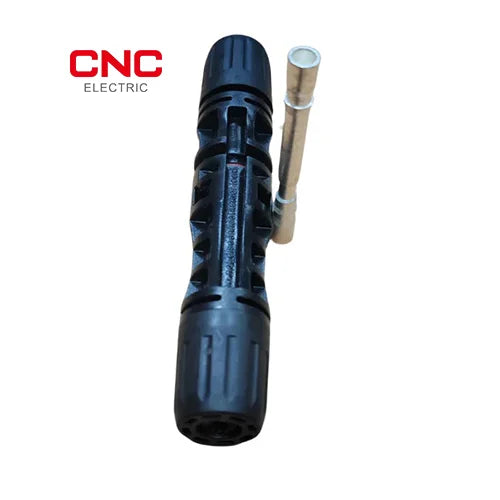

MC4 Connector Solid Pin 6mm 1500V | Reliable Solar PV Connection

MC4 connector 6mm solid pin is a premium solar panel connector for larger PV cable runs and higher-current rooftop work in Pakistan. This CNC Electric Pakistan connector is made for 6mm cable, offers a stronger solid pin contact than a normal pin, and is available in 1000V and 1500V options for modern solar systems. Starting from Rs.260, it is a practical upgrade for installers who want lower contact resistance, lower heat build-up, and better long-term reliability on systems powering ACs, fridges, water pumps, UPS charging, and solar inverters in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar.

Quick Specs

What This Product Does

This mc4 connector joins solar cables in a weather-resistant locking format that installers already know, but the big difference here is the solid pin. A solid pin typically gives more stable contact resistance than a normal pin, which means less chance of small hot spots developing over time. On a solar system, that matters because connectors sit under sun, dust, moisture, and daily temperature cycling for years.

If you are using 6mm DC cable, this connector is usually a better match than a 4mm option. Thicker cable helps reduce voltage drop on longer runs, so the 6mm solid pin version is often preferred on larger rooftops, longer string extensions, and commercial sites where installers want a cleaner margin on current handling. It does not directly run a 1 ton AC, 1.5 ton AC, 2 ton AC, fridge, washing machine, or geyser, but it is part of the solar wiring path that allows the inverter to feed those loads safely.

Buyers searching for mc4 connector, mc4 connector price in pakistan, mc4 6mm solid pin, solar connector 6mm, or pv connector 1500v usually need one of three things: better cable compatibility, lower heating risk, or a more durable DC joint. If you only need a standard low-cost option for 4mm cable, see the MC4 4mm normal pin. If you want built-in overcurrent protection, look at the MC4 connector with fuse.

Why 6mm Solid Pin Is Better for Larger Solar Systems

Pakistani solar buyers often focus on panel wattage and inverter size, but the small connection parts can decide whether the DC side remains cool and dependable. With a 6mm cable system, a connector that properly suits the cable size helps reduce unnecessary resistance. On longer cable runs this can mean less voltage drop and less wasted power. The solid pin design is also attractive where installers want a more robust contact point that stands up well to repeated temperature changes.

For homes and commercial roofs where solar is feeding daytime loads like ACs, bore motors, routers, refrigerators, lighting, office electronics, and UPS charging, it is worth using matching quality parts across the whole chain. That means correct DC cable 4mm/6mm, proper MC4 connectors, correct disconnection through DC 2P MCB 500V, and surge protection through DC SPD 1000V. The solar DB box guide is useful if you want to see how these parts fit together.

Selection Guide

How to Install

Correct crimping is essential. Even a good connector can fail if the cable is stripped badly or the gland is left loose.

• Confirm that your cable is 6mm and that the selected connector variant matches your system voltage.
• Strip the cable carefully and crimp the solid pin using the proper PV crimping tool.
• Insert the crimped pin fully into the connector housing until it locks correctly.
• Tighten the rear gland so the seal grips the cable jacket and maintains the IP67 waterproof performance.
• Check polarity, continuity, and mechanical locking before energizing the string. Always use a licensed electrician or trained solar installer.

What This Product Does NOT Protect Against

This product is a connector, not a protection device. It does not protect against lightning surges, so use a DC SPD where surge risk exists. It does not protect against string overcurrent, so use a DC fuse holder with a suitable DC fuse or a DC breaker. It does not isolate the array like a DC isolator and it does not protect AC loads such as ACs, geysers, water pumps, fridges, or washing machines directly.

In other words, the connector makes a safe physical electrical joint. Protection still comes from the rest of the system design, including solar bundles, DB boxes, DC circuit breakers, and DC SPD devices.

CNC vs Schneider and Local Brands

Cross-Category Recommendations

If you are buying this 6mm solid pin PV connector, also consider matching parts that complete the DC side. Use DC cable 4mm/6mm with the correct cable size, add DC SPD 1000V for lightning-related surge protection, and place DC 2P MCB 500V or DC fuse where string protection is required. Browse MC4 connectors, DC cables, DC circuit breakers, DC SPD collection, solar bundles, AC circuit breakers, AC SPDs, voltage protectors, RCCB and RCBO, manual changeover switches, automatic transfer switches, DB boxes, and MCCBs for complete protection planning.

Related Products from CNC Electric

• MC4 4mm Normal Pin — Rs.100
• MC4 with 30A Fuse — Rs.700
• DC Cable 4mm / 6mm — solar cable for string wiring
• DC 2P MCB 500V — Rs.1,550
• DC SPD 1000V — Rs.3,700

FAQs

What is the mc4 connector price in Pakistan for this 6mm solid pin version?

This model starts from Rs.260. It costs more than a basic 4mm normal pin connector because it is designed for 6mm cable and uses a solid pin style for improved contact.

Why choose a solid pin instead of a normal pin?

A solid pin usually offers better contact stability and can reduce the chance of heat build-up at the connection point when the installation is done correctly.

Is 6mm better than 4mm for solar?

For larger systems and longer cable runs, 6mm cable is often preferred because it can help reduce voltage drop. The connector should match the cable size you are actually using.

Can I use this as a solar connector on home rooftop systems?

Yes. It works on home and commercial PV systems where 6mm solar cable is part of the design. It is suitable for systems feeding inverters that support home loads such as ACs, fridges, pumps, and UPS charging.

What is the difference between the 1000V and 1500V variants?

The difference is the DC voltage rating. Choose the higher-rated version where the PV system design or future expansion requires it.

Is this connector waterproof for Pakistani weather?

Yes, it is listed as IP67 waterproof and UV resistant, but the sealing depends on correct crimping and proper tightening of the cable gland.

Does this connector replace a DC breaker or DC fuse?

No. It only connects the cable. Use a DC breaker, DC fuse, or both depending on the solar string protection design.

Should I buy this or the fused MC4 connector?

Buy this model when you want a standard connector for 6mm cable. Buy the fused MC4 when you want connector plus inline overcurrent protection in one assembly.

Is free delivery available from CNC Electric Pakistan?

Yes, CNC Electric Pakistan promotes free delivery along with practical support and a 5-year warranty on this category.
