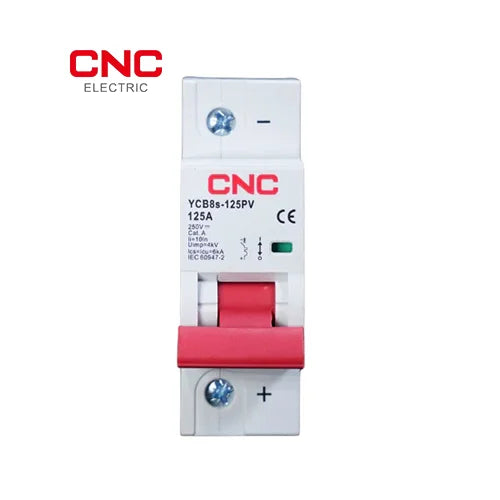

CNC DC 1P MCB 500V 125A YCB1 | Reliable Protection front view DC solar circuit breaker Pakistan

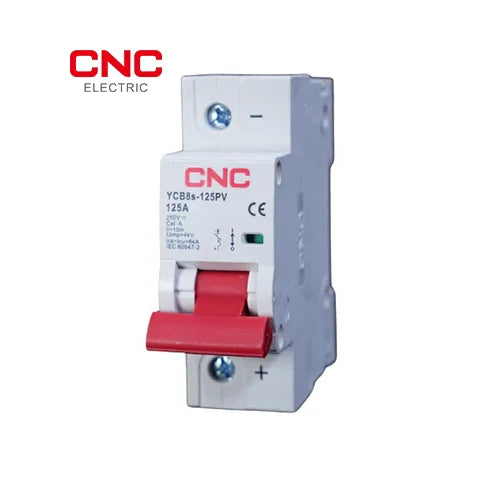

CNC DC 1P MCB 500V 125A YCB1 | Reliable Protection angled view DC solar circuit breaker Pakistan

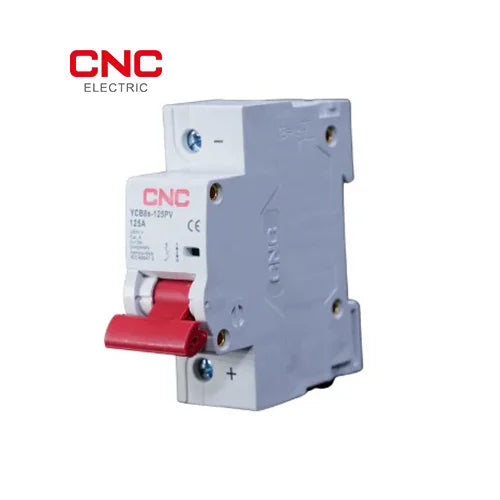

CNC DC 1P MCB 500V 125A YCB1 | Reliable Protection perspective view DC solar circuit breaker Pakistan

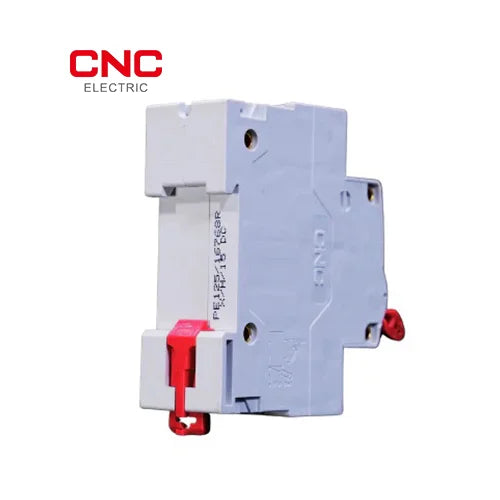

CNC DC 1P MCB 500V 125A YCB1 | Reliable Protection side view DC solar circuit breaker Pakistan
DC 1P MCB 500V 125A YCB1 | Reliable Protection - CNC DC 1P MCB 500V 125A YCB1 | Reliable Protection front view DC solar circuit breaker Pakistan

DC 1P MCB 500V 125A YCB1 | Reliable Protection

Rs.1,150
Rs.1,300
Rs.1,150
10 customers are viewing this product
Voltage: 125A
Subtotal: Rs.1,150
CNC DC 1P MCB 500V 125A YCB1 | Reliable Protection front view DC solar circuit breaker Pakistan

DC 1P MCB 500V 125A YCB1 | Reliable Protection

Rs.1,300 Rs.1,150

DC 1P MCB 500V 125A YCB1 | Reliable Protection

Rs.1,300 Rs.1,150
Voltage: 125A

CNC YCB8s-125PV DC 1 Pole MCB -- 500V 125A

A single-pole DC miniature circuit breaker rated at 500V and 125A, built specifically for photovoltaic and battery protection. This is the breaker you need when running high-current DC strings or battery bank feeds in solar installations across Pakistan.

The YCB8s-125PV uses a DC-rated arc chute designed to extinguish the sustained DC arc that standard AC breakers cannot handle. Polarity-sensitive -- connect supply to the top terminal and load to the bottom terminal.

Specifications

Model YCB8s-125PV
Poles 1 Pole
Rated Current 125A
Rated Voltage DC 500V
Application Photovoltaic / Battery
Breaking Capacity 10kA
Mounting 35mm DIN Rail

Where It Fits

  • Battery bank main disconnect for 48V lithium or lead-acid banks (up to 125A continuous)
  • Solar charge controller output breaker on systems up to 500V DC
  • DC bus protection in hybrid inverter setups
  • Industrial DC motor feed protection
Polarity matters: DC breakers are directional. The YCB8s-125PV must be wired with correct polarity (LINE on top, LOAD on bottom) or it will not clear faults safely.
