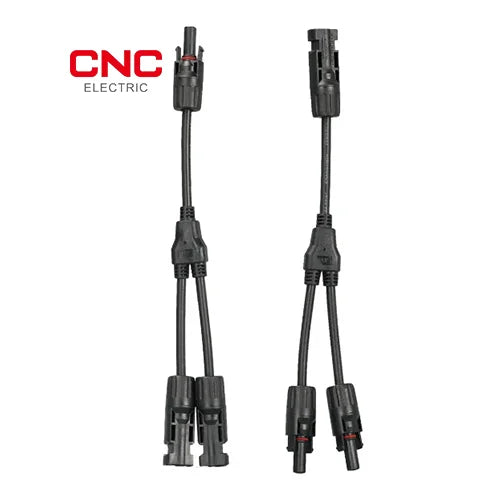

MC4 Y-Type Connector 1000V PV-LTY2 | High-Quality Solar PV Connection

Looking for an MC4 Y solar connector price in Pakistan for rooftop solar wiring, panel string connection, or combiner-side cable work? This CNC Electric MC4 Y-Type Connector is built for installers who want a cleaner and more reliable PV connection point instead of forcing loose joints or mismatched solar plugs into the job. In real Pakistan solar installations, connector quality matters more than many buyers realize because poor solar connections can create heat, voltage loss, moisture issues, and future maintenance trouble. This 1000V DC, 30A Y-type connector is a practical solar accessory for installers, contractors, and panel builders who want safer and more professional cable branching in photovoltaic systems.

Key Features

• MC4 Y-Type connector designed for photovoltaic systems and DC solar cable connection work.
• 1000V DC rating under the IEC data shown on the live CNC Electric page.
• 30A rated current for practical solar connection duty in properly designed PV wiring.
• IP67 protection degree in the mated condition helps support outdoor solar use where weather exposure matters.
• Low contact resistance of 0.5mΩ supports efficient electrical transfer and cleaner solar performance.
• Snap-in locking system helps keep the solar connection firm and installation-friendly.
• Tin-plated copper-alloy contact material and PC/PA insulation give it a stronger technical base than casual low-grade connector choices.
• A practical match for solar jobs that also use DC Breakers, DC SPD, DC Isolators, and Electrical Cables.

Technical Specifications

Product Range / Variant Table

The surfaced local page shows one live Y-type connector variant rather than a large local option matrix. For jobs needing a different geometry, the solar-connector family also includes standard straight MC4 connectors and other branch styles on the site.

Applications

• Photovoltaic systems where neat branch-style solar cable connection is needed instead of loose manual joining.
• Rooftop solar installations in Lahore, Karachi, or Islamabad where outdoor-rated solar connectors must survive heat, dust, and weather exposure.
• DC power systems where the installer wants cleaner, safer, and more serviceable solar-side cable work.
• Residential and commercial solar arrays where connector reliability matters as much as the inverter and protection hardware.
• Solar projects that also require DC breakers, DC SPD, DC isolators, and proper cable selection.
• Panel builders and installers who want to reduce connector heating risk caused by poor joints or mismatched PV connector parts.

Sizing / Selection Guide

Choose this MC4 Y solar connector when the solar system needs a Y-type branch connector and the installation is working within the connector's 1000V DC and 30A published class. The main checks are cable compatibility, connector style, and whether the job needs a Y-branch shape or a normal straight connector.

• Choose this Y-type connector when the solar cable layout needs a branch-style connection rather than a standard straight MC4 joint.
• Choose a normal MC4 connector if the job only needs standard point-to-point solar cable termination and does not need a Y-type branch.
• Check cable compatibility first because the connector system is listed as Φ4mm and the installation must match the connector format properly.
• Stay inside the published rating and do not treat a connector as if it can solve oversizing or poor DC design decisions.
• Build the full solar side properly with DC breakers, DC SPD, DC isolators, and the right solar cable.

MC4 Y Connector vs Alternatives — Why CNC?

For Pakistani solar buyers, the real comparison is not just connector versus connector. It is solar-rated branch connector versus generic local joining, and weather-ready PV connection versus cheap mismatched fittings. That is where this CNC Electric MC4 Y connector becomes the safer commercial choice.

What This Product Does NOT Protect Against

• It is not a DC breaker and does not provide overload or short-circuit protection.
• It is not a DC SPD and does not protect the solar line from surge events.
• It is not a DC isolator and does not replace safe disconnect hardware for maintenance.
• It does not fix poor crimping, bad cable sizing, or incorrect solar string design.
• It should not be mixed casually with random mismatched connector parts from unrelated systems.

Installation Guide

1. Confirm the solar cable and connector format match the Φ4mm system and the intended PV wiring design.
2. Use proper solar-connector assembly practice and avoid forcing mismatched parts into the locking system.
3. Check the snap-in locking engagement properly so the outdoor joint stays firm and serviceable.
4. Keep polarity and cable routing organized even though the page gives the connector's technical data and mechanical protection values.
5. Test continuity and connection security before energizing the solar side of the system.
6. Finish the solar build with the right DC breaker, DC SPD, DC isolator, and the Fire Extinguisher Guide.

Cross-Category Links

• Electrical Cables
• DC Breakers
• DC SPD
• DC Isolators
• Solar DB Bundles
• Fire Extinguishers
• Solar DB Box Guide
• DC Breaker Guide
• SPD Full Form Guide
• Fire Extinguisher Guide

FAQs

What is an MC4 Y connector?

An MC4 Y connector is a Y-type photovoltaic connector used in solar DC wiring where a branch-style connection is needed instead of a normal straight connector path.

What is the MC4 Y solar connector price in Pakistan?

The live CNC Electric Pakistan page currently shows this MC4 Y-type connector at Rs.650.

Why is this more expensive than a normal single MC4 connector?

Because it is a Y-type branch connector rather than a basic straight connector, and it is built for more specific solar branching use.

Is this connector rated for solar use?

Yes. The local page directly positions it for photovoltaic systems and solar DC power connections, with 1000V DC and 30A published ratings.

What is the voltage and current rating of this MC4 Y connector?

The surfaced technical table shows 1000V DC rated voltage and 30A rated current.

Can this be used outdoors on rooftop solar systems?

Yes. The local page shows IP67 protection in the mated condition and a wide operating temperature range, which supports outdoor photovoltaic use.

Is this better than joining solar wires manually?

Yes. A proper PV connector is much safer and cleaner than field-made joints or casual connector mixing on the solar side.

Does this connector provide overload or surge protection?

No. It is only a connector. Protection still requires DC breakers, DC SPD, and other proper solar-side hardware.

What materials are used in this connector?

The local technical table shows tin-plated copper-alloy contact material and PC/PA insulation material.

What should I add with this connector for a better solar installation?

A better solar installation usually includes the right solar cables, DC breakers, DC SPD, DC isolators, and nearby panel fire protection.

If you need a proper Y-type PV connector in Pakistan instead of a risky field-made solar joint, this CNC Electric MC4 Y connector is a strong practical choice. It gives you a 1000V DC, 30A solar-rated branch connector with outdoor-ready sealing, strong material quality, and a much cleaner wiring outcome for rooftop and commercial PV work. For stock confirmation, connector matching, or help pairing it with the right solar cable, DC breaker, and DC isolator, contact CNC Electric Pakistan on WhatsApp before ordering.
