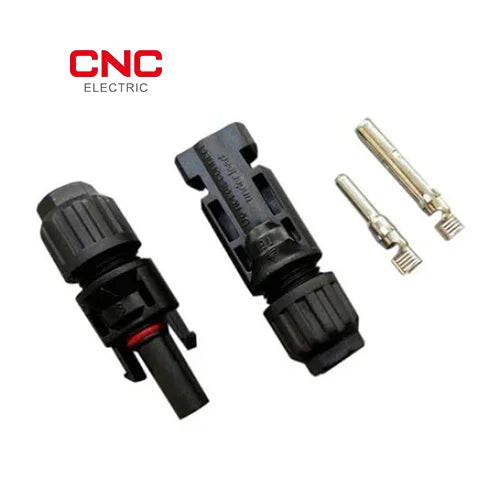

MC4 Connector 1500V 10mm Solid Pin | Solar Panel

Looking for an MC4 connector 10mm price in Pakistan for solar panel wiring, DC cable terminations, or rooftop PV installation work? This CNC Electric solid-pin solar connector is built for installers who want a proper photovoltaic connection instead of loose joints, weak adapters, or mixed local connector parts. In Pakistan solar work, connector quality directly affects voltage drop, heating, weather resistance, and long-term reliability. That is why a proper solar connector matters even though it is a small part of the overall system. For solar installers, contractors, and panel builders, this MC4 connector is a practical DC-side accessory for safer and cleaner solar cable connection.

Key Features

• MC4 DC connector with solid-pin 10mm format for solar panel and DC power cable connection.
• Rated voltage shown on the local page as 1500V DC, making it suitable for higher-voltage photovoltaic applications.
• Published rated-current figures go up to 30A depending on the cable size used, which supports practical solar wiring needs.
• IP67 protection in the mated condition helps support outdoor solar installations where moisture and dust are real concerns.
• Low contact resistance of 0.5mΩ helps keep the solar connection efficient and reduces unnecessary connection losses.
• Snap-in locking system gives the connector a cleaner and more secure solar-cable fit than makeshift joints.
• Tin-plated copper-alloy contact material with PC/PV insulation supports outdoor durability and stable power transfer.
• A practical fit for solar jobs that also need DC Breakers, DC SPD, DC Isolators, and Electrical Cables.

Technical Specifications

Product Range / Variant Table

This product is the standard straight MC4 connector route, not the Y-type branch connector. That makes it the better choice when the job needs point-to-point PV connection rather than solar cable splitting.

Applications

• Straight solar-panel cable connection where the installer wants a proper PV connector instead of field-made joints.
• Rooftop solar installations in Lahore, Karachi, or Islamabad where outdoor-ready DC connector reliability matters.
• Residential and commercial PV systems where connector heating and poor contact quality can become long-term faults.
• DC power systems that need reliable cable-to-cable or module-side photovoltaic connection using a recognized MC4-type format.
• Solar jobs that also need Electrical Cables, DC Breakers, DC SPD, and DC Isolators.
• Installers who want a cleaner, weather-resistant straight connector instead of a Y-branch style connector for the job.

Sizing / Selection Guide

Choose this MC4 connector when the solar layout needs a straight connector and the cable and current class match the published local-page data. The key checks are cable size, connector type, system voltage, and whether the project needs a straight connector or a branch connector.

• Choose this 10mm solid-pin connector when the solar cable layout needs a straight standard connector and not a branch-style Y connector.
• Choose the Y-type connector only if the job specifically needs solar cable branching rather than direct point-to-point connection.
• Match the cable size carefully because the local page shows current ratings that change with cable cross-section.
• Stay inside the published voltage class and do not treat the connector as a fix for poor PV design decisions.
• Build the whole DC side correctly with DC breakers, DC SPD, DC isolators, and the right solar cable.

MC4 Connector vs Alternatives — Why CNC?

For Pakistani solar buyers, the comparison is not just connector versus connector. It is proper PV connector versus casual local joining, and straight MC4 connection versus using the wrong connector shape for the job. That is where this CNC Electric connector becomes the more practical choice.

What This Product Does NOT Protect Against

• It is not a DC breaker and does not provide overload or short-circuit protection.
• It is not a DC SPD and does not protect the solar line from surge events.
• It is not a DC isolator and does not replace safe disconnect hardware.
• It does not fix poor crimping, wrong cable sizing, or weak solar string design.
• It should not be mixed casually with mismatched PV connector families or random local plug parts.

Installation Guide

1. Confirm the solar cable size and connector format match the 10mm solid-pin connector route being installed.
2. Use proper PV connector assembly practice and avoid forcing mismatched parts into the snap-in locking system.
3. Check the connector locking engagement properly so the outdoor solar joint stays secure and serviceable.
4. Keep polarity and routing organized and avoid unnecessary bending or stress at the connector head.
5. Test continuity and joint security before energizing the solar DC side.
6. Finish the solar build with the right DC breaker, DC SPD, DC isolator, and the Fire Extinguisher Guide.

Cross-Category Links

• Electrical Cables
• DC Breakers
• DC SPD
• DC Isolators
• Solar DB Bundles
• Fire Extinguishers
• Solar DB Box Guide
• DC Breaker Guide
• SPD Full Form Guide
• Fire Extinguisher Guide

FAQs

What is an MC4 connector?

An MC4 connector is a photovoltaic connector used for solar DC cable connection in a safer and more reliable way than casual joined wires.

What is the MC4 connector 10mm price in Pakistan?

The live CNC Electric Pakistan page currently shows this solid-pin 10mm MC4 connector at Rs.300.

Why is this cheaper than the MC4 Y connector?

Because this is a straight standard connector, while the Y-type version is a branching connector for a different solar-wiring purpose.

Is this connector rated for 1500V DC?

Yes. The local page shows 1500V DC in the product title/variant and technical table wording.

What current can this connector handle?

The local technical table shows current values up to 30A depending on the cable size used.

Is it suitable for outdoor rooftop solar?

Yes. The local page shows IP67 protection in the mated condition and outdoor-suitable material and temperature performance.

Is this better than using local generic connector parts?

Yes. A proper solar-rated MC4 connector is safer and more reliable than casual mixed parts or field-made DC joints.

Does this connector provide DC protection?

No. Protection still requires DC breakers, DC SPD, and DC isolators.

What material is used in this MC4 connector?

The local page shows tin-plated copper-alloy contacts and PC/PV insulation material.

What should I add with this connector for a better solar installation?

A better solar installation usually includes the right solar cables, DC breakers, DC SPD, DC isolators, and nearby panel fire protection.

If you need a proper straight solar connector in Pakistan instead of a risky local joint or the wrong connector geometry, this CNC Electric 10mm solid-pin MC4 connector is a strong practical choice. It gives you a solar-rated straight connection format with 1500V DC positioning, outdoor-ready sealing, and the kind of contact quality that matters in real PV work. For stock confirmation, connector matching, or help pairing it with the right solar cable, DC breaker, and DC isolator, contact CNC Electric Pakistan on WhatsApp before ordering.
