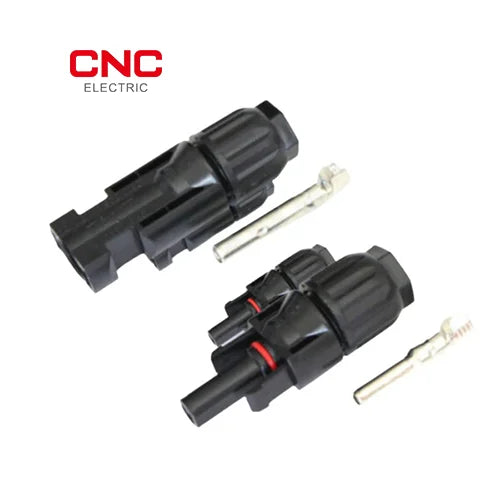

CNC DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection front view solar panel connector Pakistan

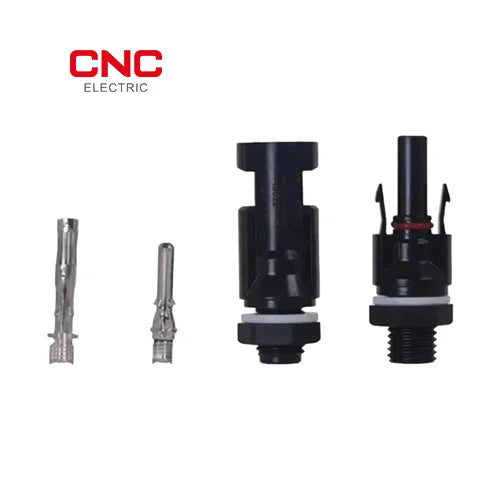

CNC DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection angled view solar panel connector Pakistan
DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection - CNC DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection front view solar panel connector Pakistan
CNC DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection front view solar panel connector Pakistan
CNC DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection angled view solar panel connector Pakistan

DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection

Rs.240
Rs.440
Rs.240
10 customers are viewing this product
Size: Solid Pin 4mm
VOLTAGE: 1000V
Subtotal: Rs.240
CNC DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection front view solar panel connector Pakistan

DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection

Rs.440 Rs.240
CNC DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection front view solar panel connector Pakistan
CNC DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection angled view solar panel connector Pakistan

DC MC4 Connector Solid Pin 4mm 1000V | Secure Solar PV Connection

Rs.440 Rs.240
Size: Solid Pin 4mm
VOLTAGE: 1000V
Description

MC4 DC Connector Solid Pin 4mm 1000V is a practical mc4 connector option for Pakistani buyers who want a proper electrical product instead of improvised market stock. Listed at Rs.240, it is suited to real solar installations in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar where reliability, neat installation, and future maintenance matter.

Quick Specs

Specification Value
Cable size 4mm
Pin type Solid pin
Voltage 1000V DC
Current 30A rated
Ingress IP67 waterproof
Use Solar DC connector
Warranty 5-year warranty

Variant & Price (Live on Shopify)

Item Pin Cable Voltage Price
MC4 Solid Pin 4mm Solid 4mm 1000V DC Rs.240

What This Product Does

The main advantage of a solid pin MC4 connector is better contact quality than a normal pin type. Lower contact resistance means less unwanted heat at the connector, which is exactly what buyers want on rooftops where connectors remain in service for years under heat, dust, and weather. This 4mm solid pin version is the upgrade path for buyers who still use 4mm solar cable but want better termination quality than the cheapest connector option.

Selection Guide

Use Case Recommended Why
Small/medium PV strings using 4mm cable This 4mm solid pin (Rs.240) Best match without oversizing hardware
Need lowest cost only 4mm normal pin Cheaper but lower contact quality
6mm cable compatibility 6mm solid pin Thicker cable, lower voltage drop
Built-in fuse at the connector MC4 with fuse Combines connection + protection

How to Install

  1. Strip the cable to the correct length.
  2. Crimp the solid pin properly with the correct crimping tool.
  3. Insert and lock the connector body fully to maintain IP67 sealing.
  4. Test continuity and polarity before mating into the live solar circuit.

What This Product Does NOT Protect Against

An MC4 connector only joins the DC cable path. It does not provide surge protection, overload protection, or voltage protection. Use correct fuses, MCBs, SPDs, and DB design for a complete solar system.

Related Products

FAQs

Price?
Rs.240 for the 4mm solid pin MC4 connector.

Solid pin vs normal pin?
Solid pin gives better contact quality, lower resistance, and less heat buildup over long service life.

4mm or 6mm?
Choose 4mm if your solar design actually uses 4mm cable. Choose 6mm for thicker cables and higher currents.

Who should install it?
A qualified electrician or solar installer so cable size, torque, labelling, and protection coordination are correct.

Does it replace other protection?
No. Breakers, fuses, SPDs, and voltage protectors all do different jobs.

CNC Electric Pakistan offers free delivery over Rs.10,000 and a 5-year warranty. WhatsApp 0326-1111376.
