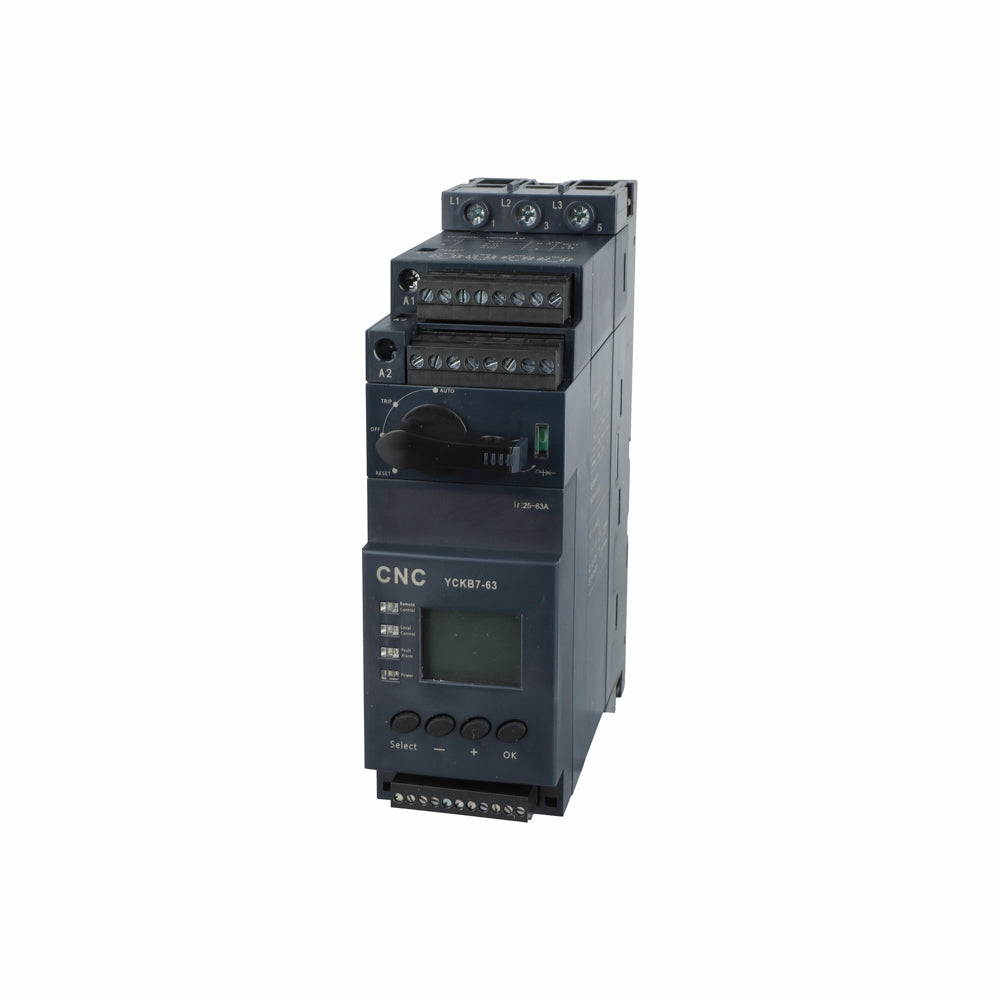

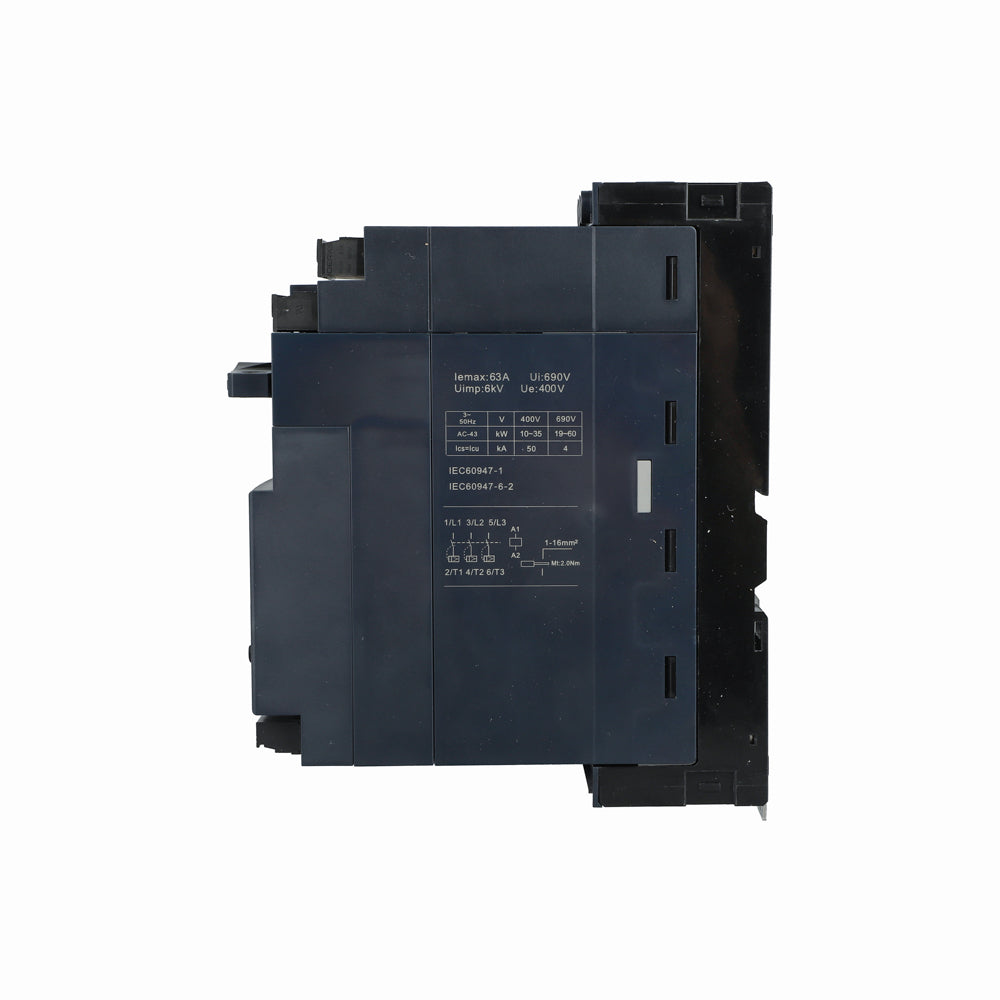

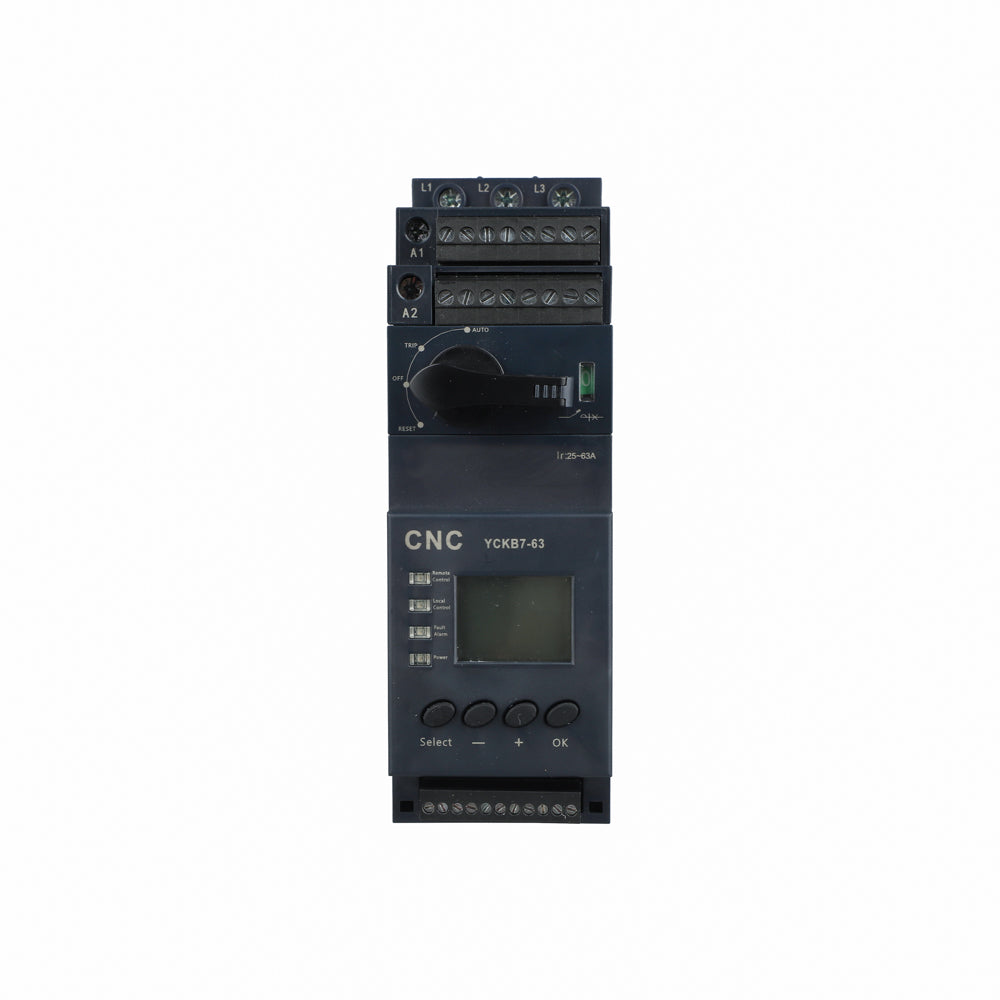

Integrated Motor Starter (CPS) 63A | All-in-One Control & Protective Switching Device (YCKB7)

A traditional motor starter is three separate devices — a circuit breaker, a contactor and a thermal overload relay — selected, wired and coordinated together. A CPS integrates all three functions into one factory-coordinated unit, saving panel space, wiring and the guesswork of matching devices, while giving a very high short-circuit breaking capacity.

What the YCKB7 does

The YCKB7 performs three jobs at once: it switches the motor on and off (the contactor function), it protects against overload (the relay function, with an adjustable trip), and it breaks short-circuit faults up to 50 kA at 400 V (the breaker function) — clearing a fault in under 2 ms. It supports local control (2-wire and 3-wire), local-plus-remote, and a communication version for control from an upper-level computer.

Model range (1.2–63 A)

One 3-pole, 63-frame platform is offered in eight current steps, each with its overload setting range and motor power:

Key specifications

Model code

The type designation reads YC-KB7-63 / [current] [M|Q] [T]: YC = CNC, KB7 = CPS family, 63 = frame, /current = the current step (e.g. /63 = 25–63 A), M = 230 V or Q = 400 V control, and a trailing T = communication type (blank = standard).

What the YCKB7 does not do

A CPS replaces the breaker + contactor + overload-relay combination for a motor — it does not vary speed or soft-start. For a gentle ramp-up use the CNC YCQR7 soft starter; for speed control use the CNC YCB600 VFD. If you prefer separate components, pair a contactor with the CNC JR28S thermal overload relay.

Downloads

• YCKB7 catalogue (PDF)

Frequently asked questions

What is a CPS (Control and Protective Switching device)?

A CPS is a single device that integrates the three parts of a motor starter — circuit breaker, contactor and overload relay — into one factory-coordinated unit. It switches the motor, protects against overload, and breaks short-circuit faults, all in one.

How is a CPS better than a traditional starter?

It saves panel space and wiring, removes the need to select and coordinate three separate devices, and provides a very high short-circuit breaking capacity (up to 50 kA) in a compact package with a single set of connections.

What do AC-43 and AC-44 mean?

They are IEC utilization categories for motor switching: AC-43 covers starting and switching off running motors, and AC-44 covers the more demanding duty of starting, plugging and inching. The YCKB7 is rated for both.

What motor size does it suit?

The eight current steps cover roughly 0.07 kW up to 35 kW at 400 V (higher at 690 V). Use the model range table to match your motor current, or send us the nameplate.

Can it be controlled remotely?

Yes. It supports 2-wire and 3-wire local control, local-plus-remote operation, and a communication version (type T) for control and monitoring from an upper-level computer.
