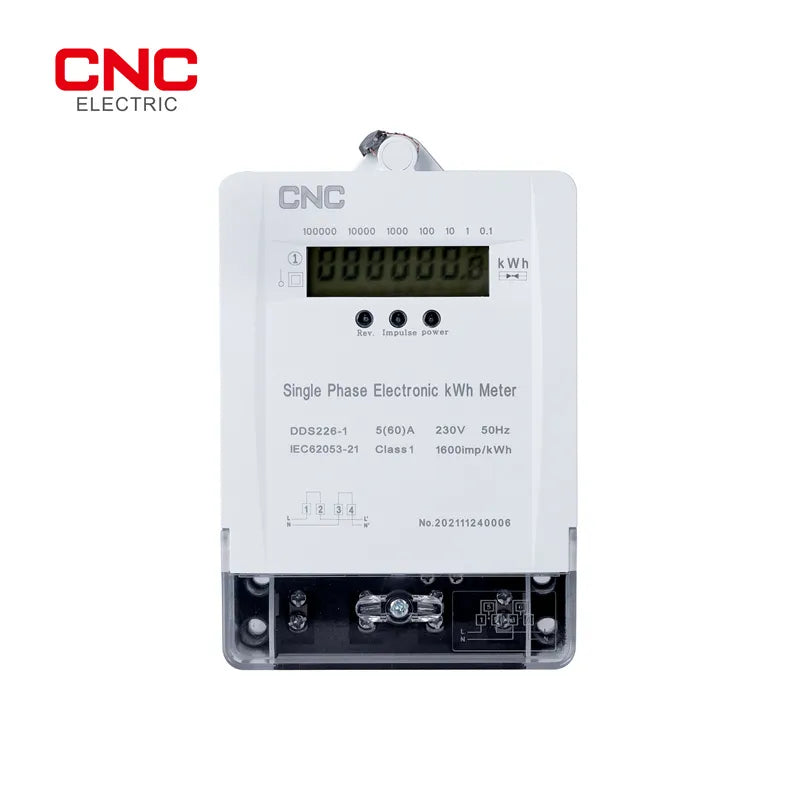

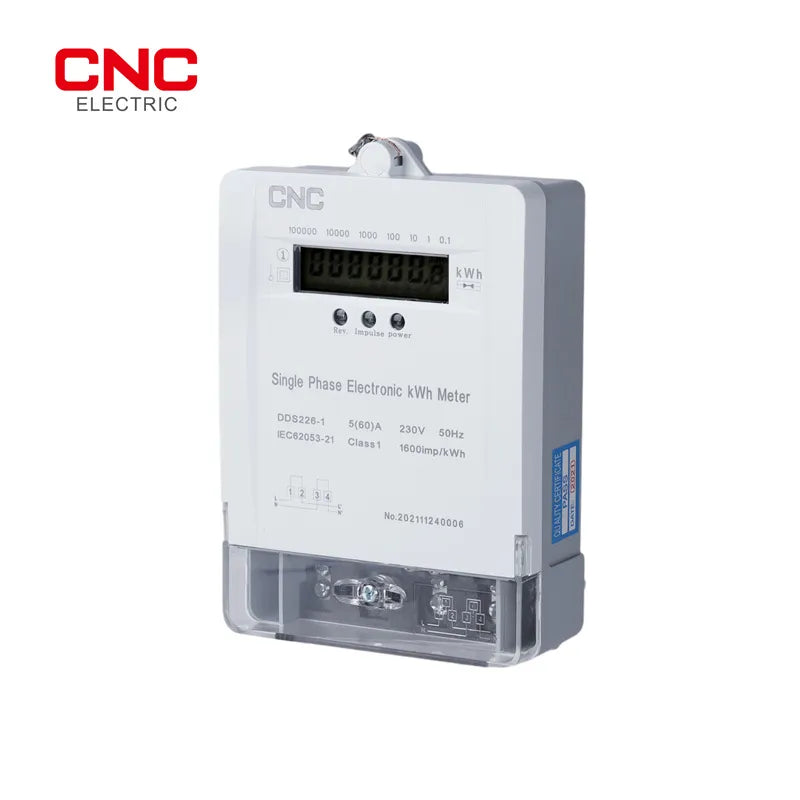

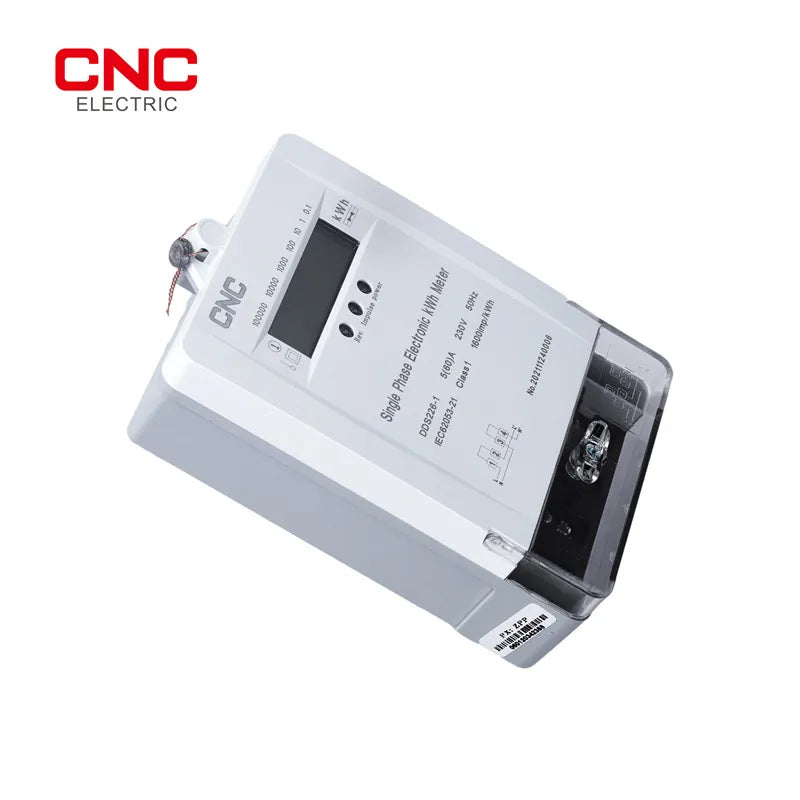

CNC DDS226-1 Single Phase Electronic Energy Meter

A static (electronic) single-phase kWh meter for measuring active energy consumption. The DDS226-1 replaces older electromechanical meters with a solid-state design that is more accurate, tamper-resistant, and has no moving parts to wear out.

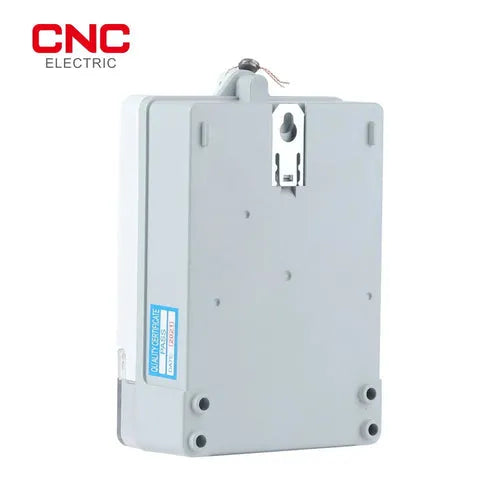

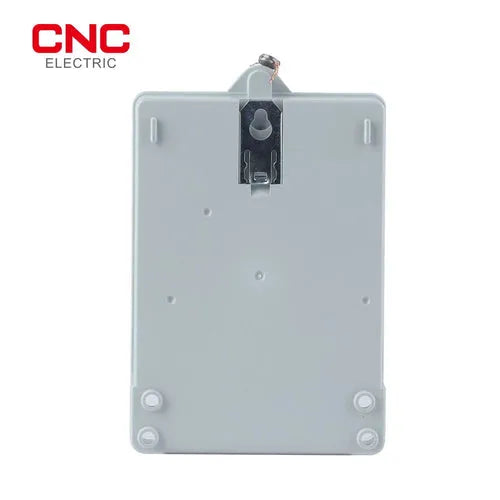

This meter is DIN-rail mounted (35mm) and designed for sub-metering in apartments, shops, rental units, and solar net-metering setups. It reads cumulative kWh on a 6+1 digit LCD display.

Specifications

Model DDS226-1
Type Single Phase Static (Electronic)
Rated Voltage 230V AC / 50Hz
Rated Current 5(60)A
Accuracy Class Class 1
Display 6+1 digit LCD (kWh)
Mounting 35mm DIN Rail
Width 1 module (18mm)
Standard IEC 62053-21

Common Applications

  • Tenant sub-metering in apartments and plazas -- each shop or flat gets its own meter
  • Solar system monitoring -- track how much energy your PV system produces
  • Generator fuel cost accounting -- measure kWh consumed during load shedding
  • Factory machine-level energy auditing

Wiring

Four terminals: Line In, Line Out, Neutral In, Neutral Out. Connect in series with the load. The 5(60)A rating means 5A base current and 60A maximum -- it handles a full residential load without a current transformer. Mount it in a DIN-rail enclosure next to your main breaker for easy reading.
