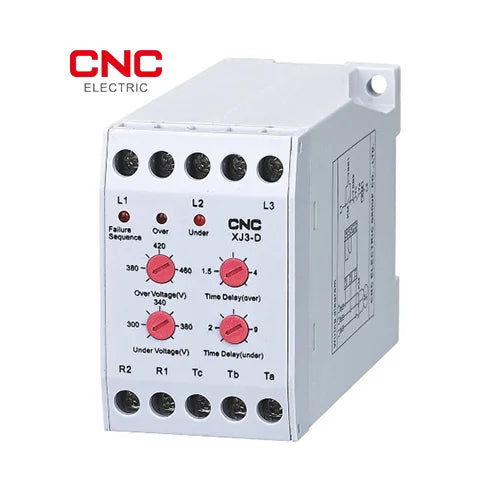

3 Phase Sequence Relay | Reliable Phase Protection & Monitoring

Phase sequence relay is the right protection device when a three-phase motor must never run with a missing phase or the wrong phase order. On CNC Electric Pakistan, this XJ3-D listing is shown at Rs.3,500, so it sits in the practical industrial-control range rather than the expensive protection-relay category. For pumps, compressors, chillers, lifts, textile machines and workshop motors in Pakistan, this relay helps stop the contactor circuit before reverse rotation, single phasing or unstable three-phase conditions damage equipment.

This product matters most on sites where three-phase supply is not always clean and predictable. After load shedding, generator changeover, maintenance rewiring or feeder disturbance, a motor can see the wrong phase sequence or lose one phase completely. A motor may hum, run hot, pull unbalanced current, or rotate the wrong direction. A phase sequence relay is meant to stop that problem before the contactor pulls in fully and the machine turns a voltage mistake into a repair bill.

Key Features

• Three-phase monitoring for phase failure, wrong phase sequence, overvoltage and undervoltage conditions.
• Local CNC Electric Pakistan listing price is Rs.3,500 for the XJ3-D phase protection relay.
• Designed to control the contactor coil circuit so the motor load is not allowed to run under unsafe phase conditions.
• Official family data shows AC 380V, 50/60Hz operating voltage for this relay class.
• Adjustable overvoltage and undervoltage window makes it more useful than a basic phase-loss-only relay.
• Suitable for control panels using magnetic contactors, thermal relays and upstream circuit breakers.
• 35mm rail mounting support in official family data helps it fit cleanly in many industrial panels and DB boxes.

Technical Specifications

Product Range and Price

This description uses only data published on the live product page plus official family data that clearly fits the XJ3-D relay class. A full local wiring diagram, exact terminal numbering for the sale listing, and enclosure dimensions are not currently listed on the live Pakistan page and have not been guessed.

Applications — Where to Use This Phase Sequence Relay

This relay belongs in three-phase control panels where motor direction and balanced supply matter. In Faisalabad, it makes sense on textile machines, compressors and process motors where wrong phase order after maintenance can stop production or run equipment backwards. In Lahore, it suits workshops, chillers, pumps and machine-control panels where electricians often deal with generator changeover and mixed-site power conditions. In Karachi, plant rooms, HVAC systems and utility motors can benefit because phase failure or wrong sequence is not something you want the contactor to discover after the motor has already been energized.

How to Choose the Right Phase Protection Device

The first question is simple: do you only need motor overload protection, or do you also need to verify that all three phases are healthy and in the correct order before the motor runs? If the site runs three-phase motors where direction matters, overload alone is not enough. If the site has frequent maintenance, generator backup, or voltage irregularity, a relay with phase-failure and under/overvoltage logic is the better choice.

Phase Sequence Relay vs Other Protection Devices — Why CNC?

What This Product Does NOT Protect Against

This phase sequence relay does not replace upstream short-circuit protection, motor overload protection, leakage protection, or surge protection. It cannot do the job of a circuit breaker, an RCCB / RCBO, or a thermal overload relay. It is a control-side monitoring relay. Its job is to stop unsafe three-phase conditions from energizing the contactor circuit in the first place.

It also does not protect against lightning or switching surges. If your control panel is near motors, long cable runs, generator switching or outdoor feeders, add a proper surge protection device. If the site has recurring low and high mains swings, pair the panel with the correct voltage protector where relevant.

Installation Guide

1. Mount the relay on a 35mm DIN rail or approved panel base according to your panel layout.
2. Bring the three monitored phases to the relay exactly as shown on the wiring diagram supplied with the product or official instruction manual.
3. Wire the output contact into the contactor coil control path so the motor cannot start under bad phase conditions.
4. Set the required overvoltage and undervoltage thresholds only after confirming the supply conditions of your site and the motor panel design.
5. Test healthy supply, missing phase and wrong sequence conditions before handing over the panel.

Related Products

This relay normally belongs inside a wider motor or control panel. Buyers usually pair it with magnetic contactors, thermal overload relays, upstream AC breakers or MCCB breakers, push buttons, selector switches, indicator lights, and where mains quality is poor, a proper voltage protector finder tool to select the right protection strategy. For supporting reading, see the Changeover Breaker Guide, the MCCB Guide, and the Safety Breaker Guide.

Frequently Asked Questions

What does a phase sequence relay do?

It checks whether all three phases are present and in the correct order before or during control operation. If phase order is wrong or a phase fails, it drops or blocks the control circuit.

Why is wrong phase sequence dangerous?

Many three-phase motors will reverse direction if the phase order is changed. That can damage pumps, conveyors, compressors, lifts and process machinery.

Can this relay protect against phase failure?

Yes. The official XJ3-D family data specifically includes phase-failure protection and phase-sequence error protection.

Is this the same as a thermal overload relay?

No. A thermal overload relay protects a motor from overload current. A phase sequence relay checks the health and order of the three-phase supply feeding the control circuit.

What is the price of this phase sequence relay in Pakistan?

At the time checked, CNC Electric Pakistan listed this XJ3-D phase sequence relay at Rs.3,500.

Is a phase sequence relay worth the price in Pakistan?

If you run three-phase motors with generator backup, frequent maintenance, or unreliable supply conditions, yes. One wrong-sequence startup can cost far more than the relay.

Can I install it in a DB or control panel on DIN rail?

Yes. Official family data allows 35mm track installation or soleplate mounting, which suits many motor-control panels.

Does this relay replace surge protection or a voltage protector?

No. It monitors three-phase condition and phase order. Use the proper SPD for surge risk and the right voltage protector where voltage fluctuation is the main problem.

Need help choosing the right protection relay or building the full three-phase panel around it? Contact CNC Electric Pakistan on WhatsApp 0326-1111376 for selection help, price confirmation and matching products. Orders above Rs.10,000 qualify for free delivery, and you can pair this relay with contactors, overload relays, breakers, SPDs and panel accessories from the same store.
