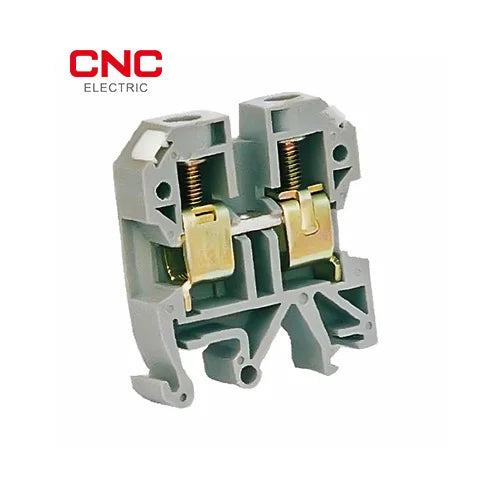

Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring front view Pakistan
Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring - Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring front view Pakistan
Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring front view Pakistan

Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring

Rs.50
Rs.46
Rs.50
10 customers are viewing this product
Sizes: JXB-2.5
Subtotal: Rs.50
Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring front view Pakistan

Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring

Rs.46 Rs.50
Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring front view Pakistan

Terminal Connector Baffle Series JXB-2.5, JXB-4, JXB-6, JXB-10, JXB-16, JXB-35, JXB-70, JXB Baffle AP-2.5, JXB Baffle AP-4, JXB Baffle AP-6, JXB Baffle AP-10, JXB Baffle AP-16, JXB Baffle AP-35, JXB Baffle AP-70 | Terminal Connectors for Safe Wiring

Rs.46 Rs.50
Sizes: JXB-2.5
Description

Terminal block connector for DIN rail panels, DB boxes, MCC panels, and control cabinets. This CNC Electric JXB series listing starts from Rs.26 in Pakistan and includes both terminal blocks and matching baffle plates. Use it when you want cleaner wiring, secure terminations, easy panel expansion, and proper separation inside a crowded control panel.

Key Features

  • JXB terminal blocks plus matching AP baffle plates in one product listing
  • DIN rail mounting for fast panel assembly and cleaner wiring layout
  • Flame-retardant PA66 insulation body and tin-plated copper-alloy terminal material
  • Rated voltage up to 800V on the official JXB family
  • Current capacity ranges from 24A up to 192A across the JXB family sizes
  • Useful for DB boxes, MCC panels, solar inverter panels, automation cabinets, and machinery wiring

Technical Specifications

Parameter Value
Product type DIN rail terminal block connector and accessory baffle series
Series JXB terminal blocks with AP baffle plates
Rated voltage Up to 800V
Rated current range 24A to 192A across the JXB size range
Mounting 35mm DIN rail
Insulation body Flame-retardant polyamide PA66
Terminal material Tin-plated copper alloy
Temperature range -40°C to +105°C
Standard context Terminal-block application class, panel wiring use
Detailed terminal map / exact accessory fitment Contact us: 0326-1111376

Product Range

This listing mixes two things: actual terminal blocks and matching baffle separators. The terminal blocks carry current. The AP baffle pieces are accessories used to isolate and separate terminals inside the rail assembly.

Model Type Current Best use Price
JXB-2.5 Terminal block 24A Light control wiring, PLC panels, instrument loops Confirm by size
JXB-4 / JXB-6 Terminal block 32A / 41A Panel feeders, DB internal wiring, machinery control Confirm by size
JXB-10 / JXB-16 Terminal block 57A / 76A Heavier control panels and power distribution wiring Confirm by size
JXB-35 / JXB-70 Terminal block 125A / 192A Higher-current panel terminations Confirm by size
AP-2.5 to AP-70 Baffle plate Accessory Separation and insulation between terminals Store starts from Rs.26

Applications

Use JXB terminal block connectors where loose joints, mixed wiring, and messy cable landings create maintenance trouble. Common jobs include DB box wiring, MCC panels, solar inverter panels, control cabinets, generator panels, machine panels, and building-service boards. In Lahore panel shops, these are standard where clean DIN rail wiring saves troubleshooting time and makes future additions easier.

Use case Recommended size Why
PLC and control wiring JXB-2.5 or JXB-4 Compact and tidy for lighter control conductors
Machine control cabinet JXB-4 to JXB-10 Good balance between conductor size and panel density
MCC or higher-load feeder termination JXB-16 / JXB-35 / JXB-70 Takes larger conductors and higher current
Mixed terminal groups on one rail Add AP baffle plates Improves insulation and separation between groups

How to Choose

Your need This product? Better alternative
Need clean DIN rail terminal points Yes —
Need a simple strip terminal outside a DIN rail panel Maybe not HC terminal connectors
Need insulation separation between block groups Yes Choose the matching AP baffle

Terminal Block Connector vs Alternatives

Point CNC JXB Generic local terminal block Loose splicing / connector strip
Voltage class 800V Varies Usually unspecified
Current range 24A to 192A Varies by seller No proper rating structure
Mounting 35mm DIN rail Varies Messier panel work
Entry price Starts from Rs.26 Varies Cheap upfront, poor serviceability

What This Product Does NOT Protect Against

This terminal block connector does not replace a breaker, fuse, relay, or surge protector. It does not correct undersized wire, bad crimping, loose ferrules, or overheating caused by poor workmanship. Its job is clean, secure panel termination and separation.

For real protection around it, use the right circuit breakers, fuses, surge protection devices, and DB boxes.

Installation Guide

  1. Mount the terminal blocks on a clean 35mm DIN rail.
  2. Choose the block size based on conductor size and load current.
  3. Add matching AP baffles where terminal groups need separation.
  4. Tighten conductors correctly and confirm ferrule/crimp quality before energizing.

Add Fire Protection to Your Panel

Protect your panel with a DIN Rail Aerosol Fire Extinguisher — only Rs.2,500. Auto activation. 10-year shelf life. Fire safety guide →

Related Products

Useful internal links for this setup: Types of Circuit Breakers Guide, Solar DB Box Guide, Voltage Protector Finder, Electrical Cables, MCCB Breakers, and Energy Meters.

Frequently Asked Questions

What is the price in Pakistan?

Store starts from Rs.26.

Is this a terminal block or only a baffle?

This listing includes both terminal blocks and matching baffles.

What voltage class does JXB support?

Up to 800V.

Are these DIN rail mount?

Yes, 35mm DIN rail.

What do AP baffles do?

They separate and insulate terminal groups.

Can I use these in DB and MCC panels?

Yes.

Which size should I choose?

Choose by conductor size and current.

Need exact size pricing or drawings?

WhatsApp 0326-1111376.

Order JXB terminal block connectors from CNC Electric Pakistan for cleaner DIN rail panel wiring and proper separation inside DB, MCC, and control panels. For exact size pricing, matching baffles, and bulk supply support, WhatsApp 0326-1111376. Free delivery applies on qualifying orders.
