MCB AC Circuit Breaker
MCB AC Circuit Breaker
MCB AC Circuit Breaker
MCB AC Circuit Breaker

AC 1 Pole MCB 2A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

SKU: YCB7-63N
Availability: In Stock
Rs.425
Rs.470
Rs.425
10 customers are viewing this product
Please hurry! Only 993 left in stock
AMPERE: 2A
Subtotal: Rs.425
MCB AC Circuit Breaker

AC 1 Pole MCB 2A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

Rs.470 Rs.425

AC 1 Pole MCB 2A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 63A

Rs.470 Rs.425
AMPERE: 2A

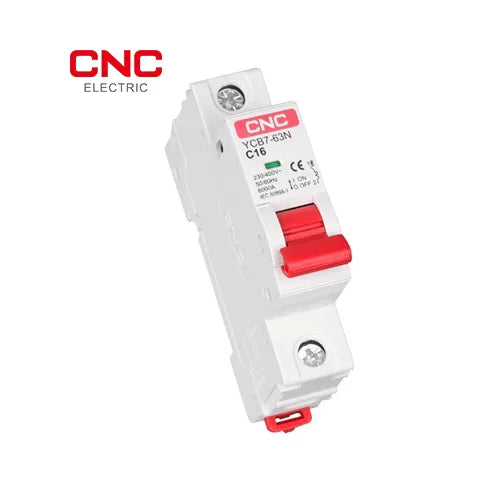

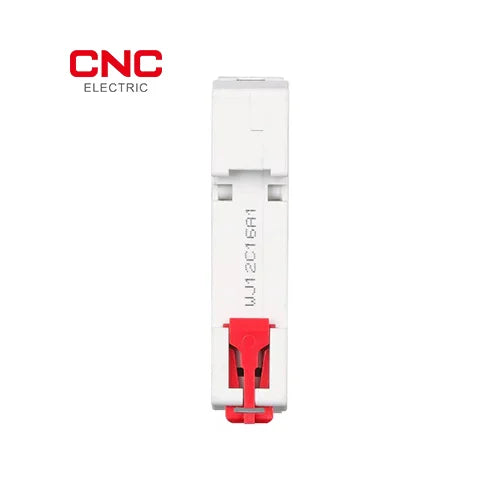

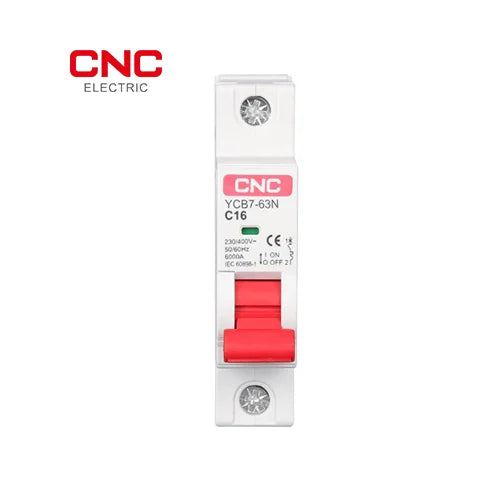

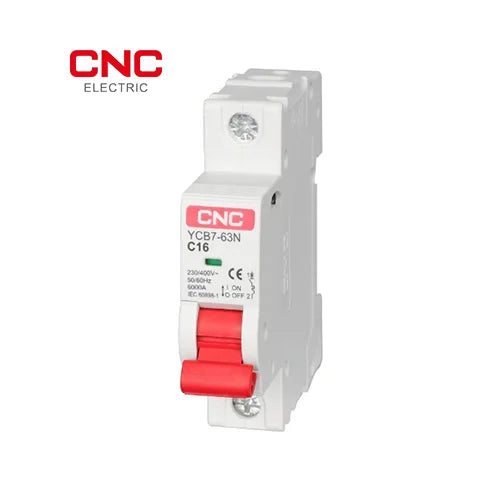

The CNC 1P MCB AC Circuit Breaker YCB7H‑63A is a compact, single-pole miniature circuit breaker designed for reliable protection against overloads and short circuits. Offered in a range of variants from 2 A to 63 A, this breaker is optimized for domestic, commercial, and industrial electrical panels in Pakistan.

Why Choose YCB7H‑63A?

This 1P MCB AC Circuit Breaker is optimized for space-saving installations, ensuring a neat and organized electrical panel setup.

  • Wide Ampere Range: Choose from 2 A, 6 A, 10 A, 16 A, 20 A, 32 A, 40 A, 50A, 63 A to meet specific circuit needs
  • Robust Protection: 6 kA breaking capacity with selectable B, C, D trip curves
  • Voltage Ready: Rated for 230/400 V, suitable for Pakistani mains
  • Safety Certified: Meets IEC/EN 60898‑1, with international certifications (CE, CB, EAC, INMETRO)
  • Superior Protection: Delivers reliable overcurrent, overload, and short circuit protection to safeguard electrical circuits.
  • High Performance: Offers a 6.0KA breaking capacity and versatile tripping curves (B, C, D) to suit various applications.



Specification

Value

Type

Standard IEC/EN 60898-1

Rated Current (In)

 2, 4, 6, 10, 16, 20,  32, 40, 50, 63

Poles

1 Pole

Rated Voltage (Ue)

230/400 V

Insulation Voltage (Ui)

500 V

Rated Frequency

50/60 Hz

Rated Breaking Capacity

6000 A

Rated Impulse Withstand Voltage (Uimp)

4000 V

Dielectric Test Voltage at Industrial Frequency (1 min)

2 kV

Pollution Degree

2

Thermo-Magnetic Release Characteristic

B, C, D

Electrical Life

6000 cycles

Mechanical Life

20000 cycles

Protection Degree

IP20

Ambient Temperature (Daily Average ≤35°C)

-25~+70°C

Storage Temperature

-25~+70°C

Terminal Connection Type

Cable/Pin-type busbar

Terminal Size Top/Bottom for Cable

25 mm² / AWG 18-3

Terminal Size Top/Bottom for Busbar

25 mm² / AWG 18-3

Tightening Torque

2 N·m / 18 In-lbs

Mounting

On DIN rail EN 60715 (35 mm) by means of a fast clip

Connection

From top and bottom

Reference Temperature for Setting of Thermal Element

30°C



Applications in Pakistan

Perfect for household boards, offices, shops, and light industry setups in Karachi, Lahore, Islamabad, and beyond. Ideal for load circuits, motor control protection, and backup safety applications.
