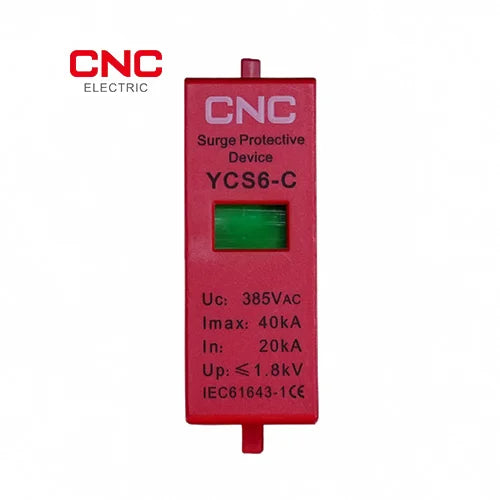

AC SPD 275V, 385V In=20KA Imax=40KA CARTRIDGE Surge Protection Devices YCS6

The YCS6-C series Surge Protection Device, an AC SPD CARTRIDGE, is suitable for TT, IT, TN-S, TN-C, and TN-C-S, the power supply system with the rated voltage up to 230/400V and AC 50/60Hz. Its design corresponds to IEC61643-1. The product is usually installed in the incoming line low voltage distribution box of the building, and it can release 100kA lightning stroke current.

General

●      The YCS6-C Surge Protection Device is designed to protect electrical installations from transient overvoltage caused by lightning or switching operations.

●      It ensures the protection of low-voltage equipment, preserving the longevity and functionality of sensitive devices.

●      The device meets international standards like IEC61643-1, ensuring its reliability and high performance.

AC SPD Cartridge Key Features

1. Enhanced Surge Protection for Electrical Systems
The YCS6-B Surge Protection Device offers high efficiency in protecting electrical circuits from harmful surge events.

●      Nominal discharge current (In) up to 20kA, 30KA.

●      Maximum discharge current (Imax) can handle up to 40kA, 60KA, 80KA.

2. Robust Lightning Surge Defense
Ac SPD CARTRIDGE Designed to absorb and redirect lightning-induced surges, safeguarding electrical infrastructure.

●      Can withstand lightning strike currents of up to 100kA.

●      Protects sensitive electronic devices from power surges.

3. Versatile Compatibility with Power Supply Systems
Ideal for use in multiple types of electrical networks, ensuring widespread application.

●      Compatible with TT, IT, TN-S, TN-C, and TN-C-S systems.

●      Suitable for AC 50/60Hz systems with voltages up to 230/400V.

4. Simple Installation for Quick Deployment
Easy to integrate into existing power setups, ensuring effective protection with minimal effort.

●      Designed to be installed in low-voltage incoming line distribution boxes.

●      Quick installation process for immediate surge protection.

Specifications

●      Type: YCS6-C (CARTRIDGE)

●      Nominal Discharge Current (In): 20kA, 30KA

●      Maximum Discharge Current (Imax): 40kA, 60kA, 80KA

●      Continuous Operating Voltage (Uc): 385V

●      Standard: IEC/EN 61643-1

●      Certificate: CE

How It Works:

Identify:

The way the replaceable SPD cartridge operates is by identifying too strong voltage spikes in the electrical circuit. The SPD absorbs the surge to safeguard the remainder of the electrical system or guides the extra energy to the earth.

The system comes back to normal as the surge passes. Should the surge protection capacity of the cartridge run out.

For example,

Following a significant lightning strike, the device will present a notice suggesting that the cartridge has to be replaced.

Removable SPD Cartridge:

A removable SPD cartridge is an effective and convenient solution for protecting electrical systems from damaging power surges.

Its modular design and ease of replacement ensure that surge protection remains reliable over time, making it an excellent choice for both residential and industrial applications.
