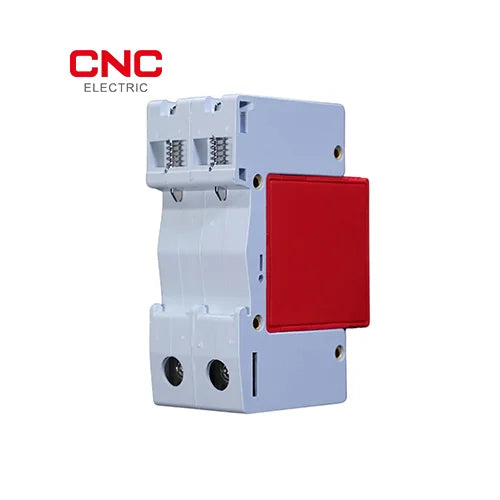

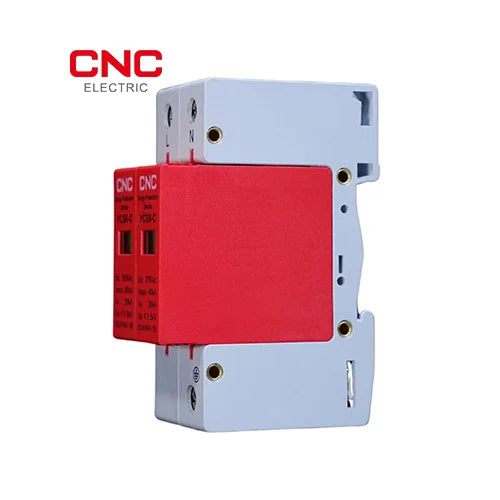

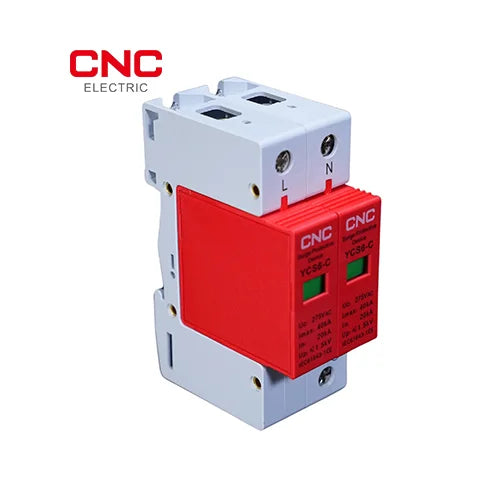

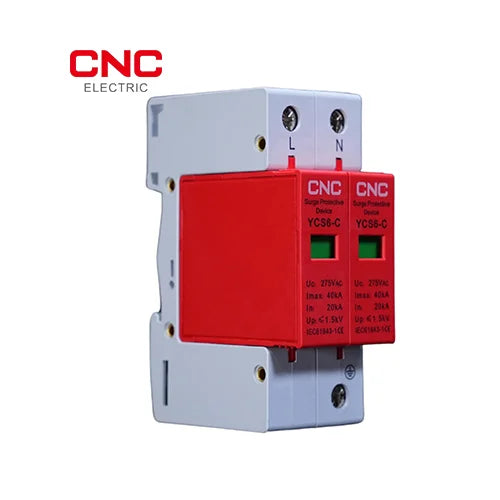

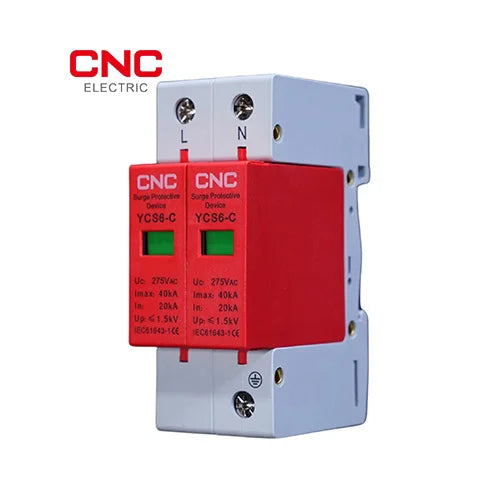

AC 2 Pole 20KA-40KA 275V, 385V, 440V, 750V Surge Protection Devices YCS6

 Ac SPD Key Features

1. Reliable Surge Protection
Engineered to protect electrical equipment from overvoltage and lightning strikes.

●      Handles a nominal discharge current of up to 20 kA and a maximum of 40 kA, 60KA, 80KA.

●      Ideal for safeguarding low-voltage systems in residential and industrial settings.

2. Wide System Compatibility
Surge Protection Device Supports multiple power system configurations for versatile applications.

●      Compatible with TT, IT, TN-S, TN-C, and TN-C-S systems.

●      Designed for power systems with up to 230/400V AC, 50/60Hz.

3. Advanced Voltage Limiting Technology
Incorporates cutting-edge components for enhanced performance.

●      Equipped with a heavy-duty Zinc Oxide piezo resistor for reliable surge limitation.

●      Meets IEC61643-1 and GB standards for surge protection and safety.

4. Easy Installation and Usage
Ac SPD is Convenient and adaptable for various installation scenarios.

●      Designed for incoming line low-voltage main distribution boxes.

●      Provides seamless connection to outer conductor (L), neutral conductor (N), and earthing devices.

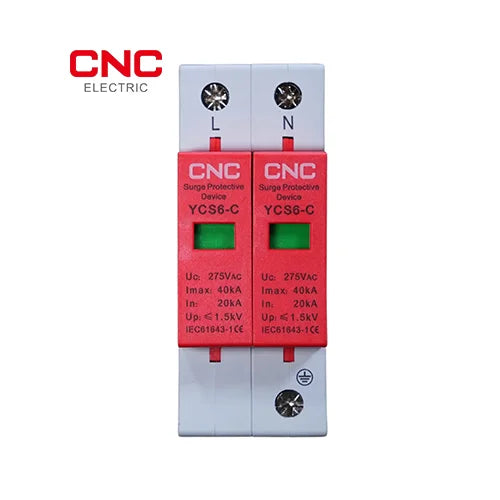

Specifications

●      Type: YCS6-C

●      Poles: 2 Pole

●      Nominal Discharge Current (In): 20kA Max

●      Maximum Discharge Current (Imax): 40kA, 60KA,80KA Max

●      Continuous Operating Voltage (Uc): 275V

●      Standard: IEC/EN 61643-1, GB18802.1, GB50057

●      Certificate: CE

General

●      Suitable for protecting low-voltage electric equipment from lightning strikes and switching overvoltage’s.

●      Acts as equipotential bonding during lightning strikes.

●      Ac SPD can be installed in LPZOA or LPZ1 zones, typically at the incoming line main distribution box.

●      Ensures equipment safety and system stability across diverse electrical setups.

Installation of AC SPD (Surge Protection Device)

To get the best performance and safety from your AC Surge Protection Device (SPD), make sure you follow these important steps when putting it:
1. Where to Mount:

The SPD should be put on a 35 mm standard rail in the main electrical panel or distribution board. Make sure that the installation spot is easy to get to for maintenance and monitoring.

2. Connect the wires:

Hook up the SPD in series with the AC power line. It is important to firmly connect the L (Line), N (Neutral), and PE (Protective Earth) wires to the correct SPD terminals.
3. Right Grounding:

The SPD must have right grounding in order to work properly and safely. Make sure that the PE (Protective Earth) connection has a cross-sectional area big enough to handle possible surges.
4. Conditions of the Environment:

The device can work in places with temperatures between -40°C and +85°C. For the best performance, make sure that these temperature and humidity levels are met at the installation spot.

 AC SPD Cartridge That Can Be Taken Out
The AC SPD's key feature that makes it easier to use and maintain is the cartridge that can be taken out and replaced.
1. Simple to Change:

The SPD has a cartridge that can be taken out and changed without having to disconnect the whole system or do a lot of complicated wiring.

With this function, there will be little downtime when the cartridge needs to be changed.
2. Replacement Indicator:

The machine might have a feature that shows you when the cartridge needs to be changed. In most cases, this is because the cartridge has absorbed a surge. This is done as a safety step to keep the electrical system safe.
