2 Pole Changeover Switch 63A,100A | DIN Rail

Not sure which voltage protector you need?

Try our VA Protector Product Finder Tool — Pakistan's first interactive selector.

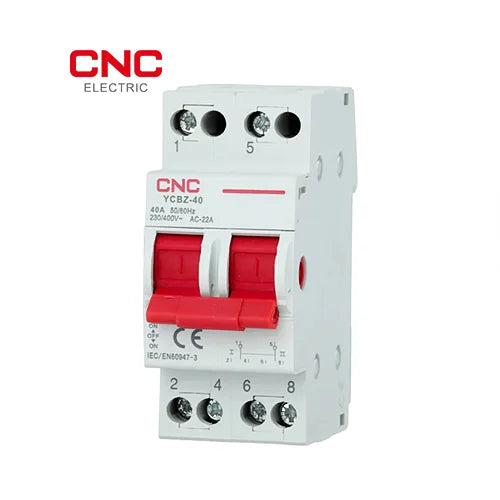

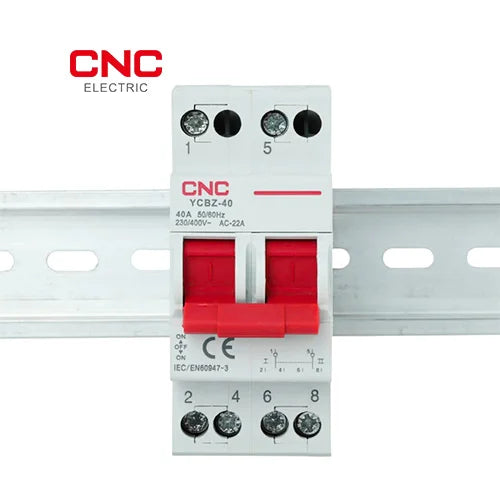

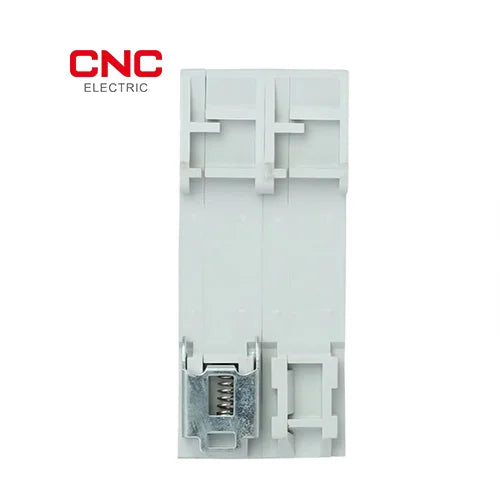

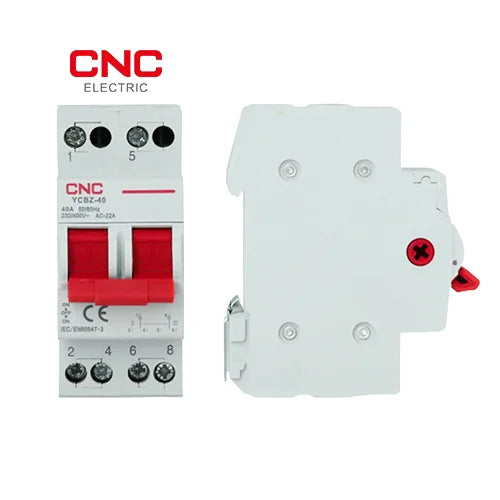

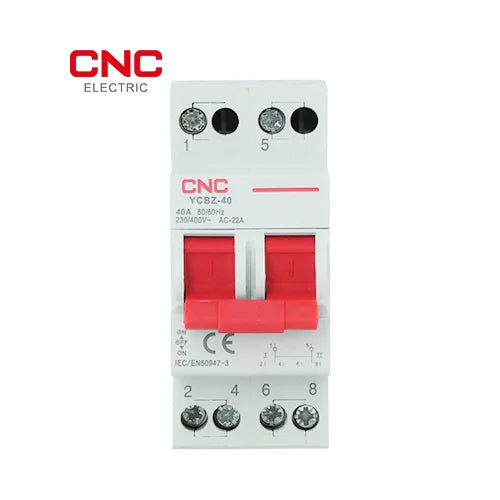

Changeover switch 2 pole 63A is the most common and most practical manual source selector for Pakistani homes because it switches both phase and neutral between two power sources. This CNC Electric Pakistan 2 pole changeover switch is a DIN rail mounted manual transfer switch with three positions: Source 1, OFF, and Source 2. Starting from Rs.1,100, it is ideal for Wapda to generator changeover, inverter input selection, and backup power switching for ACs, fridges, lights, water pumps, UPS charging, and home circuits in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar.

Quick Specs

What This Product Does

This manual changeover switch lets you select one power source at a time. In simple words, it changes the supply from one source to another without letting both stay connected together. That is why buyers search for changeover switch, change over switch price in pakistan, manual changeover switch, wapda generator switch, or generator changeover.

The 2 pole design is important because it switches both the phase and the neutral. That makes it safer and more suitable for most home installations than a 1 pole changeover, which switches only the phase. For Pakistani homes, 2 pole is usually the better answer because it isolates the source more cleanly and reduces confusion in mixed utility-generator or utility-inverter setups.

This device does not itself provide overload or short-circuit protection for downstream circuits. It is a source selector, not a protection breaker for branch circuits. You still use MCBs or other protection devices after the changeover depending on the design. If you need automatic transfer, see the ATS 2P 100A or ATS 2P YCQR.

Why 2 Pole Is Better Than 1 Pole for Home Use

In many Pakistani homes, people casually install a 1 pole selector because it is cheaper, but the 2 pole changeover is the safer and more complete home choice. When both phase and neutral are switched together, you reduce the chance of shared-neutral confusion and mixed-source issues. That is especially important where utility supply, generator output, and inverter arrangements have been modified over time by different electricians.

This is why the 2 pole manual changeover is widely used for home backup power. Whether the load is lights, fans, refrigerator, UPS charging, kitchen sockets, or selected AC circuits, the 2 pole format gives better isolation discipline. The changeover switch guide is worth reading if you are comparing manual and automatic options.

Selection Guide

How to Install

A changeover switch should be installed by a licensed electrician because source interlocking, cable sizing, and downstream protection must all be correct.

• Turn off all sources and confirm isolation before wiring.
• Mount the 2 pole changeover on the DIN rail inside the DB or source selection enclosure.
• Connect Source 1, Source 2, and outgoing load terminals exactly as marked by the wiring plan.
• Confirm that only one source is selected at a time and the OFF position isolates the output correctly.
• After installation, test switching behavior under controlled conditions before normal use.

What This Product Does NOT Protect Against

This change over switch does not provide automatic transfer, so if you want hands-free switching use an ATS. It does not provide overload or short-circuit protection for branch circuits, so use MCBs after the changeover where needed. It does not handle voltage fluctuation, so add a VA protector if you need over and under voltage protection.

It also does not act as a surge protector. For lightning or switching surges, use an SPD on the correct side of the installation. This product only does one job: it manually changes the connected source.

CNC vs Schneider and Local Brands

Cross-Category Recommendations

If you are buying this 2 pole changeover switch, also compare the 1P changeover, 3P changeover, and 4P changeover for other source configurations. If you want automatic switching, compare the ATS 2P 100A, ATS 2P YCQR, and ATS 4P YCQR. For voltage protection, add the VA protector.

Browse MC4 connectors, DC cables, DC circuit breakers, DC SPD collection, solar bundles, AC circuit breakers, AC SPDs, voltage protectors, RCCB and RCBO, manual changeover switches, automatic transfer switches, DB boxes, and MCCBs for complete protection planning.

Related Products from CNC Electric

• 1P Changeover — Rs.550
• 3P Changeover — compare for three-phase use
• 4P Changeover — compare for full multi-pole switching
• 2P EP Changeover — Rs.1,400
• ATS 2P 100A — Rs.5,500
• ATS 2P YCQR — Rs.8,250
• VA Protector — Rs.1,700

FAQs

What is the changeover switch price in Pakistan for this model?

This 2 pole CNC Electric Pakistan changeover starts from Rs.1,100 depending on the selected amp rating.

Why is 2 pole better than 1 pole for homes?

Because 2 pole switches both phase and neutral, which is generally safer and more appropriate for Pakistani home backup switching.

Can I use this as a Wapda to generator switch?

Yes. This is one of the most common uses of a 2 pole manual changeover switch.

Is this an automatic transfer switch?

No. This is a manual transfer switch. You have to change it by hand. For automatic operation, choose an ATS.

Does it protect against overload?

No. Use MCBs or other protective devices on the outgoing circuits after the changeover.

Can I use it for inverter source selection?

Yes, many installers use manual changeovers to select between utility, generator, and inverter-backed arrangements according to the wiring plan.

Which rating should I choose?

Choose the amp rating according to the actual feeder current, cable size, and system design. A licensed electrician should confirm the selection.

Do I still need a voltage protector?

Yes, if your site suffers from high or low voltage. A changeover only selects the source; it does not control voltage.

Why buy from CNC Electric Pakistan?

Because you get a practical price in Pakistan, free delivery, a 5-year warranty, and matching manual and automatic transfer products in one place.

For a complete backup power setup, compare changeovers, ATS switches, voltage protectors, SPDs, and circuit breakers. CNC Electric Pakistan offers free delivery, 5-year warranty support, and practical switching solutions across Pakistan. WhatsApp us at 0326-1111376.
