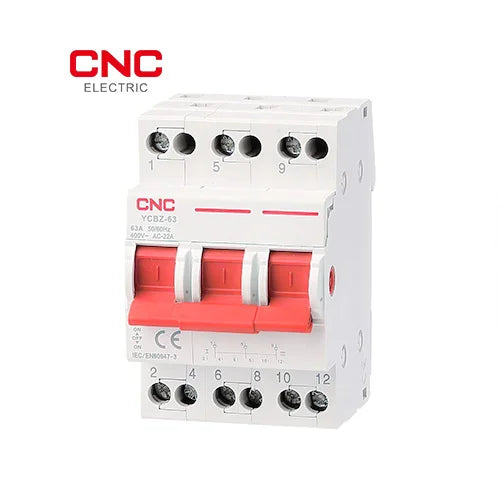

AC 3P Changeover Breaker Din Rail 63A - YCBZ

A 3 pole changeover breaker is the practical answer when you need manual source selection in a three-phase panel without moving to a larger plate-mounted switch or a costlier ATS. This CNC Electric listing is tracked in the project product data at Rs.1,500 for the 63A 3P DIN-rail version. It suits workshops, pump panels, generator boards, inverter bypass arrangements and compact utility DBs where the operator is expected to transfer source deliberately and safely.

The important point is this: this is a manual transfer device, not an automatic one. Its job is to let you choose one source, isolate at the center OFF position, and then move to the second source. In Pakistan, that matters in real settings where WAPDA supply, generator backup and inverter supply are all part of the same conversation. A neat DIN-rail form also helps when the panel builder wants the device inside the enclosure instead of sticking out like an external rotary plate switch.

Key Features

• 3 pole manual changeover breaker for three-phase source selection
• 63A local sale variant in the current project data
• DIN rail mounting for internal panel installation
• 1-0-2 transfer logic for source one, OFF, and source two
• IEC 60947-3 switch disconnector class in the official YCBZ family
• Better fit than EP type when the goal is compact internal mounting
• Useful for generator, inverter and utility source transfer in non-automatic setups

Technical Specifications

This description uses the local sale data currently available in the project files plus official YCBZ family technical references. The current live page for this exact 3 pole 63A listing was not surfaced cleanly during checking, so body dimensions beyond the published family drawing, terminal diagram specifics for the local sales page, and any local selector-specific accessory data have not been guessed.

Product Range and Models

This is the cleaner option when you need three-phase manual transfer inside a cabinet and do not need a neutral-switched 4P device. If the project specifically requires neutral isolation along with the three phases, move up to a 4 pole changeover. If the site requires automatic transfer on outage, move to an automatic transfer switch instead of trying to force a manual unit into an automatic duty.

Applications in Pakistan

This type of 3 pole DIN rail changeover breaker makes sense in smaller three-phase boards where manual transfer is acceptable and the operator can physically move the switch between sources. In Lahore, that can mean workshop panels with grid and generator supply. In Karachi, it suits compact utility boards in commercial buildings where panel space is tight. In Faisalabad, smaller production lines and service boards often need a clean internal source selector rather than a larger external plate type. The main advantage is neat panel integration, not automation.

How to Choose the Right 3 Pole Changeover Breaker

3 Pole DIN Changeover vs Alternatives

What This Product Does NOT Protect Against

This product does not correct bad voltage, stop surge damage, replace upstream short-circuit protection, or behave like an automatic transfer switch. It is not a voltage protector, not an SPD, and not a substitute for MCB or MCCB coordination. It is a manual source selector for normal operating conditions.

If the board also needs protection, add the right circuit breakers, a suitable voltage protector, proper surge protection, and if the site must transfer automatically, the correct ATS.

Installation Guide

1. Mount the unit on a 35mm DIN rail inside a rigid enclosure with clear source and load identification.
2. Bring source I, source II and load conductors according to the intended 3P 1-0-2 panel layout.
3. Keep conductor sizing appropriate for the current class and panel design. The official 63A family guide shows a 50mm² family terminal reference.
4. Before energizing, verify that source I, OFF, and source II positions are physically correct and there is no backfeed confusion.
5. Test manual operation several times without load first, then commission the full board only after confirming correct transfer logic.

Related Products

Frequently Asked Questions

What is a 3 pole changeover breaker used for?

It is used for manual transfer between two three-phase sources, usually mains and generator or mains and inverter, inside a compact panel.

What price is the 3 pole changeover breaker in Pakistan?

In the current project product data, this 63A 3 pole DIN rail listing is tracked at Rs.1,500.

Is this a changeover switch or a breaker?

It is sold as a changeover breaker, but functionally you should think of it as a manual changeover / switch disconnector for source selection under normal conditions.

Can this replace an ATS?

No. This unit is manual. If the source must transfer automatically during outage, choose an ATS.

When should I choose 4 pole instead of 3 pole?

Choose 4 pole when the design requires neutral switching along with the three phases. Choose 3 pole when neutral is not being transferred in that way.

Is this suitable for generator backup in Pakistan?

Yes, when manual transfer is acceptable and the panel is designed correctly with proper upstream protection and clear source identification.

Can I mount this inside a DB box?

Yes. The DIN rail format is exactly why this product is useful in compact internal-panel layouts.

Does this protect against voltage fluctuation?

No. It selects the source only. Voltage fluctuation needs a voltage protector, and surge events need SPD protection.

This 3 pole changeover breaker is the right fit when you need manual three-phase source transfer inside a compact panel and want DIN-rail mounting instead of a larger external plate switch. It suits workshop backup boards, generator panels, inverter selection points and compact utility boards where manual transfer is acceptable. For stock confirmation, panel-selection help and delivery across Pakistan, contact CNC Electric Pakistan on WhatsApp 0326-1111376. Orders above Rs.10,000 qualify for free delivery.
