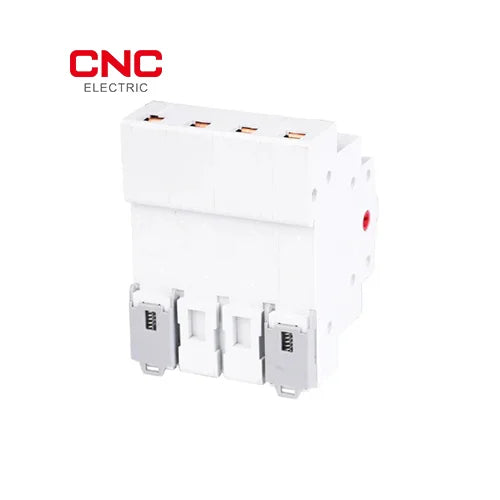

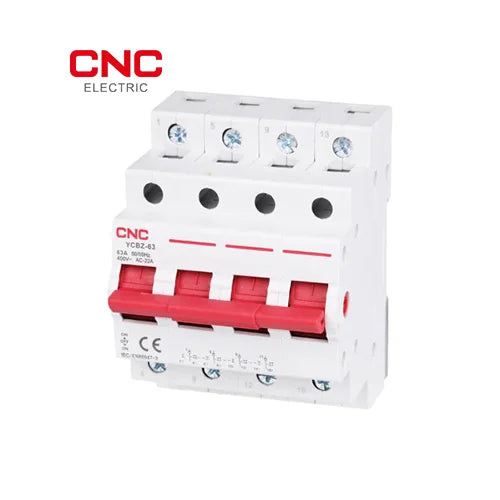

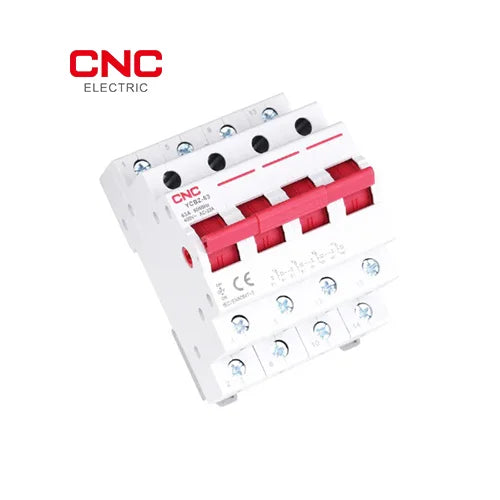

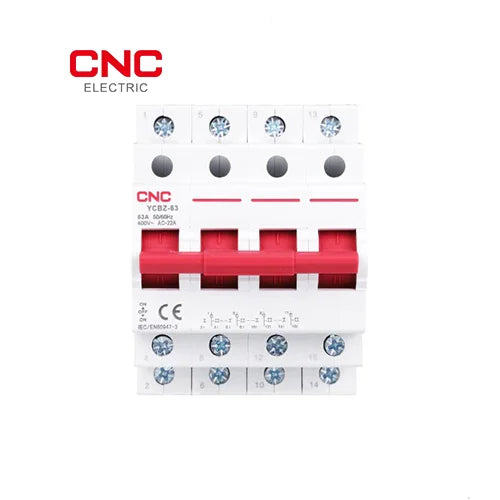

AC 4P Changeover Breaker Din Rail 63A, 100A, 125A - YCBZ

This 4 pole changeover breaker gives manual source transfer inside the panel without moving to a large external rotary switch or an automatic ATS. Available in 63A, 100A, and 125A, it fits mains-to-generator, mains-to-inverter, and source-selection boards where the operator wants a clean DIN rail layout. Price starts at Rs.2,450 from CNC Electric Pakistan.

Key Features

• 4 pole manual source transfer for phase + neutral switching
• DIN rail mounting for compact internal panel layouts
• 1-0-2 switching positions for clear source selection
• Available in 63A, 100A, and 125A local variants
• IEC 60947-3 switch disconnector class
• Useful for generator panels, inverter transfer boards, and utility backup systems

Technical Specifications

Product Range and Prices

Applications in Pakistan

This 4 pole version is the right pick when neutral switching matters. That is common in generator panels, inverter transfer boards, and three-phase backup systems where the installer wants phase plus neutral isolation during source change. It fits workshop panels, commercial utility rooms, and small factory backup boards better than a 3-pole unit when the panel design calls for a switched neutral.

How to Choose the Right Variant

Comparison

What This Product Does NOT Protect Against

This switch selects the source. It does not stop overvoltage, undervoltage, surge damage, short circuit, or low generator frequency. It is not an automatic transfer switch. It also does not replace the upstream breaker or MCCB protecting the panel.

For a complete backup board, pair it with the right Circuit Breakers, Voltage Protectors, Surge Protection Devices, and where automatic transfer is required, the correct Automatic Transfer Switches.

Installation Guide

1. Mount the switch on a 35mm DIN rail inside a rigid enclosure.
2. Identify source I, source II, and load terminals before wiring.
3. Use the correct conductor size for the selected amp rating.
4. Check the center OFF position and source isolation before energizing.

Related Products

Related categories worth checking: Changeover Breakers, Changeover Switches, Automatic Transfer Switches, Voltage Protectors, SPD, Circuit Breakers, DB Boxes, Fire Extinguishers, Voltage Protector Finder Tool, and Types of Circuit Breakers Guide.

Frequently Asked Questions

What is this used for?

Manual source transfer between two supplies in a 4-pole panel.

What is the price in Pakistan?

Rs.2,450 for 63A, Rs.7,500 for 100A, and Rs.8,500 for 125A.

Why choose 4 pole instead of 3 pole?

Choose 4 pole when neutral switching is also required.

Is it automatic?

No. This is a manual 1-0-2 switch.

Is it DIN rail mounted?

Yes. It mounts on standard 35mm DIN rail.

Can it replace an ATS?

No. It cannot transfer power automatically.

Does it include protection?

No. Use breakers, voltage protection, and SPD separately.

Where do I get wiring help?

WhatsApp 0326-1111376 for wiring guidance and panel selection.

This 4 pole DIN rail changeover breaker is the right choice when you need manual source selection with neutral switching inside a compact panel. For wiring help, stock confirmation, and bulk pricing, WhatsApp 0326-1111376. Free delivery applies on qualifying orders above Rs.10,000.
