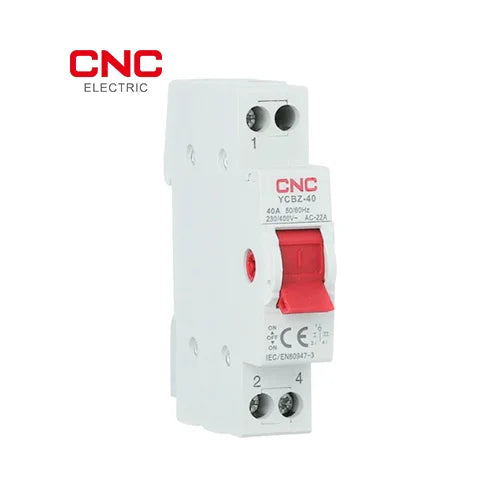

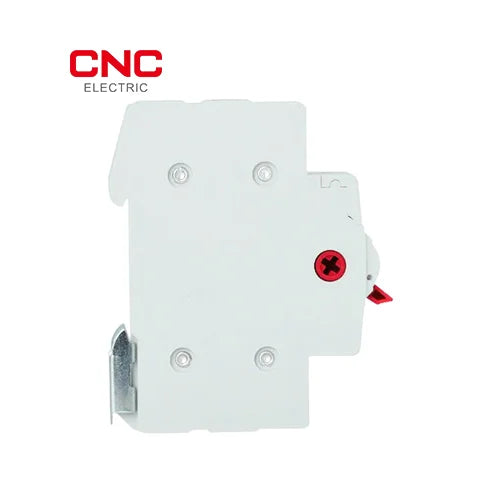

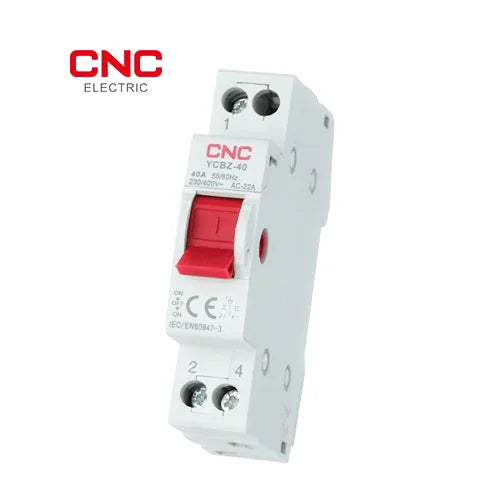

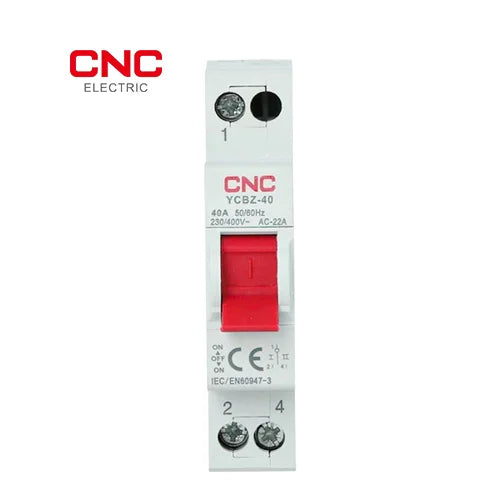

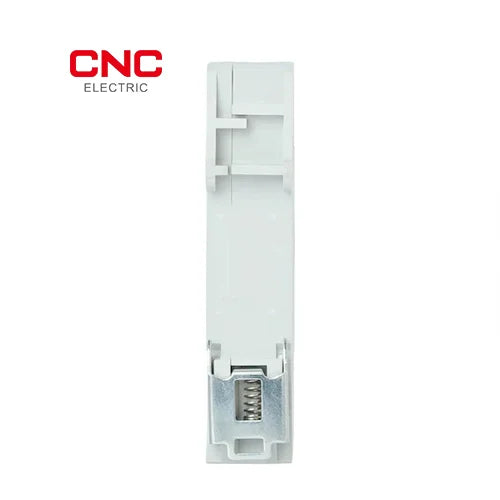

AC 1 Pole Changeover Breaker Din Rail 63A - YCBZ

General

●      Purpose: Changeover Breaker designed for switching on, loading, and breaking circuits under normal conditions.

●      Versatility: Widely applicable in residential, non-residential, energy industry, and infrastructure systems.

●      Functionality: Operates efficiently as a switch disconnector.

●      Classification: Instantaneous release types tailored for specific applications (B, C, D).

Changeover Breaker Key Features

1. Comprehensive Circuit Protection
Provides reliable protection against overload and short circuits.

●      Overload Protection: Safeguards circuits from excessive current.

●      Short Circuit Protection: Instantly disconnects power during fault conditions.

2. Versatile Applications
Designed for use in diverse environments.

●      Residential and Non-Residential Use: Suitable for homes, offices, and industrial spaces.

●      Energy Source Industry: Ideal for applications in energy infrastructure and systems.

3. Flexible Performance Options
Classified based on the type of instantaneous release to meet various requirements.

●      Type B (3-5) ln: For standard applications with lower inrush currents.

●      Type C (5-10) ln: For general industrial use with moderate inrush currents.

●      Type D (10-20) ln: For heavy-duty applications with high inrush currents.

4. Reliable Switching and Control
Can load, switch, and break circuits under normal conditions.

●      Switch Disconnectors: Acts as a reliable changeover switch for safe operation.

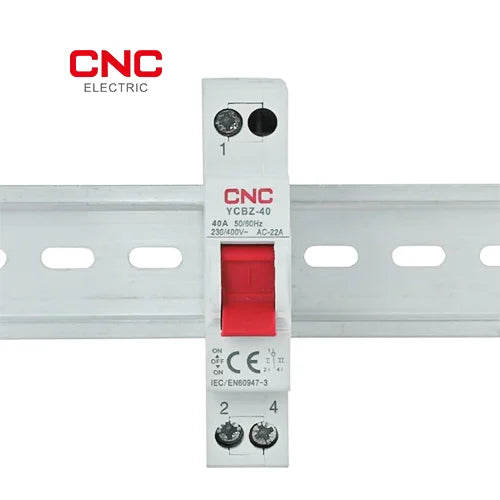

●      Easy Installation: Designed for DIN rail mounting, simplifying installation.

Changeover Breaker Specification

●      Type: YCBZ-63 1 Pole Changeover Breaker

●      Rated Current: 63A

●      Mounting: DIN Rail

●      Release Types: Type B, Type C, Type D

●      Protection Features: Overload and short circuit

●      Application: Residential, commercial, and industrial

Application

A switching breaker is an important electrical safety device that lets you switch between two different power sources.

This is usually done when you need a backup power source. It makes sure that switching from the main power source to the backup power source goes smoothly, so the electrical system doesn't get damaged.

It is commonly used in homes, businesses, and factories because it lets moving happen smoothly with any help from a person, making sure that the power stays on.

This breaker also protects against faults, overloads, and short circuits, which makes the electricity safer and more reliable overall.
