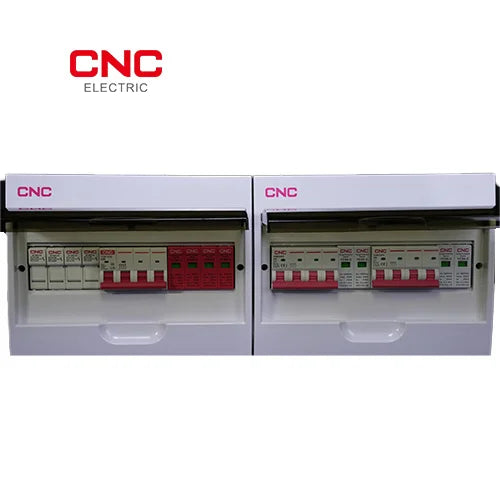

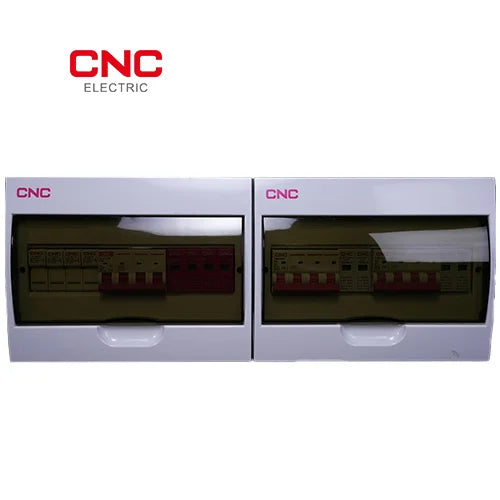

20KW On Grid Solar DB Bundle With Fuses - Advanced Fuse Protection

20KW Solar DB Bundle with Fuses (Premium) is a practical 20kw solar db option for Pakistani buyers who want a proper electrical product instead of improvised market stock. Starting from Rs.32,050, it is suited to real use cases in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar where reliability, neat installation, and future maintenance matter.

What’s Inside This Bundle

CNC Bundles vs Competitors

Missing DC SPD in a solar installation means a single lightning-related surge can destroy a Rs.200,000-500,000 inverter. CNC bundles include matched, tested components with warranty coverage — not loose parts from mixed brands.

Compatible Inverters

This bundle's DC protection is rated for 1000V DC systems. It is compatible with:

• Huawei SUN2000 10-20KTL (max 1,100V DC)
• Fronius Symo Gen24 Plus (max 1,000V DC)
• Sungrow SG-KTL on-grid series (max 1,000V DC)
• Sofar HYD 3-phase series (max 1,000V DC)
• GoodWe ET series (max 1,100V DC)
• Growatt MOD TL3 on-grid (max 1,000V DC)

For budget hybrid inverters like Knox, Inverex, or MaxPower (max 500V DC), see our hybrid solar DB bundles which use 600V-rated DC protection.

Quick Specs

What This Product Does

This 20kW on-grid solar bundle is designed to save time for installers and buyers by giving a pre-matched protection board concept instead of collecting separate MCBs, SPDs, fuses, rails, busbars, and enclosure parts one by one. That matters in Pakistan because project delays, mixed-brand parts, and improvised sizing often create more problems later than the initial price difference.

The fuse tiers are aimed at more professional multi-string installations. Once several strings are involved, selective protection becomes more useful because the installer can isolate a problem string instead of treating the whole array as one big block. This makes troubleshooting cleaner and often reduces downtime during service.

For homes, offices, warehouses, factories, plazas, and mixed-use commercial buildings in Pakistan, the real question is not just solar db price in Pakistan but whether the board matches the true system size, string count, cable exposure, and power-quality risk. A 20kW on-grid solar board should not be guessed from a smaller system template.

Selection Guide

How to Install

Installation should always be completed by a licensed electrician, panel builder, or qualified solar installer. Correct cable size, torque, labeling, earthing, and testing matter as much as the product itself.

• Plan access, labels, and future maintenance space from day one.
• Document string numbering carefully.
• Coordinate with inverter OEM instructions and commercial electrician practices.
• Perform a full commissioning record for the client or maintenance team.

What This Product Does NOT Protect Against

Even this premium 20kW bundle is only one part of a larger commercial design. Industrial sites must still verify upstream coordination, cable sizing, earthing, and backup strategy.

CNC vs Schneider / Other Brands

Cross-Category Recommendations

If you are buying this product, also explore circuit breakers, DC circuit breakers, AC breaker collection, DC breaker collection, MCCB collection, AC SPD collection, DC SPD collection, voltage protectors, voltage regulator / stabilizer collection, RCCB and RCBO collection, manual changeover switches, EP changeover switches, types of circuit breakers, MCB size chart for Pakistan, trip curves guide, SPD full form guide, voltage protector vs stabilizer, solar DB box guide, ATS. These links help buyers compare the right category before ordering instead of treating every electrical product as if it does the same job.

Useful related options include 20KW DC Surge Rs.26,350, 15KW + Fuses Rs.32,050, ATS.

Related Products from CNC Electric

• 20KW DC Surge — Rs.26,350
• 15KW + Fuses — Rs.32,050
• ATS

Why Pakistani Buyers Choose This Product

Pakistani solar buyers often ask whether it is better to buy each part separately or use a matched DB bundle. Separate sourcing can look cheaper at first, but it also increases the risk of mismatched ratings, forgotten accessories, poor enclosure sizing, and longer site assembly time. A matched bundle reduces that friction.

These bundle tiers also make the upgrade path clear. Standard is the budget starting point. SPD tiers add the practical minimum surge layer. Fuse tiers add more professional string isolation. VA tiers add sustained voltage protection for clients who want the most complete protection chain.

For Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar, the strongest buying logic is simple: choose the board that matches the actual system size and site risk, not just the lowest sticker price.

For fire suppression inside the DB box, add an aerosol fire extinguisher. This compact DIN rail unit auto-deploys non-toxic aerosol to protect wiring and breakers from electrical fires.

FAQs

What is the 20kw solar db price in Pakistan?

This product starts from Rs.32,050. CNC Electric Pakistan sells across Pakistan with free delivery and a 5-year warranty.

Is this available in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar?

Yes. The product is intended for buyers across Pakistan and can be compared online before ordering.

Can a normal electrician install it?

A qualified electrician or solar installer should handle installation so cable size, torque, labeling, and protection coordination are correct.

How do I choose the right size or variant?

Use the selection guide in this description as a starting point, then confirm the final rating from the actual load current, system voltage, string count, and site conditions.

Is CNC better than cheap local alternatives?

CNC Electric Pakistan is usually chosen because it offers branded products, coordinated related items, clearer specifications, free delivery, and a 5-year warranty.

Does this replace every other protection device?

No. Good electrical design uses each product for its actual purpose. Breakers, RCBOs, SPDs, voltage protectors, fuses, timers, and connectors all do different jobs.

Can I use this in solar installations?

In many cases yes, especially where the brief itself mentions solar, DB boxes, or panel work. Final selection should still be matched to the real design.

Why buy from CNC Electric Pakistan?

Because buyers want a practical price in Pakistan, matching accessories, and a complete ecosystem instead of mixing unknown parts from multiple sellers.

Why is 20kW considered commercial territory?

Because system size, panel count, cable routing, and fault current complexity all move beyond normal home-installation habits at this level.

Should a factory buy this instead of a smaller bundle?

Yes if the actual PV array is around this size, because the board should be matched to real current, string count, and maintenance needs.

For system planning, compare the linked collections and guides above, then order the right matched components instead of guessing. CNC Electric Pakistan offers free delivery and a 5-year warranty. WhatsApp us at 0326-1111376.
