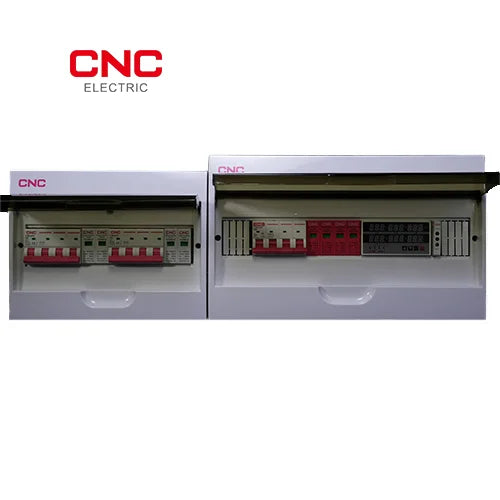

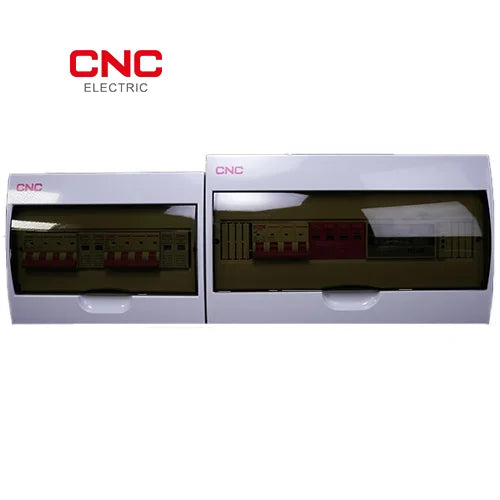

12KW On Grid Solar DB Bundle With VA Protection - Voltage & Ampere Protection

Claude Code note: the Shopify handle appears to mention fuse protection, but the batch brief describes this as a VA protection bundle. Please verify the exact live product before pushing.

What’s Inside This Bundle

CNC Bundles vs Competitors

Missing DC SPD in a solar installation means a single lightning-related surge can destroy a Rs.200,000-500,000 inverter. CNC bundles include matched, tested components with warranty coverage — not loose parts from mixed brands.

Compatible Inverters

This bundle's DC protection is rated for 1000V DC systems. It is compatible with:

• Huawei SUN2000 10-20KTL (max 1,100V DC)
• Fronius Symo Gen24 Plus (max 1,000V DC)
• Sungrow SG-KTL on-grid series (max 1,000V DC)
• Sofar HYD 3-phase series (max 1,000V DC)
• GoodWe ET series (max 1,100V DC)
• Growatt MOD TL3 on-grid (max 1,000V DC)

For budget hybrid inverters like Knox, Inverex, or MaxPower (max 500V DC), see our hybrid solar DB bundles which use 600V-rated DC protection.

12KW On Grid Solar DB Bundle With VA Protection is a 12kw solar db pakistan solution for buyers who want a complete, pre-matched protection board instead of collecting random parts from the market. Starting from Rs.24,700, this bundle is built for Pakistan where WAPDA fluctuation, load shedding, lightning season, and rushed solar installs can damage expensive inverters and connected loads. For CNC Electric Pakistan customers in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar, this bundle is easier to understand because it clearly matches a 12kW system and a defined buyer profile: larger 3-4 bedroom homes, villas with multiple ACs, and small offices.

Quick Specs

What This Product Does

This bundle is designed to remove guesswork from solar DB selection. Instead of asking a solar installer to source separate DC breakers, AC SPDs, DC SPDs, fuses, voltage protectors, and enclosure items one by one, you get a matching package built around the actual site goal. That matters in Pakistan because solar buyers often discover too late that their system is only half protected.

The reason someone buys this specific tier instead of a lower tier is simple: on-grid solar DB with VA protection focused on WAPDA fluctuation safety for the inverter. If your job is more basic, you may choose a lower solar bundle. If your site is more exposed, more expensive, or more uptime-sensitive, stepping into this tier is usually cheaper than one inverter failure. This is especially relevant for AC circuits, geyser backup lines, water pump lines, fridge circuits, washing machine loads, solar inverter outputs, and UPS-supported essential circuits that all rely on a healthy main electrical system.

Compared with local improvised boards, CNC Electric Pakistan makes the decision easier by offering a known ladder of protection instead of mixed market items. That lets buyers in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar compare real choices by system size, not by guesswork.

Where This Bundle Fits Best in Pakistan

For this 12kW package, the best fit is larger 3-4 bedroom homes, villas with multiple ACs, and small offices. In practical terms, that means the bundle is aimed at buyers who want the installation to look professional, stay serviceable, and reduce the chance of avoidable solar downtime. It is not just about 'solar chal raha hai' — it is about whether the solar DB is ready for Pakistan's voltage reality.

Because CNC Electric Pakistan offers solar DB bundles together with voltage protectors, surge protectors, DC surge protectors, DC breaker products, and DB boxes, buyers can keep the whole protection chain under one store, with free delivery and a 5-year warranty.

System Size and Buyer Selection Guide

What Is Included Conceptually

At project level, this means the bundle works best when paired with good wiring practice, correct earthing, proper cable routing, and a licensed electrician. You can also cross-check the planning logic through the solar DB box guide and then compare with DC items or solar bundle options if your installer wants a different tier.

How to Install

• Have a licensed electrician or qualified solar installer confirm that the bundle matches the actual inverter size, cable routes, and string arrangement.
• Mount the DB and install all AC/DC protective devices on the intended rails and terminations according to the final single-line diagram.
• Verify polarity, cable sizes, earthing, torque on terminals, and SPD placement before energizing the system.
• Test breaker operation, voltage thresholds, and any fuse or surge indication windows before handover.
• Label incoming, outgoing, inverter, grid, and maintenance isolation points so future troubleshooting is simple.

What This Product Does NOT Protect Against

Even when a bundle includes voltage protection, it still does not replace good earthing or a dedicated RCCB / RCBO for human shock protection on AC distribution circuits.

No solar DB bundle replaces careful branch design, so outgoing home or facility circuits still need proper MCBs or MCCBs where required.

If a lower tier excludes fuse isolation or full surge coverage, you may still need higher-level upgrades such as DC SPDs, AC SPDs, or the next premium solar bundle tier.

CNC vs Schneider and Local Brands

Cross-Category Recommendations

If you are buying this bundle, also consider 12KW SPD Rs.26,350, 12KW Fuse Rs.32,050, 10KW VA Rs.30,100.

For planning and cross-checking, browse AC circuit breakers, DC circuit breakers, AC breaker collection, DC breaker collection, MCCBs, AC SPDs, DC SPDs, voltage protectors, voltage regulators / stabilizers, RCCB / RCBO, manual changeover switches, automatic transfer switches, DB boxes, magnetic contactors, solar DB bundles, MC4 connectors, DC cables.

For deeper educational research, read types of circuit breakers, MCB size chart for Pakistan, B C D trip curves guide, SPD full form guide, voltage protector vs stabilizer, solar DB box guide, changeover guide, MCB vs MCCB vs ACB guide.

Related Products from CNC Electric

• 12KW SPD — Rs.26,350
• 12KW Fuse — Rs.32,050
• 10KW VA — Rs.30,100
• Solar DB Bundles — multiple sizes and tiers
• Solar / DC Items — complete supporting range

FAQs

What is the 12kW solar DB price in Pakistan?

This bundle starts from Rs.24,700. CNC Electric Pakistan offers free delivery across Pakistan and a 5-year warranty on the supplied protection package.

Who should buy this 12kW solar DB bundle?

This package is best for larger 3-4 bedroom homes, villas with multiple ACs, and small offices that want a matched protection tier instead of mixed market parts.

Is this better than buying separate parts one by one?

For most buyers, yes. A bundle reduces mismatching risk, simplifies purchasing, and makes it easier to hand one list to the installer.

Does this bundle include surge protection?

That depends on the tier. Check whether the bundle includes AC SPD and DC SPD stages. If your project is in a high-risk area, SPD coverage should not be skipped.

Do I still need a voltage stabilizer?

A voltage stabilizer and a voltage protector do different jobs. Where grid fluctuation is severe, many buyers compare solar bundles with voltage stabilizers and voltage protectors to decide the final stack.

Can this be used with battery backup or hybrid systems?

Only if the bundle is designed for that architecture. Hybrid systems need battery-side protection logic as well, so use a hybrid bundle rather than assuming every on-grid bundle is interchangeable.

Can a normal electrician install this?

A qualified solar installer or licensed electrician should install it, because correct AC/DC separation, polarity, earthing, and surge placement matter.

Why buy from CNC Electric Pakistan instead of a local assembler?

Because buyers want clear pricing, documented product families, internal compatibility, free delivery, and a 5-year warranty instead of anonymous mixed parts.

For bundle selection help, WhatsApp us at 0326-1111376.
