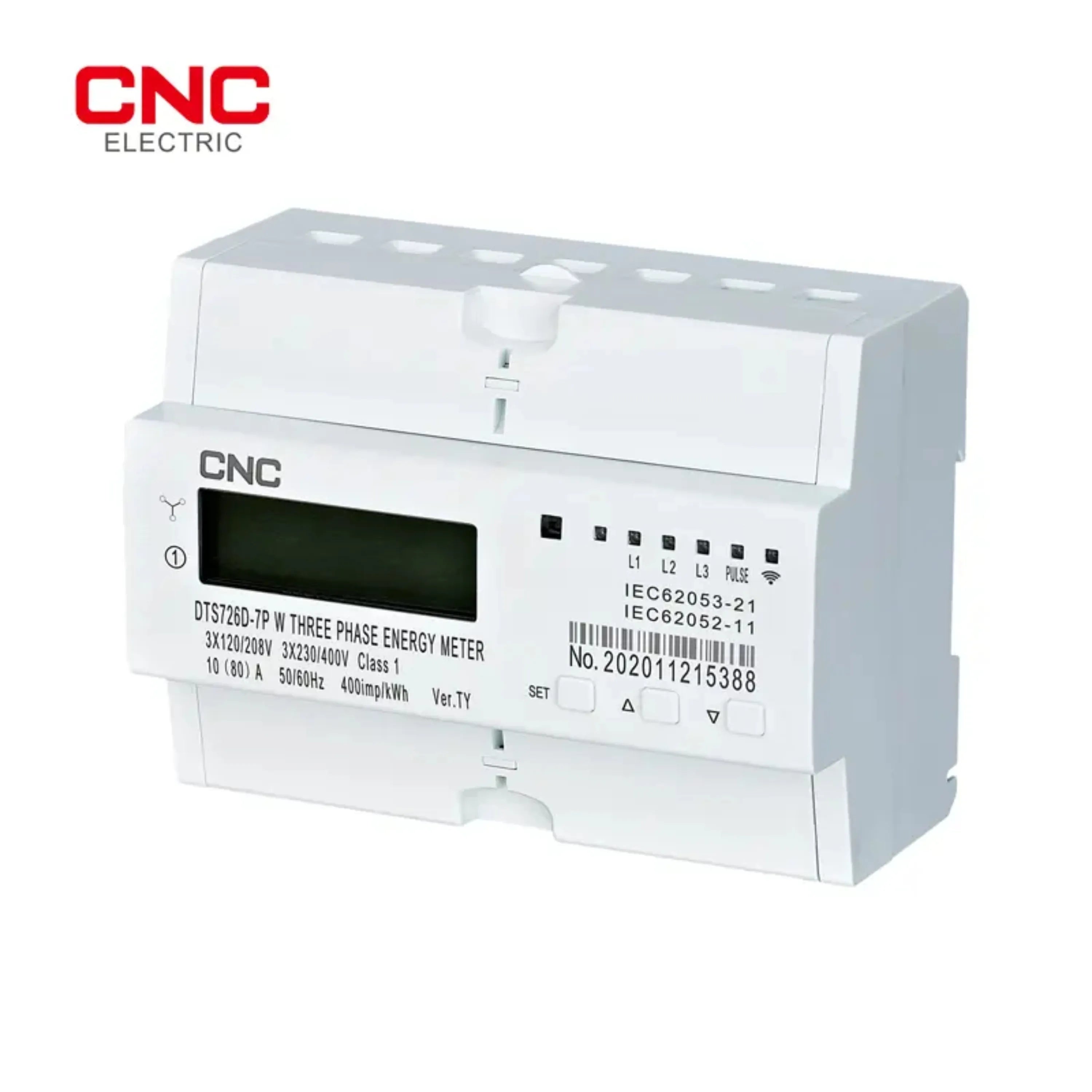

WiFi Three Phase Energy Meter (DIN Rail) DTS726D-7P

WiFi Three Phase Energy Meter (DIN Rail) DTS726D-7P – RS485 Modbus, Tuya/Smart Life kWh Monitoring

Rs.37,000 Rs.35,000
WiFi Three Phase Energy Meter (DIN Rail) DTS726D-7P

WiFi Three Phase Energy Meter (DIN Rail) DTS726D-7P – RS485 Modbus, Tuya/Smart Life kWh Monitoring

Rs.37,000 Rs.35,000
Description

If you want accurate three-phase power monitoring with remote access, the DTS726D-7P WiFi Three-Phase Energy Meter is built for modern electrical panels. Designed for three phase four wire (3P4W) systems, it measures bi-directional active energy (import/export kWh) and displays live electrical parameters like voltage, current, power (kW), reactive power (kVAR), power factor, and frequency—right on the LCD and inside your mobile app.

This model supports both WiFi (802.11 b/g/n) and RS485 (MODBUS-RTU), making it ideal for smart homes, commercial panels, industrial distribution boards, generators, and energy management setups where you need both app convenience and professional automation integration.

 Key Features

  • WiFi Smart Monitoring (Tuya Smart / Smart Life App)
    View consumption, track usage trends, and monitor key parameters remotely via mobile app.
  • RS485 Communication + MODBUS-RTU Protocol
    Connect to BMS/SCADA/PLC/IoT gateways for professional energy management and automation.
  • Bi-Directional Energy Metering (Import / Export kWh)
    Perfect for sites where energy flow can reverse (e.g., solar/net metering side monitoring).
  • Real-Time Electrical Parameters on LCD + App
    Voltage, current, active power, reactive power, PF, frequency, active/reactive energy—clear and live.
  • Timer & Delay Control + Remote ON/OFF
    Scheduling, delay control, and remote switching through the app for smarter energy control.
  • Offline Manual Control
    Control via physical button when WiFi isn’t available.
  • 35mm DIN Rail Mount (Compact Panel Friendly)
    Clean installation in DBs, distribution panels, and switchgear.
  • Long-Term Data Storage
    Energy data stored in memory for long retention even after power loss (as specified for this series).

 Best Use Cases (Where This Meter Fits Perfectly)

  • Industrial & Commercial distribution boards (DB)
  • Factories, workshops, plazas, and buildings
  • Generator + mains monitoring
  • Energy management systems / load analysis
  • Smart automation panels using RS485 Modbus
  • Tenant sub-metering / floor-wise consumption tracking
  • Solar monitoring (import/export side measurement as per site design)

Technical Highlights

  • System: Three Phase Four Wire (3P4W)
  • Rated Voltage: 3×120/208V, 3×230/400V, 3×240/415V (0.8–1.2Un)
  • Current Options: 5A/CT, 1.5(6)A, 5(60)A, 10(80)A
  • Frequency: 50/60Hz (±10%)
  • WiFi: 802.11 b/g/n
  • RS485: 1200–9600 bps (default 9600), address 1–247, 8N1 (as listed)
  • Protocol: MODBUS-RTU
  • Mounting: 35mm DIN rail

Why Buyers Choose DTS726D-7P

Because it’s not just a meter—it's energy visibility + smart control. You get:

  • Accurate consumption tracking
  • Mobile app monitoring (anytime/anywhere)
  • Professional RS485 Modbus integration
  • Compact DIN rail installation
  • Useful data for saving electricity and identifying heavy loads
