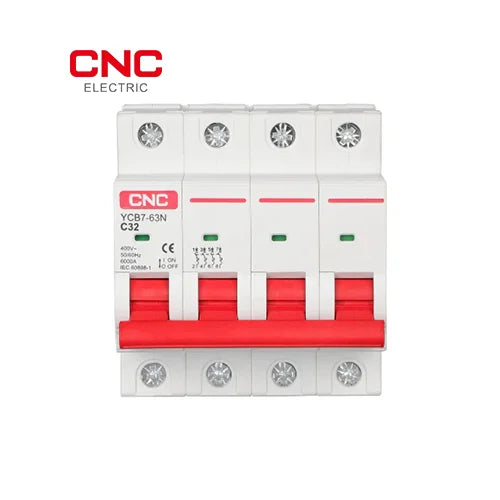

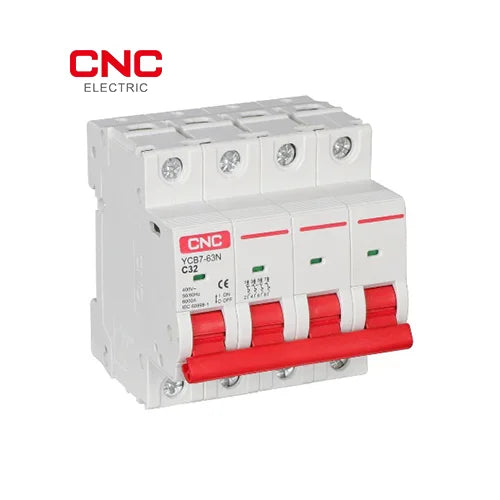

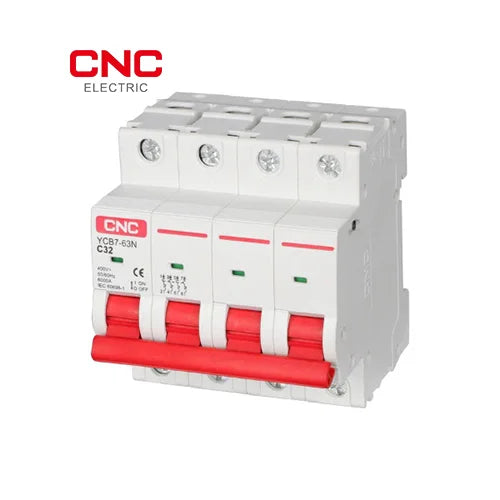

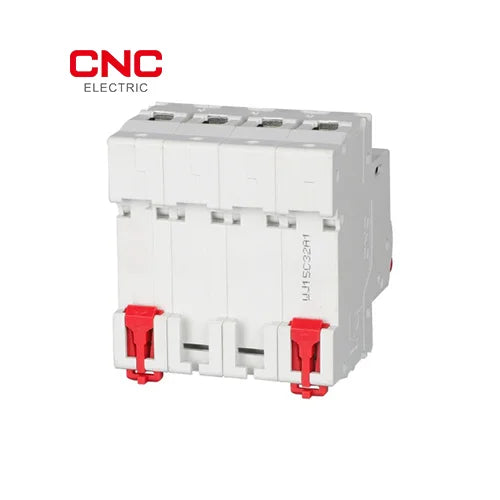

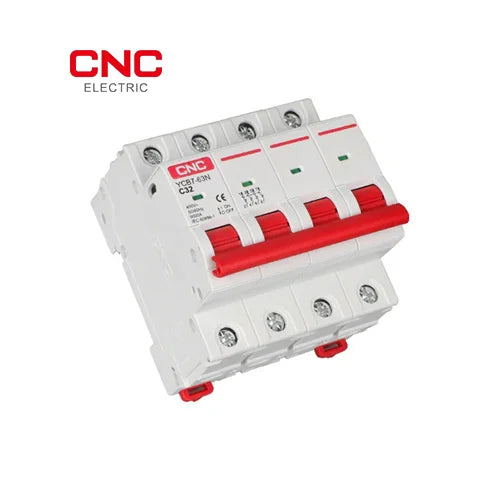

CNC 4P MCB AC Cricuit Breaker YCB7H-63A

  AC Breaker Key Features 1. Comprehensive ProtectionAC Circuit Breaker offers robust protection against overloads, short circuits,...
Vendor: CNC ELECTRIC
SKU: 4P-AC-MCB-1
Availability: In Stock
Rs.1,716.00
Rs.1,950.00
Rs.1,716.00
10 customers are viewing this product
Please hurry! Only 50 left in stock
AMPERE: 20A
Subtotal: Rs.1,716.00
Why Shop With Us?
Chat

Contact a specialist

    MCB AC Cricuit Breaker

    CNC 4P MCB AC Cricuit Breaker YCB7H-63A

    Rs.1,950.00 Rs.1,716.00

    CNC 4P MCB AC Cricuit Breaker YCB7H-63A

    Rs.1,950.00 Rs.1,716.00
    AMPERE: 20A



    AC Breaker Key Features

    1. Comprehensive Protection
    AC Circuit Breaker offers robust protection against overloads, short circuits, and other electrical faults, ensuring system reliability.

    ●      Rated breaking capacity of 6.00 KA to handle fault conditions.

    ●      Designed to protect circuits in residential, commercial, and industrial settings.

    2. Four-Pole Configuration
    The four-pole AC breaker structure makes it ideal for multi-phase systems, offering enhanced protection and versatility.

    ●      Available in 32A and 63A rated currents.

    ●      Perfect for four-phase or multi-phase installations.

    3. Adjustable Tripping Curves
    Equipped with B, C, and D tripping curves, suitable for various electrical applications and fault tolerance needs.

    ●      Fast response to faults for quick system recovery.

    ●      Adjustable tripping characteristics to fit diverse load profiles.

    4. Certified Safety Standards
    Meets international certification standards for performance and safety, ensuring dependable operation in critical applications.

    ●      CE, CB, EAC, and INMATRO certified.

    ●      Conforms to IEC/EN 60898-1 standards for high safety and reliability.



    Specification

    Value

    Type

    Standard IEC/EN 60898-1

    Rated Current (In)

    20A, 32A, 40A, 63A

    Poles

    4 Pole

    Rated Voltage (Ue)

    230/400 V

    Insulation Voltage (Ui)

    500 V

    Rated Frequency

    50/60 Hz

    Rated Breaking Capacity

    6000 A

    Rated Impulse Withstand Voltage (Uimp)

    4000 V

    Dielectric Test Voltage at Industrial Frequency (1 min)

    2 kV

    Pollution Degree

    2

    Thermo-Magnetic Release Characteristic

    B, C, D

    Electrical Life

    6000 cycles

    Mechanical Life

    20000 cycles

    Protection Degree

    IP20

    Ambient Temperature (Daily Average ≤35°C)

    -25~+70°C

    Storage Temperature

    -25~+70°C

    Terminal Connection Type

    Cable/Pin-type busbar

    Terminal Size Top/Bottom for Cable

    25 mm² / AWG 18-3

    Terminal Size Top/Bottom for Busbar

    25 mm² / AWG 18-3

    Tightening Torque

    2 N·m / 18 In-lbs

    Mounting

    On DIN rail EN 60715 (35 mm) by means of a fast clip

    Connection

    From top and bottom

    Reference Temperature for Setting of Thermal Element

    30°C





    General

     AC Breaker provides overload and short circuit protection for circuits up to 63A.

    ●      Rated for AC 50/60Hz, 230V/400V circuits.

    ●      Suitable for industrial, commercial, high-rise buildings, and residential areas.

    ●      Can be used for switching and isolating lines in normal conditions.
