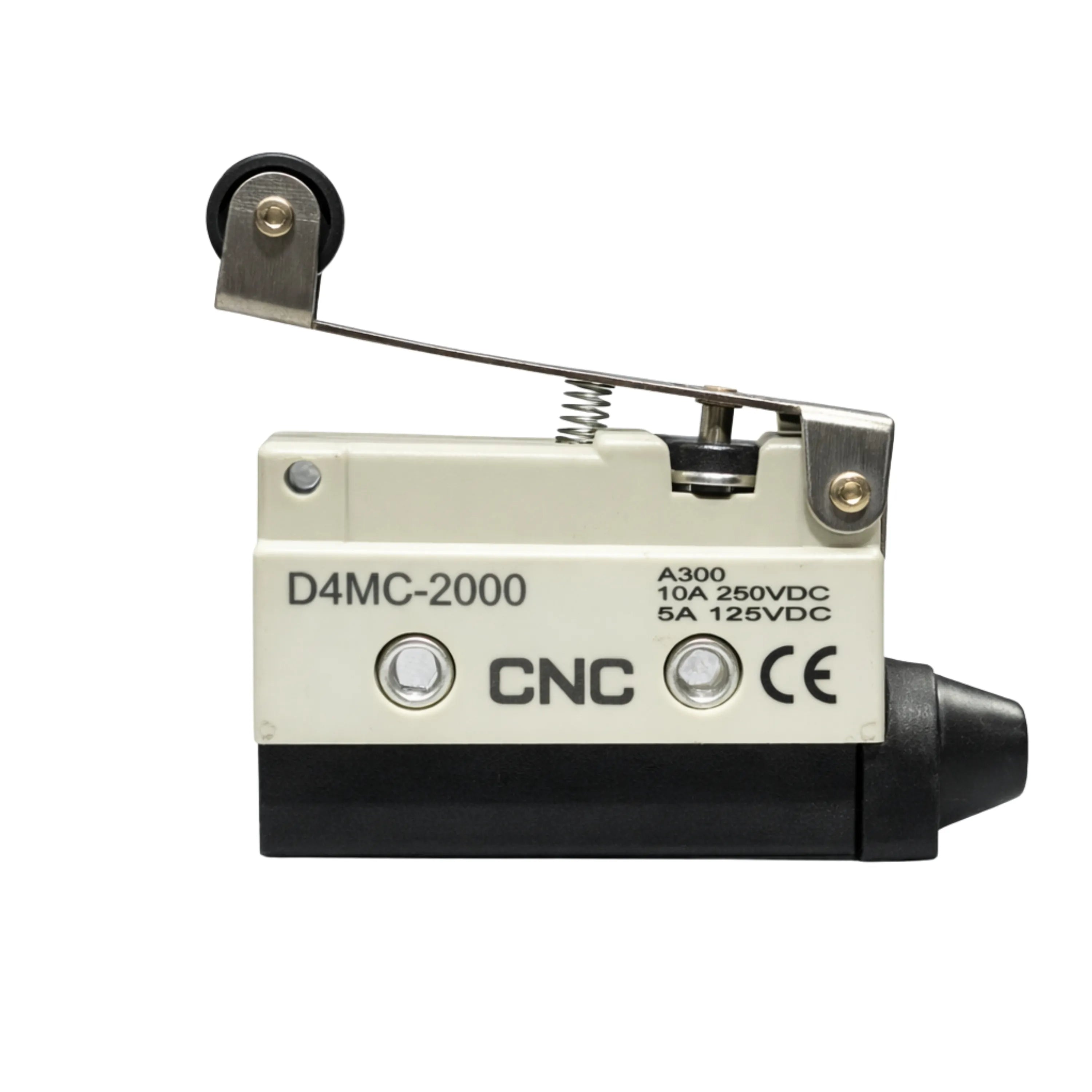

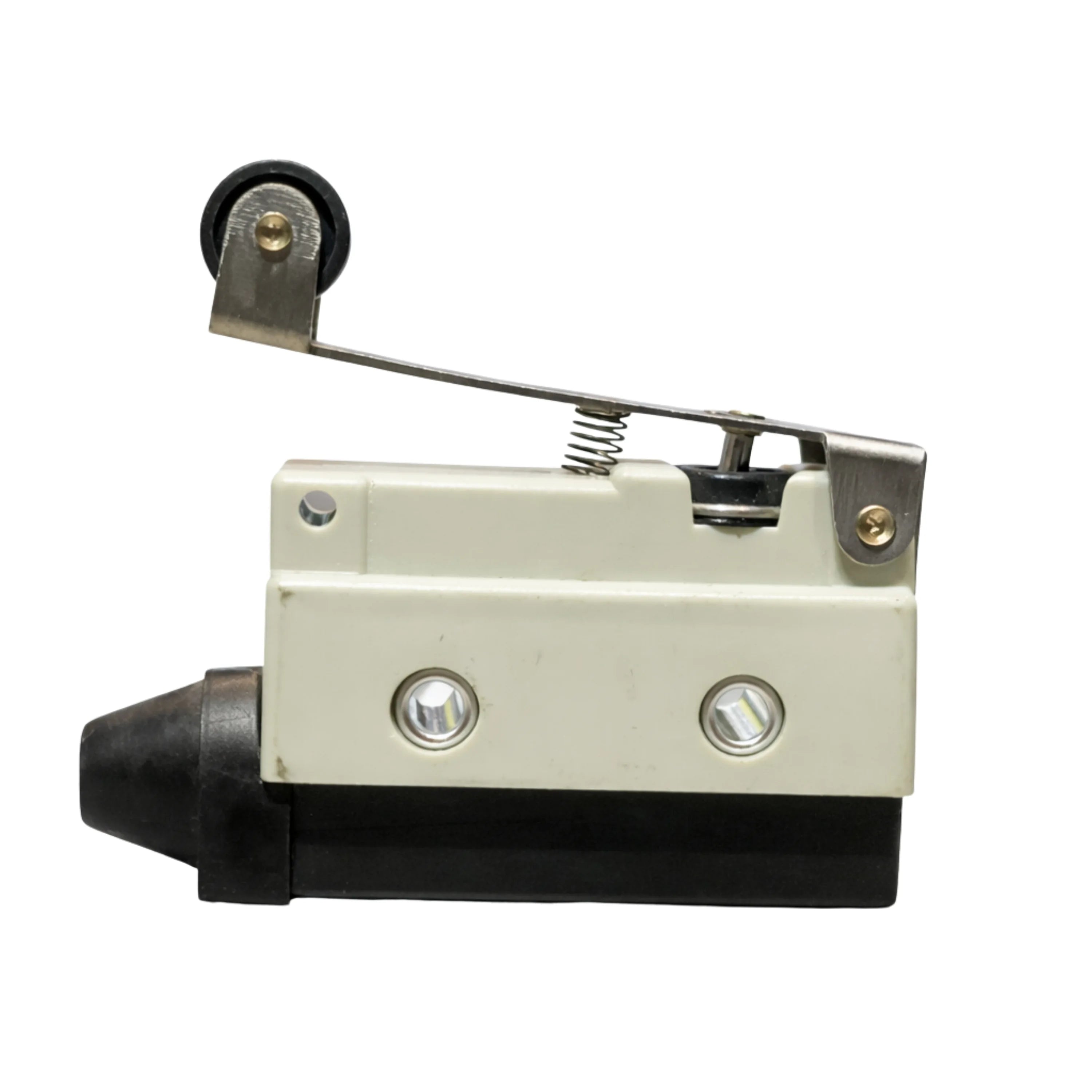

Limit Switch D4MC-2000 Roller Lever – Industrial Micro Limit Switch for Automation & Control Panels

D4MC-2000 Limit Switch is a high-precision industrial micro limit switch designed for accurate position detection, motion control, and safety interlocking in automated systems. Built with a durable metal roller lever actuator and a rugged thermoplastic housing, this switch ensures reliable performance in demanding industrial environments.

This roller lever limit switch is widely used in CNC machines, industrial automation systems, conveyor belts, elevators, packaging machinery, and electrical control panels where accurate mechanical position sensing is critical.

 Key Features

•  Model: D4MC-2000
•  Contact Rating: 10A 250VDC / 5A 125VDC
•  Actuator Type: Roller Lever (Spring Return Mechanism)
•  High Mechanical Strength Metal Lever
•  Compact Industrial Design
•  Long Electrical & Mechanical Life
•  CE Certified Quality Standard

 How It Works

The roller lever actuator is mechanically engaged when contacted by a moving object or machine component. Once actuated:

1. The lever moves downward.
2. The internal spring mechanism compresses.
3. Electrical contacts switch between Normally Open (NO) and Normally Closed (NC).
4. When released, the spring returns the lever to its original position.

This precise switching mechanism allows real-time control and automation feedback in industrial machinery.

 Applications

• CNC machines & milling systems
• Industrial automation systems
• Conveyor belt systems
• Elevator control systems
• Packaging machinery
• Robotics & motion control
• Electrical control panels
• Machine safety interlocking
• Mechanical position detection
• Factory automation equipment

 Why Choose CNC Electric Limit Switch?

·         High switching accuracy

·          Reliable mechanical durability

·          Strong metal roller lever design

·          Stable electrical performance

·          Ideal for heavy-duty industrial environments

·          Trusted CNC Electric brand quality

 Installation Guidance

• Mount securely using screw holes provided.
• Ensure correct wiring of COM, NO, and NC terminals.
• Confirm voltage and current ratings before installation.
• Avoid overload beyond rated specifications.
• Use in dry and protected industrial environments for maximum lifespan.

 Safety & Maintenance Tips

• Always disconnect power before wiring.
• Periodically inspect lever movement and spring response.
• Check contact terminals for tightening.
• Avoid exposure to extreme moisture or corrosive chemicals.
