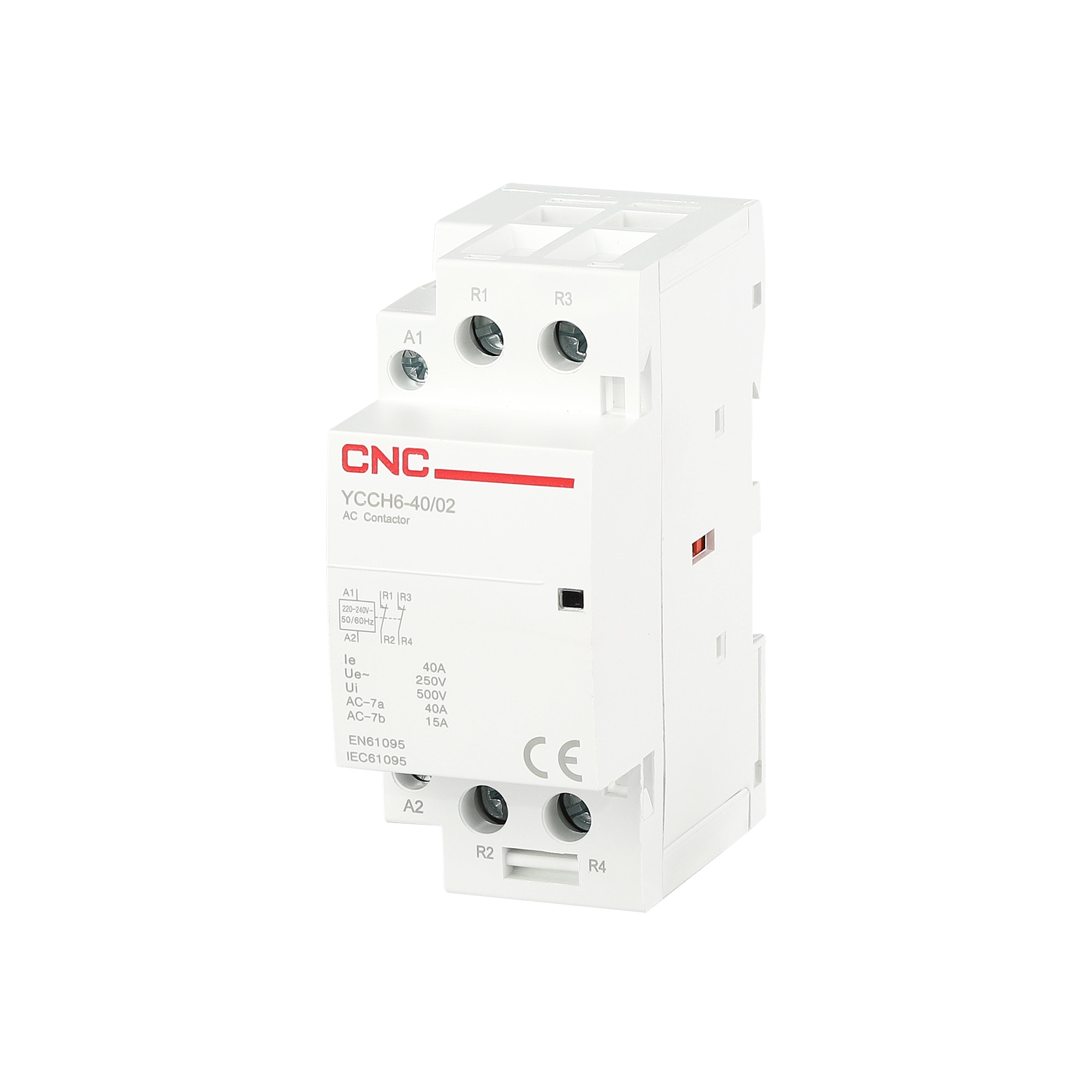

Modular AC Contactor 40A 2P | DIN-Rail Installation Contactor for Lighting & Heating (YCCH6)

When you need to switch a large lighting circuit, a heater bank, a pump or a floor of sockets from a single control signal — a timer, a switch, a building-management system — you use a modular contactor. It sits in the distribution board on DIN rail, takes little width, and switches the load quietly and reliably tens of thousands of times.

What the YCCH6 does

The YCCH6 switches a load on and off in response to a small control voltage on its coil. It's designed for AC-1, AC-7a and AC-7b duties — resistive and low-inductive household and commercial loads such as lighting, heating and small motors — and operates quietly enough for use in occupied buildings. Being modular, it lines up neatly beside MCBs and RCBOs on the same rail.

Model range (16–100 A)

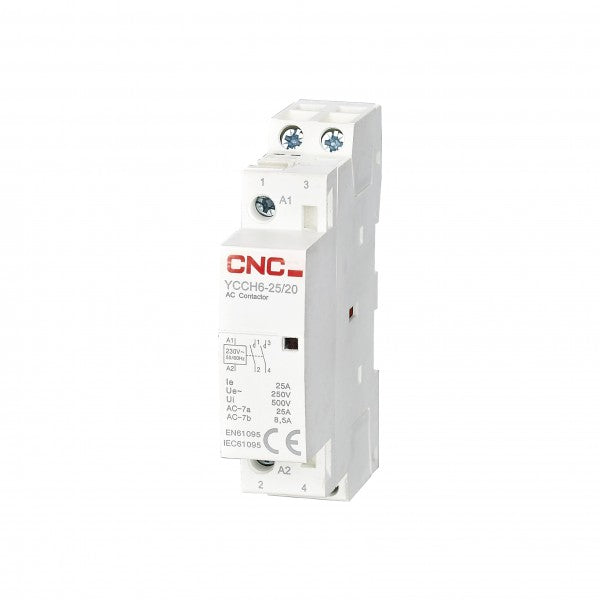

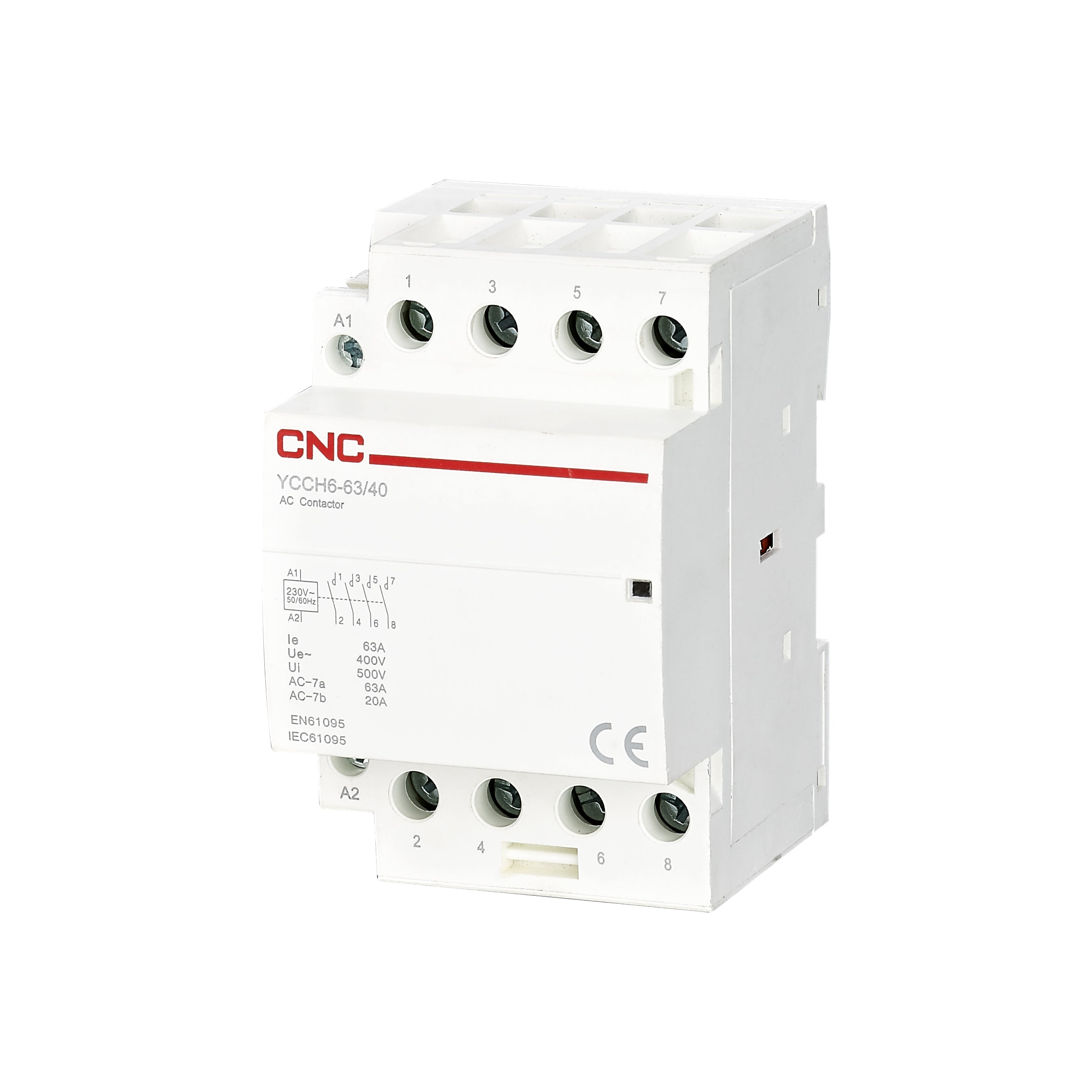

Available in 2-pole and 4-pole, in module widths from 18 mm (one module) upward, with a choice of contact configurations:

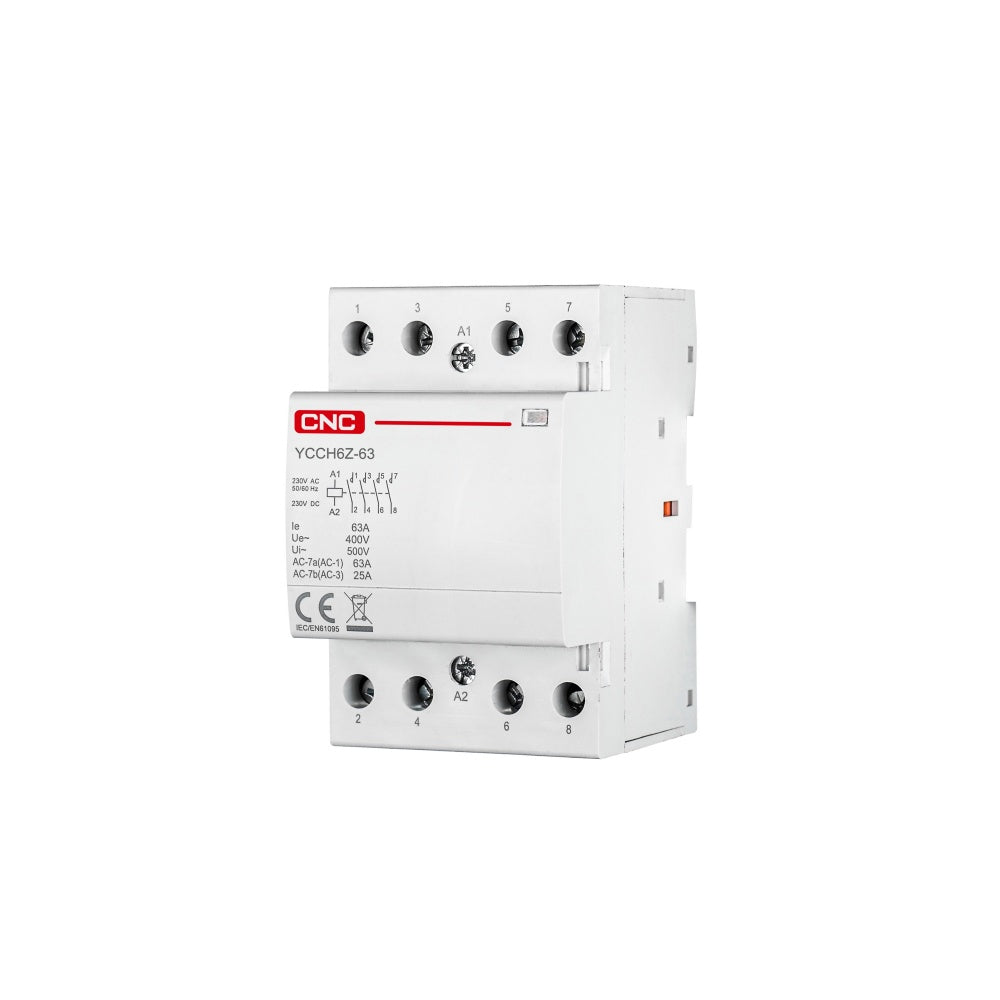

Coil voltage options are 24, 110 or 230 V (230 V is standard). A sister version, the YCCH6Z, offers a universal AC/DC coil (12/24/48/110/230 V) for control systems that switch the coil with DC.

Key specifications

Model code

The code reads YCCH6-[current] / [contacts], where the contact figure is NO-count then NC-count: /20 = 2NO, /02 = 2NC, /11 = 1NO+1NC, /40 = 4NO, /04 = 4NC, /22 = 2NO+2NC, /31 = 3NO+1NC. A Z suffix denotes the AC/DC-coil YCCH6Z family.

What the YCCH6 is (and isn't)

The YCCH6 is a modular household/commercial contactor to IEC 61095 — ideal for lighting and heating control in a distribution board. It is not an industrial motor-duty contactor for heavy AC-3 motor starting (that is a different series). If you need to force the contactor on or off by hand as well as automatically, choose the CNC YCCH7 with manual override.

Downloads

• YCCH6 / YCCH7 user manual (PDF)
• YCCH6 / YCCH7 catalogue (PDF)
• CE certificate (PDF)

Frequently asked questions

What is a modular contactor used for?

A modular contactor switches a load — lighting, heating, sockets, a pump — on and off from a control signal, mounted on DIN rail in the distribution board. It lets a small switch, timer or building system control a large circuit safely and quietly.

How is it different from a normal contactor?

A modular contactor is built to IEC 61095 for household and similar loads, is narrow (DIN-module width) so it fits beside MCBs in a consumer unit, and is designed to operate quietly. Industrial contactors are built to IEC 60947 for heavy motor duty and are physically larger.

What does AC-7a mean?

AC-7a is the IEC 61095 category for slightly inductive household loads such as lighting and small appliances; AC-7b covers household motor loads. The YCCH6 carries ratings in both, plus AC-1 for purely resistive loads.

Which coil voltage should I choose?

Match the coil to the control voltage your switch, timer or controller provides — 24, 110 or 230 V (230 V is the common choice). For DC control signals, use the YCCH6Z AC/DC-coil version.

How much DIN space does it take?

From 18 mm (one module) for the smaller 2-pole ratings up to 108 mm for the 100 A 4-pole. The model range table lists the width for each rating and pole count.
