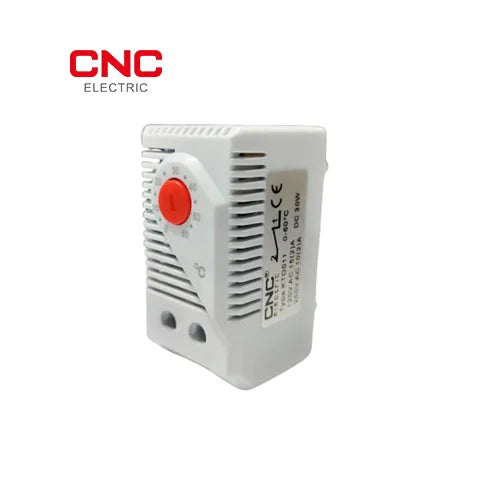

CNC KTO011 panel heater thermostat, red dial – front view

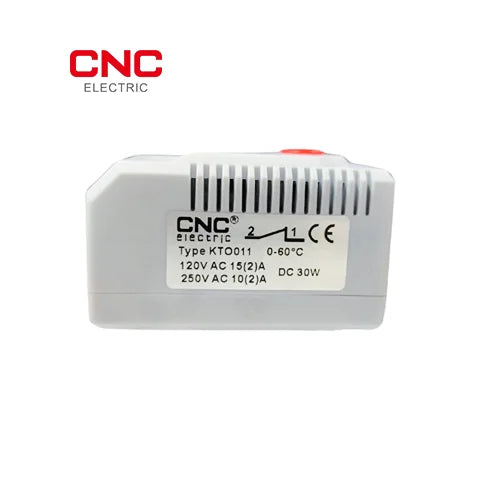

CNC KTO011 panel heater thermostat, red dial – angled view

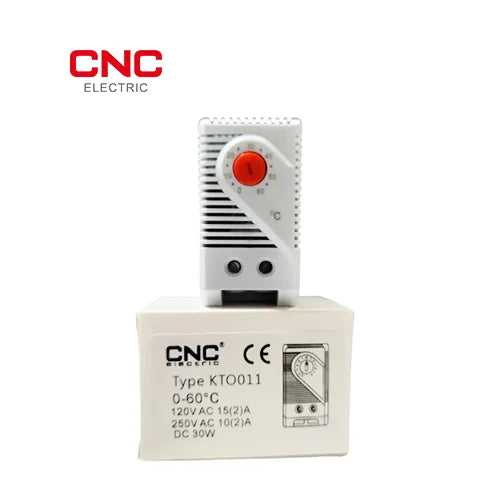

CNC KTO011 panel heater thermostat, red dial – perspective view

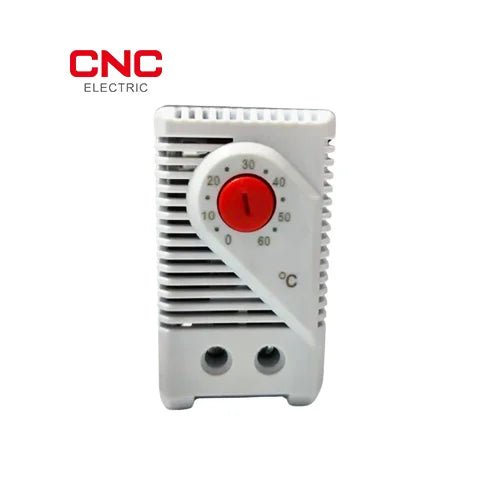

CNC KTO011 panel heater thermostat, red dial – side view
Thermostat for Panel Heater KTO011 0–60°C (Red, NC) - CNC KTO011 panel heater thermostat, red dial – front view
CNC KTO011 panel heater thermostat, red dial – front view
CNC KTO011 panel heater thermostat, red dial – angled view
CNC KTO011 panel heater thermostat, red dial – perspective view
CNC KTO011 panel heater thermostat, red dial – side view

Thermostat for Panel Heater KTO011 0–60°C (Red, NC)

Rs.950
Rs.1,050
Rs.950
Temperature: 0-60C
Subtotal: Rs.950
CNC KTO011 panel heater thermostat, red dial – front view

Thermostat for Panel Heater KTO011 0–60°C (Red, NC)

Rs.1,050 Rs.950
CNC KTO011 panel heater thermostat, red dial – front view
CNC KTO011 panel heater thermostat, red dial – angled view
CNC KTO011 panel heater thermostat, red dial – perspective view
CNC KTO011 panel heater thermostat, red dial – side view

Thermostat for Panel Heater KTO011 0–60°C (Red, NC)

Rs.1,050 Rs.950
Temperature: 0-60C
Description
For a panel heater. This is the KTO011 (red dial) — normally closed: it keeps the heater ON while the panel is cold and switches it OFF when the temperature rises to your setting.
Need to switch a cooling fan instead? Use the KTS011 (blue dial) fan thermostat.

The CNC KTO011 is a small DIN-rail thermostat for electrical panels and enclosures. Set the dial between 0 and 60°C. While the panel is colder than the setting, the contact stays closed and your heater runs; when the panel warms up to the setting, the contact opens and the heater stops. This keeps panels dry and protects electronics from cold and condensation.

Specifications

Model KTO011 (red dial)
Contact Normally closed (NC) — opens when temperature rises
Setting range 0 to 60°C
Switching capacity 250V AC 10A · 120V AC 15A · DC 30W
Switching difference About 7°C (±4)
Mounting 35mm DIN rail clip
Service life More than 100,000 cycles
Operating temperature −45 to +80°C

Which thermostat do I need?

You want to Choose
Run a heater when the panel is cold KTO011 — this product (red)
Run a cooling fan when the panel gets hot KTS011 fan thermostat (blue)

How to install

  • Clip it on the DIN rail, away from the heater itself.
  • Wire the thermostat contact in series with the heater supply.
  • Heaters above 10A at 250V: let the thermostat switch a contactor or relay coil instead.
  • Set the dial and check the heater switches as expected.

This is a control device, not a protection device — it does not protect against overload, short circuit or surges. Use a proper breaker on the circuit.

FAQs

What is the difference between the red and blue thermostat?

Red (KTO011) is normally closed and is used for heaters. Blue (KTS011) is normally open and is used for fans.

Can it switch my heater directly?

Yes, up to 10A at 250V AC. For bigger heaters, use it to switch a contactor.

Need help choosing? WhatsApp us at 0326-1111376.
