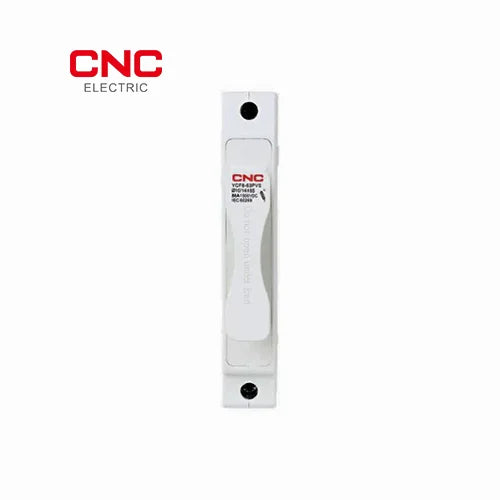

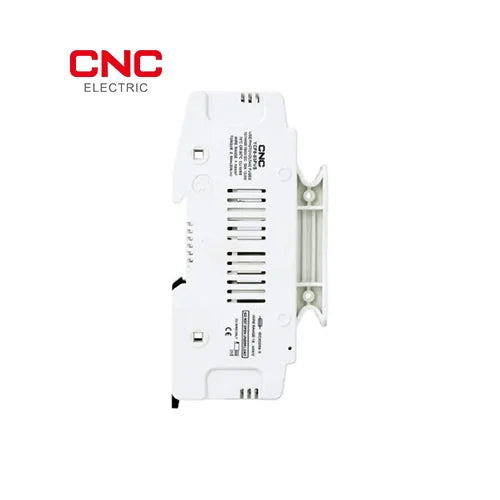

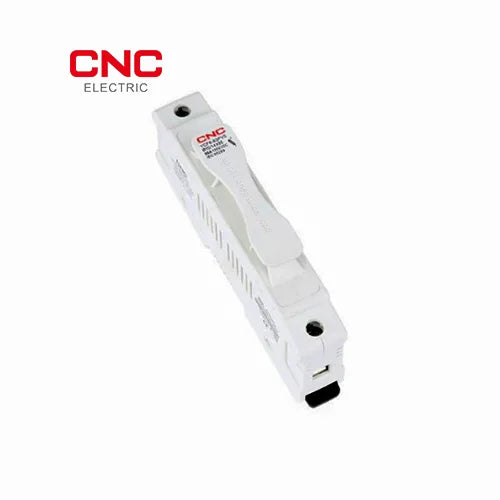

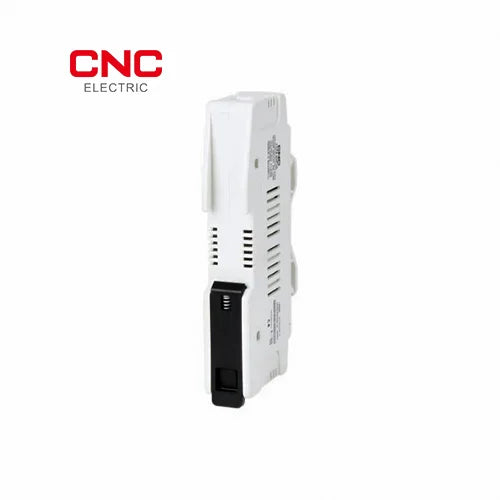

DC 1500V Fuse Holder | Overload & Short Circuit Protection
SKU:
DC Fuse
Availability:
In Stock
Product Type:
DC Fuse
- Rs.600
Rs.740- Rs.600
- Unit price
- per
10 customers are viewing this product
Please hurry! Only 995 left in stock
Couldn't load pickup availability
DC Fuse
Photovoltaic fuse YCF8-□ PVS series is applicable to DC Fuse distribution lines with rated voltage not exceeding DC1500V, rated current not exceeding 50A, and rated short circuit capacity not exceeding 50kA; It is used for line overload and short circuit protection. It is mainly used in energy storage systems and solar photovoltaic combiner boxes as short circuit and overload protection for solar photovoltaic power generation devices, batteries, and other semiconductor devices.
Standard: IEC 60269-6 UL248-19
Key Features
1. High Voltage Capacity
○ Supports up to DC1500V and current ratings between 2A and 50A.
○ Offers a breaking capacity of 50kA for robust circuit protection.
2. Optimized for Solar Systems
○ Provides overload and short circuit protection for solar panels, inverters, and batteries.
○ Specifically designed for photovoltaic power generation systems.
3. Durable and Reliable
○ Operates in a wide temperature range from -40°C to +90°C.
○ Suitable for altitudes up to 2000m and environments with varying humidity.
4. Easy Installation

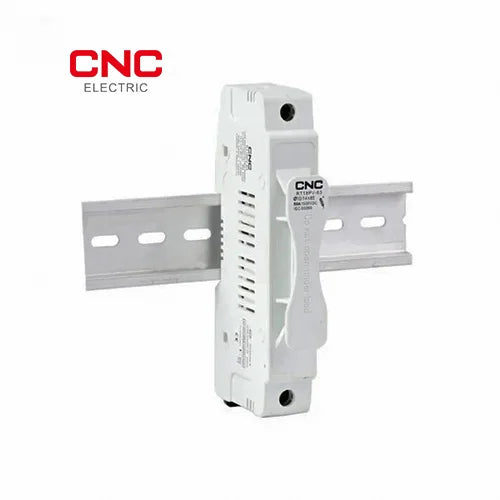

○ Features TH-35 Din-rail installation for quick setup.
○ Complies with pollution degree Level 3 and installation category III.
DC Fuse Specifications
● Rated Current: 2A to 50A (depending on model).
● Fuse Size: 10 × 85 mm for 2A-32A models, 14 × 85 mm for 40A-50A models.
● Rated Voltage: DC1500V.
● Breaking Capacity: 20kA.
● Operating Level: gPV.
● Operating Temperature: -40°C to +90°C.
● Installation: TH-35 Din-rail.
● Standards: IEC 60269-6, UL248-19.
● For DC lines up to DC1500V.
● Protects solar, energy storage, and semiconductor systems.
● Safeguards against overloads and short circuits.
● Commonly used in solar combiner boxes.
|
Technical Data |
YCf8-63PVS |
|
Fuse Size (mm) |
10×85, 14×85 |
|
Rated Working Voltage Ue (V) |
DC1500 |
|
Rated Insulation Voltage Ui (V) |
DC1500 |
|
Rated Short-Circuit Breaking Capacity (KA) |
20KA |
|
Operating Level |
gPV |
|
Standard |
IEC60269-6, UL4248-19 |
|
Number of Poles |
1Pole |
|
Installation Method |
TH-35 Din-rail installation |
|
Operating Environment and Installation |
|
|
Working Temperature |
-40°C ≤ T ≤ +90°C |
|
Altitude |
≤2000m |
|
Humidity |
When the maximum temperature is +40°C, the relative humidity of the air shall not exceed 50%, and higher humidity can be allowed at lower temperatures. For example +90% at 25°C. Special measures shall be taken for occasional condensation due to temperature changes. |
|
Installation Environment |
In a place where there is no explosive medium and the medium is not enough to corrode metal and damage insulation gas and conductive dust. |
|
Pollution Degree |
Level 3 |
|
Installation Category |
III |
Photovoltic Fuse 1500V
|
Product Name |
Size |
Rated Current |
Rated Voltage |
|
YCf8 |
1085: 10×85(mm) |
2-32A |
DC1500V |
