General
1.Overload protection
2.Short circuit protection
3.Controlling
4.Used in residential building, non-residential building, energy source industry and infrastructure.
Description

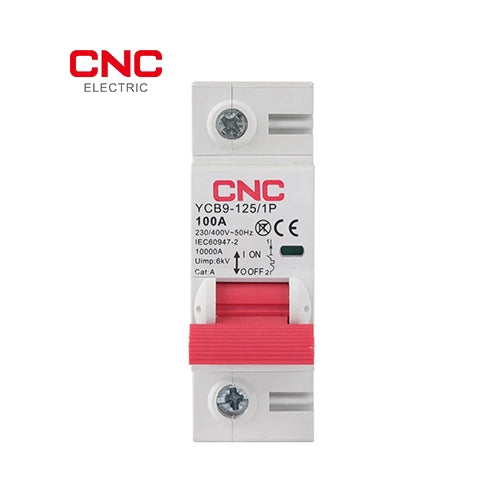

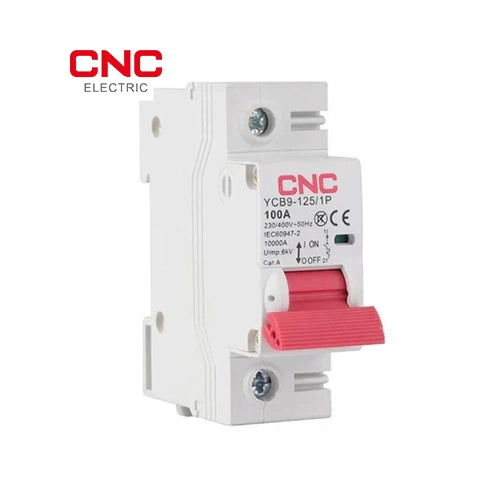

Type:YCB9-125
Product Name:27mm Miniature Circuit Breaker
In(A):63,80,100,125
Poles:1P
Breaking Capacity:6kA
Tripping Curve:8~12In
Certificate:CE,EAC
Type |
Standard |
IEC60947-2 |
IEC/EN 60898-1 |
Electrical features |
|||
Rated current In |
A |
63, 80, 100, 125 |
|
Poles |
P |
1, 2, 3, 4 |
|
Rated voltage Ue |
V |
230/400 |
|
Insulation voltage Ui |
V |
500 |
|
Rated frequency |
Hz |
50/60 |
|
Rated breaking capacity |
A |
6000 |
|
Rated impulse withstand voltage (1.2/50) Uimp |
V |
6000, 10000 |
|
Dielectric test voltage at ind. Freq. for 1min |
kV |
2.5 |
|
Pollution degree |
3 |
||
Thermo-magnetic release characteristic |
8-12In |
B, C, D |
|
Mechanical features |
|||
Electrical life |
t |
1500 |
|
Mechanical life |
t |
10000 |
|
Contact position indicator |
Yes |
||
Protection degree |
IP20 |
||
Reference temperature for setting of thermal element |
30 |
||
Ambient temperature (with daily average ≤35°C) |
°C |
-5 ~ +40 (Special application please refer to temperature compensation correction) |
|
Storage temperature |
°C |
-25 ~ +70 |
|
Installation |
|||
Terminal connection type |
°C |
Cable/Pin-type busbar |
|
Terminal size top / bottom for cable |
mm² |
5-50 |
|
AWG |
18-1/0 |
||
Terminal size top / bottom for busbar |
mm² |
5-50 |
|
AWG |
18-1/0 |
||
Tightening torque |
N*m |
3.5 |
|
In-lbs |
31 |
||
Mounting |
On DIN rail EN60715 (35mm) by means of fast clip device |
||
Connection |
From top and bottom |

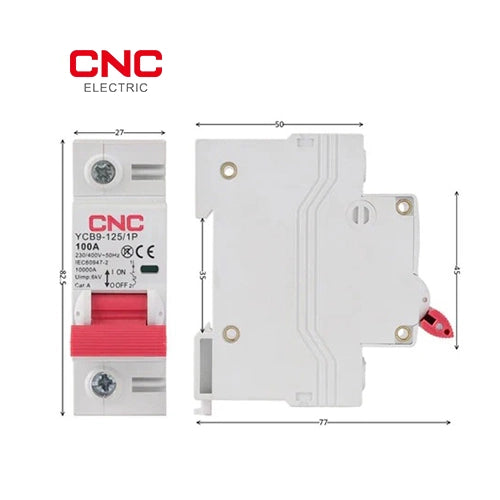

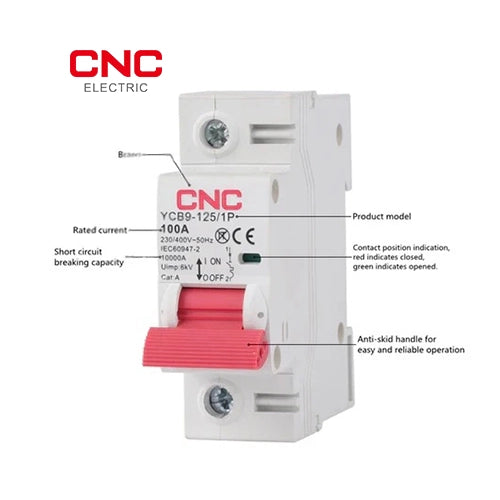

The CNC YCB9-125 1P MCB (Miniature Circuit Breaker) is a high-performance solution designed to protect your electrical systems from overloads and short circuits. With a rated current of up to 125A and a rated voltage of 230/400V, this breaker is ideal for both residential and industrial applications. Built to comply with international standards IEC60947-2 and IEC/EN 60898-1, it ensures safe, stable, and reliable performance even in demanding environments.
This single-pole breaker features a breaking capacity of 6000A, an IP20 protection rating, and supports both cable and pin-type busbar connections. It is engineered for long life with mechanical durability of up to 10,000 cycles and electrical life of 1,500 operations. The YCB9-125 offers thermal and magnetic release protection and includes a visible contact position indicator for enhanced safety and maintenance ease.
Perfect for DIN rail mounting (35mm) and top or bottom wiring, the CNC YCB9-125 MCB is a cost-effective and essential component for any modern electrical distribution system.
