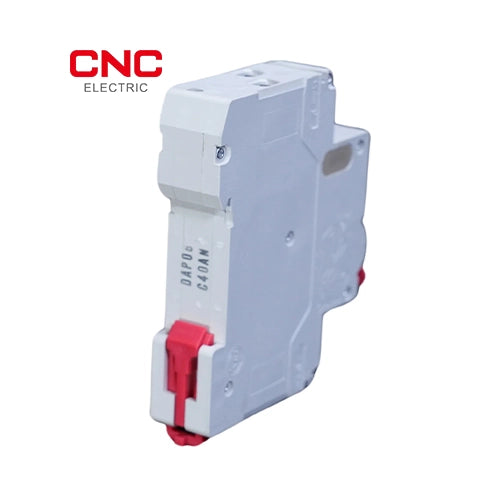

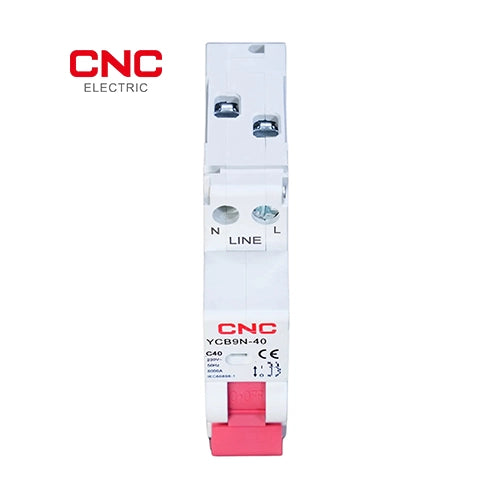

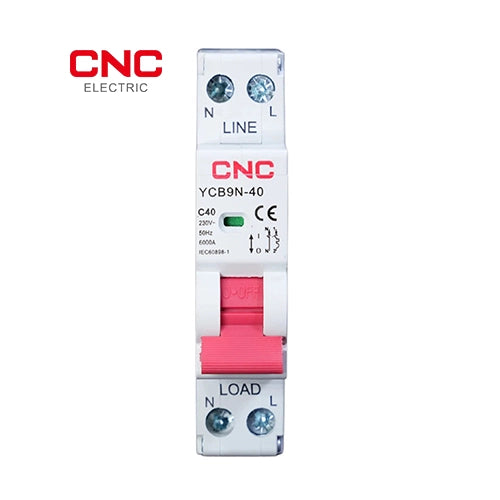

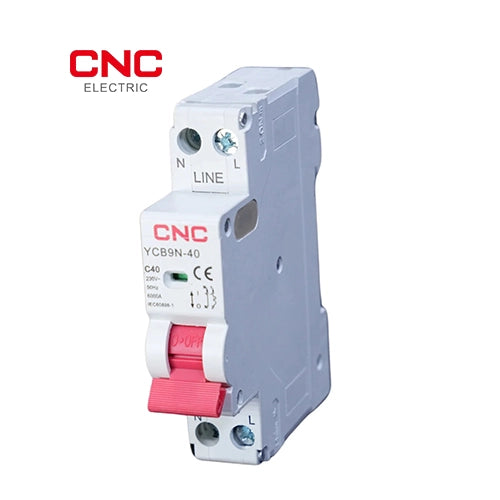

MCB AC Circuit Breaker
MCB AC Circuit Breaker
MCB AC Circuit Breaker
MCB AC Circuit Breaker

AC 1P+N MCB 10A, 20A, 30A, 40A

SKU: YCB9N-40
Availability: In Stock
Rs.825
Rs.1,099
Rs.825
10 customers are viewing this product
Please hurry! Only 38 left in stock
AMPERE: 10A
Subtotal: Rs.825
MCB AC Circuit Breaker

AC 1P+N MCB 10A, 20A, 30A, 40A

Rs.1,099 Rs.825

AC 1P+N MCB 10A, 20A, 30A, 40A

Rs.1,099 Rs.825
AMPERE: 10A

General

●      Provides overload and short Circuit protection for electrical systems.

●      Suitable for residential, commercial, and industrial applications.

●      Conforms to IEC/EN 60898-1 safety standards.

●      Easy installation with DIN rail compatibility and flexible connections.

Ac Breaker Key Features

1. Comprehensive Protection
Ensures safety with reliable overload and short circuit protection for electrical systems. Ideal for preventing damage and ensuring smooth operations.

●      Protects against overload and short circuit faults.

●      Thermal-magnetic release for precise performance.

2. Versatile Applications
Ac Breaker Designed for residential, commercial, and industrial setups, catering to diverse environments and requirements.

●      Suitable for energy industries and infrastructure projects.

●      Supports B (3-5In) and C (5-10In) tripping curves.

3. High Performance
Built to handle demanding conditions with a high breaking capacity and long operational life.

●      Rated breaking capacity of 6000A.

●      Electrical life of 8,000 cycles and mechanical life of 20,000 cycles.

4. Durable and Reliable Build
Crafted for durability, withstanding a wide range of temperatures and ensuring consistent operation.

●      Operates in temperatures from -5°C to +40°C.

●      Insulation voltage of 500V and impulse withstand voltage of 4000V.

Specification

Details

Type Standard

IEC/EN 60898-1

Rated Current In (A)

10, 20, 30, 40

Poles

1P+N

Rated Voltage Ute (V)

230

Insulation Voltage Uri (V)

500

Rated Frequency (Hz)

50/60

Rated Breaking Capacity (A)

6000A

Rated Impulse Withstand Voltage Uimp (kV)

4

Dielectric Test Voltage (1 min)

2kV

Pollution Degree

2

Thermo-magnetic Release Characteristic

B, C

Electrical Life (times)

8000

Mechanical Life (times)

20000

Protection Degree

IP20

Storage Temperature (°C)

-25 ~ +70

Reference Temp for Thermal Element

30°C

Ambient Temperature (°C)

≤35°C daily average

Terminal Connection Type

Cable/Pin-type busbar

Terminal Size (Cable, mm²/AWG)

16 mm² / 18-5 AWG

Terminal Size (Busbar, mm²/AWG)

10 mm² / 18-5 AWG

Tightening Torque (N·m/In-lbs)

2 N·m / 18 In-lbs

Mounting

On DIN rail EN 60715 (35mm) via fast clip

Connection

From top or bottom
