AC SPD 440V In=30KA Imax=60KA CARTRIDGE Surge Protection Devices YCS6

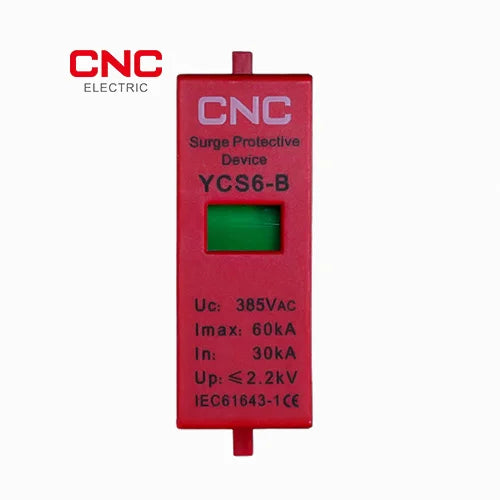

AC SPD cartridge is the maintenance-friendly answer when the base SPD assembly is still installed correctly but the plug-in protection module needs replacement. This YCS6-B 440V cartridge with In 30kA and Imax 60kA is for compatible AC SPD setups where a failed or exhausted surge module can be swapped without replacing the entire installed body.

Key Features and Specifications

The user here usually already has an SPD body in the board. The problem is maintenance, not first-time installation.

In Pakistani commercial and industrial boards, this matters because maintenance teams often throw away the complete SPD when only the cartridge needs replacement. That wastes money and time.

Technical Specifications

A cartridge is not universal. That is the first rule. Buyers must confirm series, rating and physical compatibility with the existing SPD body. If the base is damaged, burnt or mechanically broken, replacing only the cartridge is the wrong repair.

The second rule is diagnosis. Some failed SPDs indicate a wider earthing or surge coordination problem in the board. Replacing the cartridge without checking the cause may simply lead to another failure.

Product Range and Models

This product is a replacement part, so the range table is about compatibility logic. Buyers should match the installed base and board design, not order a cartridge by guesswork.

Applications in Pakistan

This cartridge is a maintenance product. It is bought by maintenance managers, electricians and panel technicians, not only by first-time system buyers.

Sizing and Selection Guide

The smart buying rule is simple: cartridge for service, full SPD for fresh installation or damaged base.

CNC vs Competitors

This is one of the few product pages where the real competitor is bad maintenance practice. Many boards lose protection simply because nobody replaces the spent module.

What This Product Does NOT Protect Against

• It does not work by itself. It needs a compatible SPD base assembly already installed in the board.
• It does not replace the need for checking earthing, lead length and overall SPD installation quality.
• It does not protect against sustained voltage problems. Use a voltage protector if that risk exists too.
• It is not a universal cartridge for every SPD family or every brand.
• It does not solve a burnt board, loose terminals or damaged SPD housing by itself.

These limitations matter because buyers often treat all modular surge parts as interchangeable. They are not.

Installation Guide

• Isolate the board fully and verify safe shutdown before touching the SPD module.
• Confirm the existing base series, voltage and cartridge format match the replacement part.
• Remove the spent cartridge carefully without damaging the installed base body or associated wiring.
• Insert the new cartridge firmly in the correct orientation and inspect the full assembly afterwards.
• After replacement, review the board’s earthing and surge exposure history so repeated failure is not ignored.

The installation tone here is deliberately maintenance-focused, not first-install focused.

Related Products

Cartridge buyers are usually maintaining an existing protected board. These links help with the rest of the protection ecosystem and safe board service.

• SPD collection — Check full SPD assemblies, matching devices and other surge products.
• Voltage protectors — Useful if the same board also suffers long-duration voltage problems.
• DB boxes — Helpful when the board enclosure itself needs cleanup or replacement.
• Circuit breakers — Check feeder protection around the same distribution section.
• SPD guide — Good reference for explaining surge maintenance to clients.
• Electrical panel fire guide — Board maintenance and fire protection go together.
• Fire extinguisher collection — Important for boards carrying SPDs, breakers and electronics.
• Changeover switches — Relevant where service boards are linked to generator supply arrangements.
• ATS collection — Many commercial boards with SPD also use automatic transfer systems.
• DIN rail fire extinguisher — Final add-on for safer switchgear and distribution maintenance.

Frequently Asked Questions

What is an SPD cartridge?

It is the replaceable module in a compatible surge protection device. When the module is spent, you may be able to replace only that part instead of changing the whole assembly.

Can I use this cartridge in any SPD?

No. You must match the correct series, rating and physical compatibility with the installed base.

Why buy cartridge instead of full SPD?

Because it can reduce maintenance cost and downtime when the base is still healthy and properly installed.

How do I know my SPD cartridge needs replacement?

Follow the status indication of the installed SPD and inspect after major surge events or during regular maintenance. If in doubt, send pictures for confirmation.

Can I replace the cartridge live?

No. Isolate the board properly before any work.

Does changing the cartridge fix poor earthing?

No. A weak earth system can keep damaging SPDs, including new cartridges.

Is this cartridge for single-phase or three-phase boards?

That depends on the compatible base it is used with. The cartridge itself must match the installed SPD assembly design.

Who usually buys SPD cartridges in Pakistan?

Maintenance electricians, building service teams, solar service technicians, plant electricians and commercial panel operators in cities like Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Peshawar and Sialkot commonly need them.

Final Word

The YCS6-B AC SPD cartridge is a maintenance product for keeping compatible surge-protected boards alive without paying for full unnecessary replacement. It is especially useful for service teams operating in Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, Peshawar and Sialkot. Orders above Rs.10,000 qualify for free delivery. For compatibility check before purchase, WhatsApp 0326-1111376.
