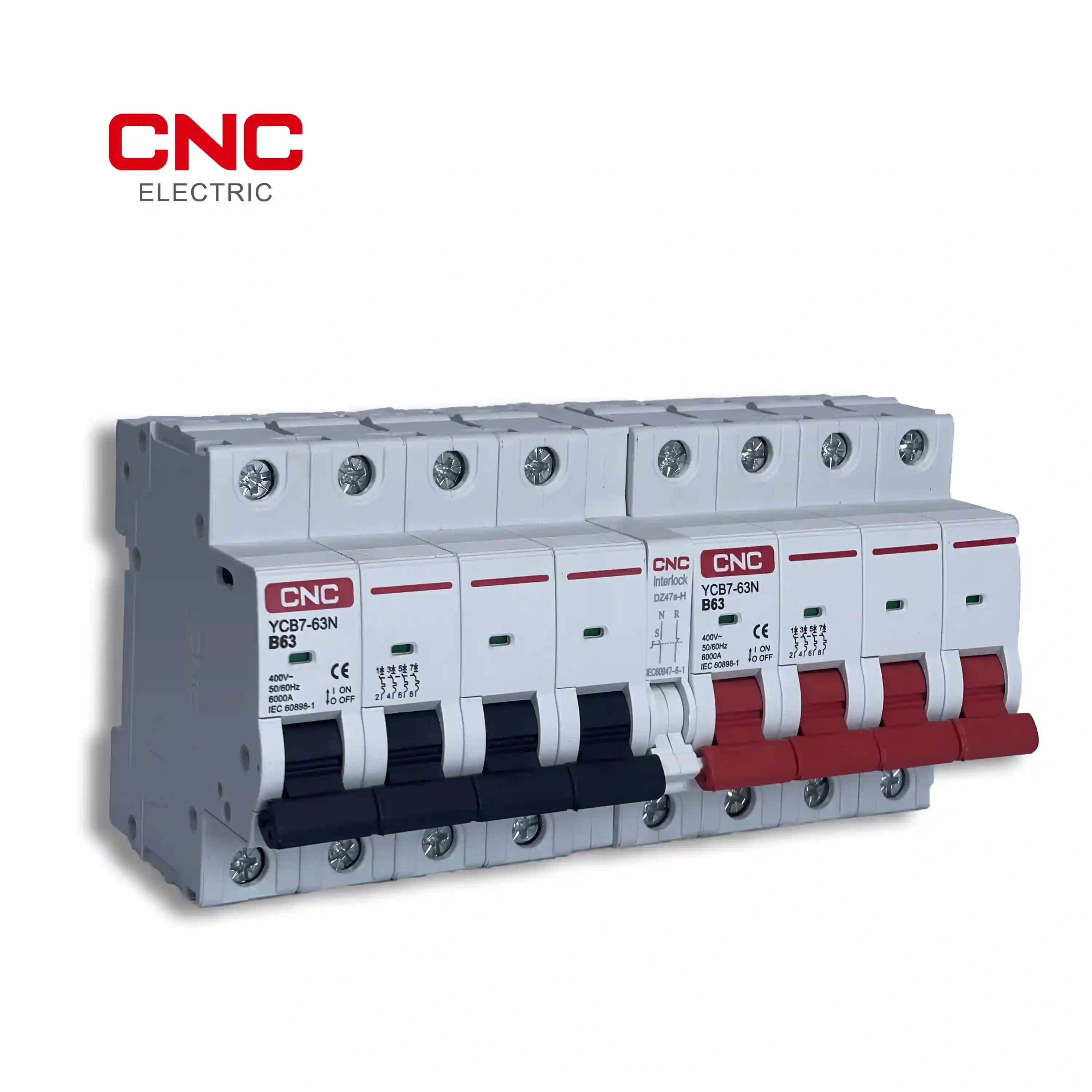

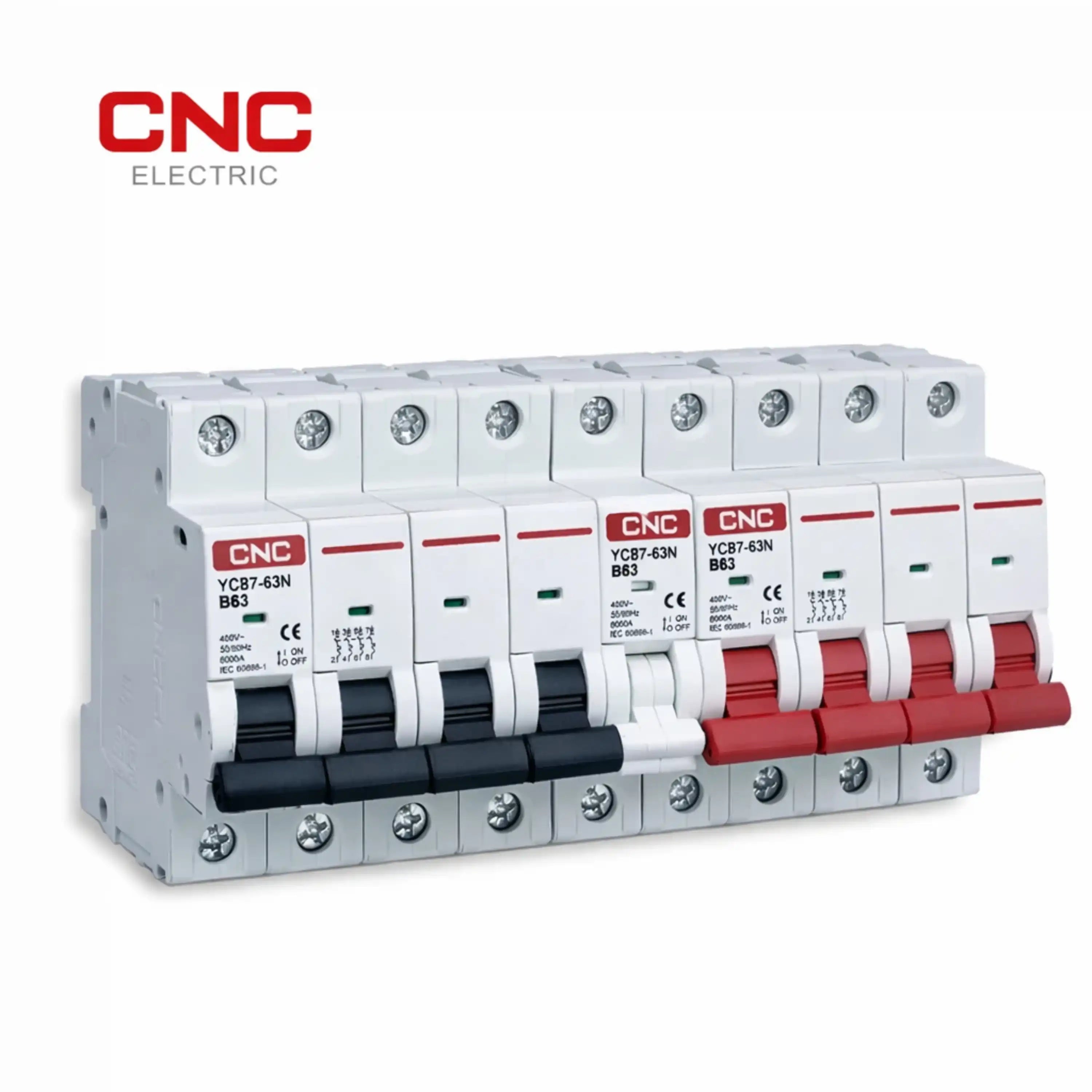

AC MTS 8 Pole 63A | Manual Transfer Switch

Looking for a manual transfer switch price in Pakistan for a generator panel, UPS changeover board, or dual-source commercial installation? This CNC Electric 63A AC MTS 8-pole (4+4) unit is listed at Rs. 4,000 and is built for users who want secure manual source selection between two power inputs. In Pakistan, this kind of transfer switch is especially useful where WAPDA outages, backup supply, and planned maintenance make controlled source changeover necessary. For electricians, panel builders, workshops, and facility teams, it is a practical option when you want more control than a simple switch and a more affordable solution than a full automatic transfer switch.

Key Features

• 63A rated manual transfer switch for dual-power changeover in AC systems.
• 8-pole 4P+4P configuration gives a more complete source-switching format for larger and more serious panel jobs.
• Published 230/400V AC rating supports many building, workshop, and commercial-panel applications.
• Compatible with both 50Hz and 60Hz systems according to the live product page.
• Manual Transfer Switch design gives direct operator control over source selection, which some sites prefer over a fully automatic transfer switch.
• Made for commercial and industrial use where uninterrupted power planning matters but a full ATS may not be required.
• Helps reduce unsafe or improvised source shifting between mains and backup by giving a dedicated changeover device.
• Fits naturally with Changeover Switches, Changeover Breakers, AC Breakers, and properly planned DB Boxes.

Technical Specifications

Product Range / Variant Table

This local selling page is specifically for the 8-pole 4P+4P version. If the job needs a smaller dual-source switch, compare the wider manual changeover and ATS ranges before finalizing.

Applications

• Commercial buildings where mains and backup power must be selected manually in a controlled, visible way.
• Industrial workshops and utility rooms in Lahore, Karachi, or Faisalabad where the operator wants physical control over source selection.
• Generator-backed panels where a manual transfer switch is preferred over a full ATS for cost or operational reasons.
• Critical feeder points where planned maintenance requires safe source changeover without casual rewiring or unsafe switching methods.
• Dual-power commercial and industrial panels where smooth manual source transition helps reduce interruption risk.
• Panels that also need coordinated AC breakers, SPD, voltage protection, and organized DB enclosure planning.

Sizing / Selection Guide

Choose this manual transfer switch when the load is within 63A, the panel needs 4P+4P source switching, and the site prefers direct operator control rather than an automatic transfer switch. The key selection points are feeder current, source type, switching philosophy, and panel size.

• Choose this 63A manual transfer switch when the load and feeder current suit a 63A source-changeover device.
• Choose this 4P+4P format when the panel design calls for a broader multi-pole manual source-transfer arrangement.
• Choose an automatic transfer switch instead if the site needs unattended transfer without an operator.
• Choose a simpler changeover switch if the panel is smaller and does not need the broader 8-pole configuration.
• Plan the whole panel with the right circuit breakers, enclosure space, and cable entry route before ordering the transfer device.

Manual Transfer Switch vs Alternatives — Why CNC?

In Pakistan, the real comparison is not only brand versus brand. It is manual transfer switch versus automatic transfer switch, and proper source-changeover device versus unsafe improvised switching. That is where this CNC Electric product makes practical commercial sense.

What This Product Does NOT Protect Against

• It is not an automatic transfer switch and does not switch sources by itself when power fails.
• It is not a Voltage Protector and does not disconnect the load on unsafe voltage conditions.
• It is not an SPD and does not protect against surge events.
• It does not replace proper breaker protection, earthing, or full panel coordination.
• It should not be used as a shortcut around proper source-identification, operator training, and safe manual switching procedure.

Installation Guide

1. Confirm the two incoming power sources and the outgoing load arrangement before wiring the transfer switch.
2. Match the panel and cable sizing to the 63A current rating and 230/400V AC operating context.
3. Install the device inside a properly built panel or enclosure with clear source labeling and safe operator access.
4. Wire both power sources and the outgoing load correctly so manual transfer happens cleanly and without ambiguity.
5. Test manual transfer under controlled conditions before handing over the panel for site use.
6. Complete the system with SPD, proper breaker coordination, and the Fire Extinguisher Guide.

Cross-Category Links

• Changeover Switches
• Changeover Breakers
• Automatic Transfer Switches
• AC Breakers
• Circuit Breakers
• Surge Protection Devices
• Voltage Protectors
• DB Boxes
• Changeover Breaker Guide
• Types of Circuit Breakers Guide
• Fire Extinguisher Guide

FAQs

What is a manual transfer switch?

A manual transfer switch is a device used to manually select one of two power sources for the load, such as mains supply and backup supply.

What is the 63A manual transfer switch price in Pakistan?

The live CNC Electric Pakistan page currently shows this 8-pole 63A AC MTS at Rs. 4,000.

Is this an automatic transfer switch?

No. This is a manual transfer switch. The operator must select the source manually instead of relying on automatic transfer logic.

What does 4P+4P mean in practical use?

It refers to an 8-pole 4P+4P configuration designed for broader dual-source switching arrangements in more serious panel work.

Can this be used in generator panels?

Yes. It is a practical choice where the panel must manually transfer between mains and generator or another backup source.

Is this suitable for commercial and industrial installations?

Yes. The live product page specifically positions it for a wide range of commercial and industrial settings.

Why choose this instead of a full ATS?

Choose this when the site wants controlled manual source selection and does not need unattended automatic transfer. It is often the more economical choice.

Can this work on both 50Hz and 60Hz systems?

Yes. The local page specifically says it works with both 50Hz and 60Hz systems.

Does this switch protect against surge and voltage problems?

No. For that, the panel should also include SPD and, where needed, a Voltage Protector.

What should I add with this manual transfer switch for a safer panel?

A safer finished panel usually includes the right breaker protection, properly labeled sources, an organized DB enclosure, and nearby panel fire protection.

If you need a practical 63A manual transfer switch in Pakistan for dual-source commercial or industrial panels, this CNC Electric 8-pole AC MTS is a strong commercial option. It gives you controlled source selection, 4P+4P switching format, and a more disciplined way to manage mains and backup power than improvised changeover methods. For stock confirmation, panel coordination, or help comparing it with ATS and simpler changeover options, contact CNC Electric Pakistan on WhatsApp before ordering.
