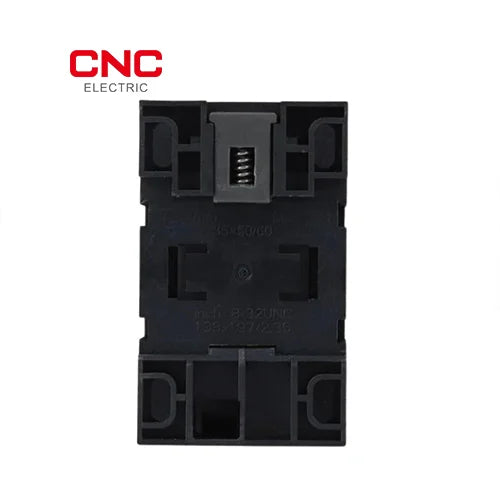

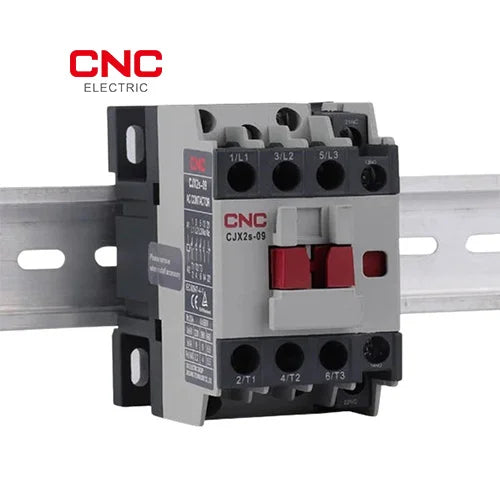

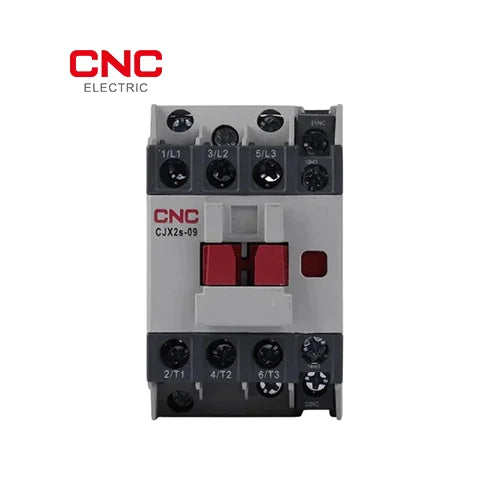

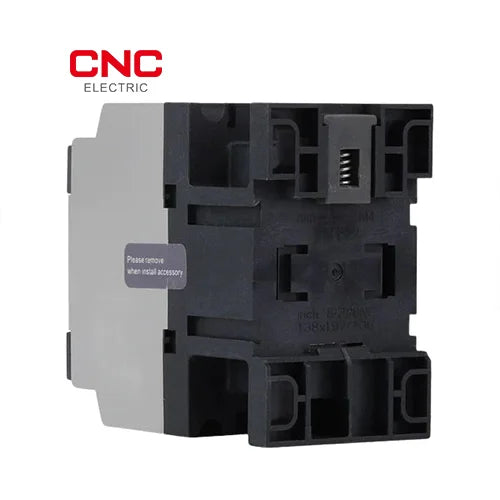

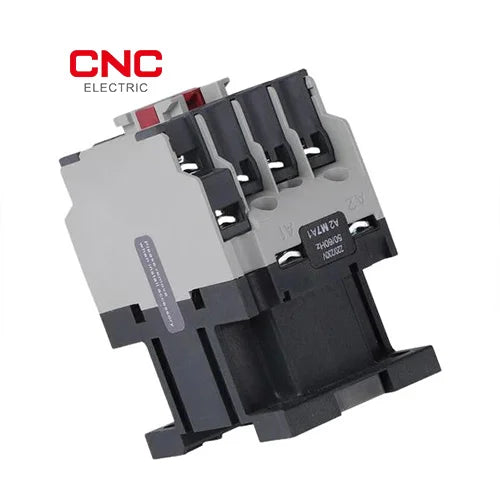

3 Phase Magnetic Contactor 12A, 18A, 25A, 32A, 40A, 50A, 65A, 80A, 95A, 160A, CJX2s | NO/NC Coil Voltage Control
SKU:
CJX2s
Availability:
In Stock
- Rs.2,000
Rs.2,220- Rs.2,000
- Unit price
- per
10 customers are viewing this product
Please hurry! Only 99 left in stock
Couldn't load pickup availability
General
The CJX2S series AC Contactor is designed with an artistic appearance and compact structure. It is ideal for frequently starting and controlling AC motors, as well as switching the circuit on and off from a long distance. The contactor is used in combination with a thermal relay to create a magnetic motor starter.
Certification: CE, CB, TUV.
Key Features:
- Rated Operation Current (Ie): 9-95A
- Rated Operation Voltage (UE): 220V~690V
- Rated Insulation Voltage: 690V
- Poles: 3P
- Auxiliary Contacts: 1NO + 1NC
- Installation: Din rail and screw installation
- Standards: IEC 60947-1, IEC 60947-4-1
Type & Product Name
○ The CJX2s is an AC Magnetic Contactor designed for controlling motors.
○ It is ideal for switching and controlling circuits remotely.
2. Rated Current & Voltage
○ Rated current: 9A to 95A, suitable for a wide range of applications.
○ Rated voltage: 220V to 690V, making it versatile for different voltages.
3. Poles & Auxiliary
○ 3 poles for controlling three-phase AC motors.
○ Includes 1 NC (normally closed) and 1 NO (normally open) auxiliary contact.
4. Certifications & Standards
○ Complies with IEC/EN60947-4-1 standards.
○ Certified with CE, CB, and TUV for enhanced safety and quality.
Magnetic Contactor Specification
● Rated Current (Ie): 9A to 95A
● Rated Voltage (UE): 220V to 690V
● Rated Insulation Voltage: 690V
● Frequency: 50/60Hz
● Poles: 3P
● Auxiliary Contacts: 1NC + 1NO
● Installation Type: Din Rail and Screw Installation
General
● Application: Used for controlling and starting AC motors and switching circuits from a distance.
● Combination: Works with thermal relays to form magnetic motor starters.
● Design: Novel appearance with compact structure for easy installation and use.
Brand
CNC
Operating and Installation Conditions
|
Type |
Operating and Installation Conditions |
|
Installation Category |
III |
|
Pollution Level |
3 |
|
Protection Degree |
CJX2s-09~38: IP20; CJX2s-40~95: IP10 |
|
Ambient Temperature |
Limit of temperature: -35°C ~ +70°C, Normal temperature: -5°C ~ +40°C, The average no more than +35°C within 24 hours. |
|
Altitude |
≤2000m |
|
Ambient Temperature |
The maximum temperature is 70°C, the relative humidity of the air does not exceed 50%, and the temperature below 50% can allow higher relative humidity. If the temperature is 20°C, the air relative humidity could go up to 90%. Special measures should be taken for occasional condensation due to humidity changes. |
|
Installation Position |
Inclination between installation surface and vertical surface should not exceed ±5° |
|
Shock Vibration |
Products should be installed and used without significant shake, shock, and vibration. |
