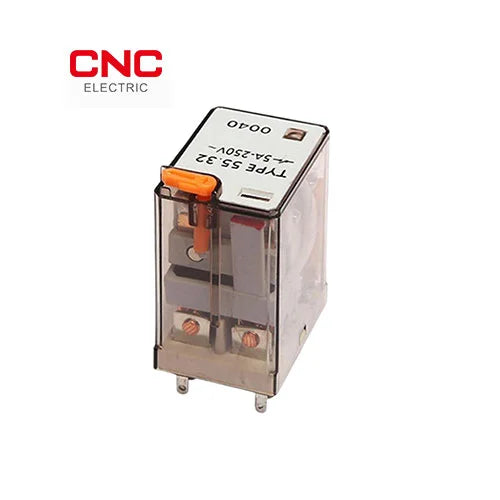

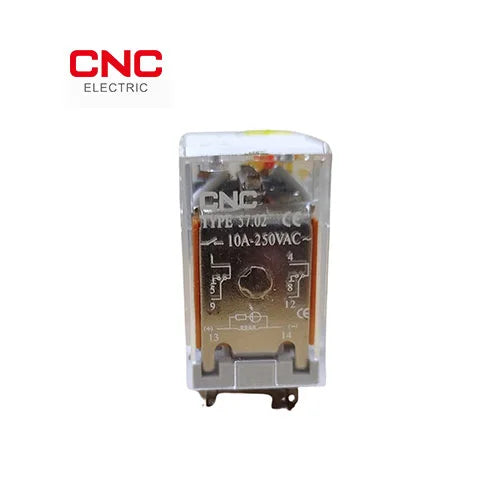

AC Miniature Relay 220V | Compact & Reliable Power Control

Miniature relay buyers in Pakistan choose the AC Miniature Relay 220V when they need a dependable control relay for switching and automation logic inside panels, not a heavy power contactor and not an improvised loose-wire solution. Starting from Rs.800, this 220V AC relay is used in control circuits for lighting control, HVAC sequencing, panel logic, alarm interlocks, motor control support, timers, thermostats, and simple automation tasks in factories, workshops, commercial sites, and home utility panels.

Quick Specs

What This Product Does

A miniature relay is a switching device used in control circuits. It allows one small control signal to open or close another circuit. In simple words, it is one of the basic building blocks of automation. You see it in machine panels, temperature controllers, timer circuits, HVAC logic, small pumps, lighting control, and interlock arrangements. It is cheaper and smaller than a contactor when the actual switching duty is light.

That difference matters. A magnetic contactor is the better choice for heavier motor and power switching. A miniature relay is better when you are handling logic and lighter control duties. In Pakistan, electricians and panel builders often need exactly this kind of part for sequence control, signal duplication, status interlocks, and control isolation inside compact boards.

This is why the AC miniature relay is important even though it looks simple. Many panels fail or become messy because small control parts are replaced with unsafe shortcuts. A proper relay keeps control work neat, serviceable, and easier to troubleshoot later.

Typical Applications in Pakistan

Common uses include timer-based pump start delays with a timer relay AH2-N, thermostat-controlled ventilation or heating logic with a thermostat temperature controller, light control in workshops, changeover logic support, and small motor control commands where the relay controls the coil of a larger contactor.

It is also useful for annunciation and alarms. For example, one status input can energize a relay and trigger a lamp, buzzer, or a second control path. That is why it belongs in professional DB and panel building work across Lahore, Karachi, Islamabad, Rawalpindi, Faisalabad, and Peshawar.

Selection Guide

How to Install

A control relay should be installed by a technician or electrician familiar with relay logic, contact configuration, and coil voltage matching.

• Confirm the control circuit voltage is 220V AC before energizing the relay coil.
• Mount the relay in its proper socket or DIN rail assembly.
• Identify coil terminals and NO / NC contacts correctly before wiring.
• Use proper ferrules and neat panel wiring to keep future maintenance easy.
• Test pickup, dropout, and contact switching behavior after installation.

What This Product Does NOT Protect Against

This is a switching and control component, not a protection device. It does not protect against overload or short circuit, so use the correct MCB or other breaker. It does not protect against earth leakage, so an RCCB / RCBO is still required where leakage protection is needed. It does not stop voltage spikes, so sensitive control panels may still need an SPD.

Miniature Relay vs Contactor vs Timer Relay

CNC vs Other Market Options

Cross-Category Recommendations

If you are buying an AC miniature relay, also consider the timer relay AH2-N for delayed switching, magnetic contactors for heavier load switching, thermal relays for motor overload arrangements, and the 2P MCB for branch protection. In a complete panel, the relay is only one part of the system.

Browse AC circuit breakers, DC circuit breakers, AC breaker collection, DC breaker collection, MCCBs, AC SPDs, DC SPDs, voltage protectors, voltage regulators / stabilizers, RCCB / RCBO, types of circuit breakers, solar DB guide, types of circuit breakers guide, trip curves explained, changeover guide. Even automation panels need proper breaker, surge, and fault-protection selection around the relay logic.

Related Products from CNC Electric

• Timer Relay AH2-N — Rs.2,300
• Magnetic Contactors — Collection
• Thermal Relay — Collection
• 2 Pole MCB — Rs.850
• Thermostat Temperature Controller — Rs.950

FAQs

What is a miniature relay used for?

A miniature relay is used in control circuits for switching, sequencing, interlocking, and automation logic.

What is the 220V relay price in Pakistan?

This product starts from Rs.800, making it a practical low-cost control component for panels and automation work.

Is a miniature relay the same as a contactor?

No. A relay is generally for lighter control work, while a contactor is for heavier power switching such as motors and larger loads.

Can I use this with a timer relay?

Yes. That is a common control combination in panel design, where the timer decides when the relay switches.

Can this relay protect my motor?

No. It is not a protective device. Use the correct breaker, thermal relay, and contactor arrangement for motor protection.

Is it suitable for HVAC and lighting control?

Yes. HVAC sequencing and light control are common uses because the relay is compact and affordable.

Does this work in Pakistan panel boards?

Yes, it is suited to the kinds of control panels, workshops, and utility boards commonly built across Pakistan.

Why buy from CNC Electric Pakistan?

Because you can match the relay with timers, thermostats, contactors, DB boxes, and protection devices from the same overall product ecosystem, with free delivery and 5-year warranty messaging.

Professional control panels depend on small reliable parts just as much as on breakers and contactors. CNC Electric Pakistan offers free delivery, 5-year warranty support, and matching automation components for clean panel building. WhatsApp us at 0326-1111376.
