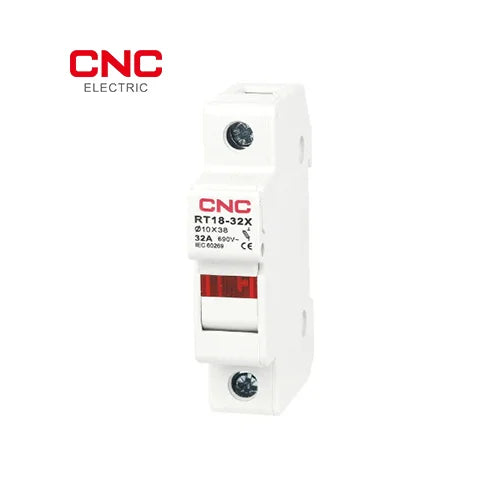

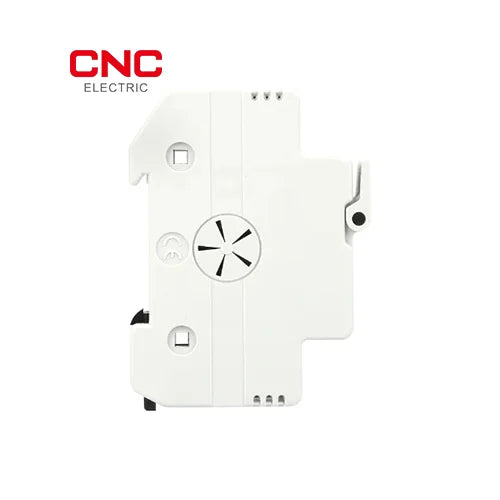

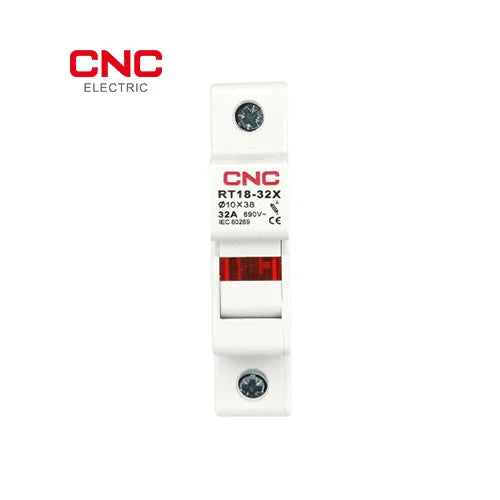

CNC AC Fuse + Holder 220V – Reliable Protection RT18-32X
General ● The RT18-32X AC Fuse + Holder is designed for use in a variety of systems to...
Vendor:
CNC ELECTRIC
Availability:
Out Of Stock
- Rs.295.00
- Rs.295.00
- Unit price
- per
10 customers are viewing this product
Please hurry! Only 0 left in stock
Contact a specialist
Couldn't load pickup availability
General
● The RT18-32X AC Fuse + Holder is designed for use in a variety of systems to protect against overload and short circuit situations.
● This fuse is equipped with a reliable fusing signal device, making it ideal for distribution equipment in high-demand applications.
● It is specifically effective in environments like the energy source industry and infrastructure projects where safety is paramount.
Ac Fuse Key Features
1. Overload and Short Circuit Protection
The RT18 AC Fuse + Holder provides essential protection against overload and short circuit, ensuring the safety of electrical systems.
● Safeguards against current overloads to prevent equipment damage.
● Protects against short circuits, reducing the risk of fire and other hazards.
2. Versatile Use Across Various Applications
Ideal for use in a wide range of residential, commercial, and industrial environments.
● Suitable for residential buildings, non-residential buildings, and infrastructure.
● Ideal for the energy source industry and power distribution systems.
3. High Voltage and Current Rating
Designed to handle high voltage and current, providing robust protection in demanding environments.
● Rated for up to 500V and 32A for reliable operation in heavy-duty systems.
● Operates efficiently with AC 50Hz systems.
4. Reliable Fusing with Neon Light Indicator
Equipped with a fusing signal device for easy monitoring and status indication.
● Neon light and resistors make the fusing status visible, ensuring proactive maintenance.
● Two types of fuses: "gG" for general-purpose and "aM" for motor protection.
Specifications
● Type: RT18-32X
● Voltage Rating: 220V
● Current Rating: Up to 32A
● Frequency: 50Hz
● Fuse Types: "gG" (General-purpose) and "aM" (Motor protection)
● Rated Voltage: 500V
● Indicator: Neon light for fusing status
● Application: Overload and short Circuit protection in residential, non-residential, and industrial sectors.
Brand
● CNC Electric
|
Type |
Assorted Fuse |
Rated Voltage (V) |
Rated Current (A) |
Dimension (mm) |
|
RT18-32(32X) 1P |
10×38 |
500V |
32 |
A: 82, B: 78, C: 63, D: 18, E: 18 |
|
RT18-63(63X) 1P |
14×51 |
500V |
63 |
A: 106, B: 103, C: 55, D: 52, E: 52 |
Parameters of fuse links
|
Dimension (mm) |
Rated Current (A) |
Breaking Capacity (kA) |
L (mm) |
ΦC (mm) |
|
8.5×31.5 |
2, 4, 6, 10, 16 |
100 |
31.5 ± 0.6 |
8.5 ± 0.1 |
|
10×38 |
2, 4, 6, 10, 16, 20, 25, 32 |
100 |
31.5 ± 0.6 |
10.3 ± 0.1 |
|
14×51 |
2, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
100 |
51 ± 10 |
14.3 ± 0.1 |
Overall and mounting dimensions(mm)
