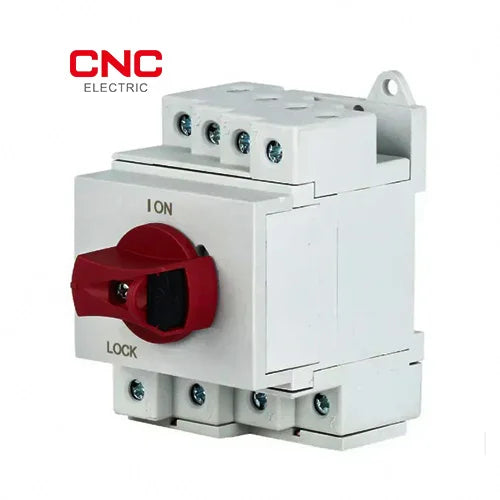

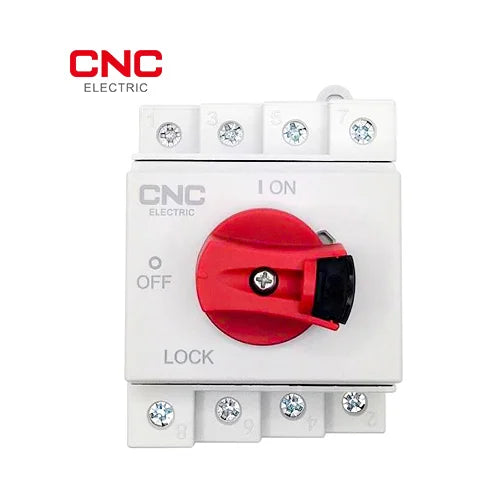

CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

High-Quality and Reliable Disconnect Switch for Solar Systems The Din Rail isolation switch YC1SC8 series (4-Pole) is...
Vendor: CNC Electric Pakistan
Availability: In Stock
Rs.5,280.00
Rs.6,000.00
Rs.5,280.00
10 customers are viewing this product
Please hurry! Only 45 left in stock
Ampre: 32A
Subtotal: Rs.5,280.00
Why Shop With Us?
⏰

EXPRESS DELIVERY

Same Day Delivery in Lahore and Karachi. Order Before 4 PM.

STANDARD DELIVERY

Delivery Within 2 to 3 Working Days.

PRODUCT WARRANTY

Trusted Products with Quality Assurance.
Chat

Contact a specialist

    DC Isolator Mounted Switch

    CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

    Rs.6,000.00 Rs.5,280.00
    DC Isolator Mounted Switch
    DC Isolator Mounted Switch

    CNC 4-Pole DC Isolator – DIN Rail Mounted Switch

    Rs.6,000.00 Rs.5,280.00
    Ampre: 32A
    Description

    High-Quality and Reliable Disconnect Switch for Solar Systems

    The Din Rail isolation switch YC1SC8 series (4-Pole) is designed for DC power systems up to DC1200V with rated current up to 32A. It allows simultaneous disconnection of up to 4 MPPT lines, making it ideal for complex solar setups.

    This isolator is used for infrequent manual switching and safe disconnection in photovoltaic systems. Typical applications include control cabinets, combiner boxes, and DC distribution panels.
    Standards: IEC/EN60947-3, AS60947.3, UL508i

    Key Features:

    • Complete 4-Pole Isolation:
      Efficiently isolates four DC circuits at once, ensuring no current flows during maintenance, thereby guaranteeing operator safety.

    • Robust Build Quality:
      Constructed with premium materials, this isolator is durable and long-lasting, even in harsh environmental conditions.

    • Space-Saving DIN Rail Design:
      Its compact design ensures a tidy and space-efficient installation on standard DIN rails.

    • Easy to Install:
      The snap-on DIN rail system enables quick installation for both new systems and upgrades.

    • UV Resistant & Flame Retardant:
      Ideal for outdoor PV installations, thanks to its weather-resistant and flame-retardant housing.

    Applications:

    • Solar PV Systems:
      Disconnect and isolate multiple solar strings (MPPTs) safely from the inverter/DC circuitry.

    • DC Power Distribution:
      Suitable for residential, commercial, and industrial DC disconnection needs.

    • Maintenance & Safety:
      Essential for system upgrades, troubleshooting, or servicing, providing full protection against live DC hazards.


    Electrical Performance

    Data

    Rated Heating Current (Ith)

    32A

    Rated Insulation Voltage (Ui, V DC)

    1000V , 4Pole

    Rated Working Voltage (Ue, V DC)

    1000V or 1200V

    Rated Impulse Voltage (Uimp, kV)

    8kV

    Rated Short-Time Withstand Current (Icw(1s), kA)

    1kA

    Rated Short-Time Making Capacity (Icm, kA)

    1.7kA

    Rated Short Circuit Current (Icn)

    3kA

    Overvoltage Category

    II

    Polarity

    No polarity, "+" and "-" can be interchanged

    Switch Knob Position

    9 o'clock position off, 12 o'clock position on, 3 o'clock position on

    Service Life

    Mechanical

    10000 cycles

    Electrical

    3000 cycles



    Why Choose the CNC 4-Pole DC Isolator?

    The CNC 4-Pole DC Isolator is the go-to solution for safely managing multiple DC circuits in solar and other critical power systems. Its high-performance, reliable switching, and user-friendly installation make it the ideal choice for professionals looking to minimize downtime and maximize protection.
