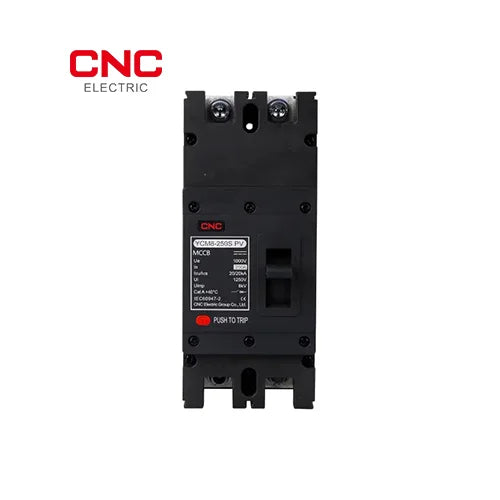

CNC DC 2 Pole MCCB 125A in 500V (B), 250A in  1000V (B) | Safe & Reliable Circuit Protection front view Pakistan
DC 2 Pole MCCB 125A in 500V (B), 250A in 1000V (B) | Safe & Reliable Circuit Protection - CNC DC 2 Pole MCCB 125A in 500V (B), 250A in 1000V (B) | Safe & Reliable Circuit Protection front view Pakistan

DC 2 Pole MCCB 125A in 500V (B), 250A in 1000V (B) | Safe & Reliable Circuit Protection

Rs.12,500
Rs.15,000
Rs.12,500
10 customers are viewing this product
Ampre: 125A 500V
Subtotal: Rs.12,500
CNC DC 2 Pole MCCB 125A in 500V (B), 250A in  1000V (B) | Safe & Reliable Circuit Protection front view Pakistan

DC 2 Pole MCCB 125A in 500V (B), 250A in 1000V (B) | Safe & Reliable Circuit Protection

Rs.15,000 Rs.12,500

DC 2 Pole MCCB 125A in 500V (B), 250A in 1000V (B) | Safe & Reliable Circuit Protection

Rs.15,000 Rs.12,500
Ampre: 125A 500V

CNC YCM8-250 DC 2 Pole MCCB -- 125A / 250A

A DC-rated molded case circuit breaker available in two configurations: 125A at 500V DC and 250A at 1000V DC. This MCCB is built for high-power DC systems -- solar string combiners, battery banks, and DC bus distribution in large PV installations across Pakistan.

Unlike AC MCCBs, the YCM8-250 has DC-specific arc chambers that can extinguish the sustained arc produced by direct current. The 2-pole design handles positive and negative conductors in a single device.

Specifications

Model YCM8-250
Poles 2 Pole
Variant 1 125A @ 500V DC
Variant 2 250A @ 1000V DC
Breaking Capacity 25kA
Trip Unit Thermal-magnetic
Mounting Panel mount
Application Solar / Battery / DC Distribution

Application Guide

  • 125A 500V variant: Battery bank main disconnect for 48V-500V lithium or lead-acid systems. Commonly used in 30-50 kW hybrid inverter installations.
  • 250A 1000V variant: Solar string combiner box main breaker for large rooftop and ground-mount PV systems (50-100 kW+). Also used as DC bus-bar protection in commercial solar plants.
DC polarity: Always observe correct polarity markings on the MCCB terminals. Incorrect wiring will prevent proper arc extinction during fault clearing. Verify with a multimeter before energizing.
