Selector Switch Price in Pakistan 2026 — Buyer's Guide

A selector switch — also called a rotary switch, cam switch, or VA selector — is a panel-mounted rotary device that lets a single meter (voltmeter or ammeter) read multiple phases or measurement points. It is the small black or red rotary knob you see on every 3-phase distribution board, generator panel, motor control centre, and switchgear cabinet in Pakistan. CNC Electric stocks the LW28 series in 20 A panel-mount configurations from Rs. 1,350.

Every CNC selector switch features a self-locking detent at each position, IEC 60947-3 contact ratings, panel-mount mounting (48 mm or 96 mm cutout depending on series), and a 5-year warranty. Stocked locally in Lahore for same-day dispatch.

CNC Selector Switch Price Table — Pakistan 2026

Free delivery across Pakistan. 5-year warranty on all CNC selector switches. Bulk & dealer pricing — WhatsApp +92 326 1111376.

What Is a Selector Switch?

A selector switch is a rotary device with multiple positions that routes a single circuit between several inputs. Unlike a toggle switch (two states) or push button (momentary), a selector stays in whichever position you turn it to. The most common uses in Pakistani electrical work are:

• Voltmeter / ammeter selection — one meter reads each of the three phases through the switch.
• Motor mode selection — auto / off / manual (the classic 1-0-2 pattern).
• Source selection — between two sensors, two control circuits, or two control modes.
• Phase rotation — heavy-duty cam switches for motor starters (forward / off / reverse).

The internal mechanism is a cam-operated rotary shaft that opens and closes contact pairs in a defined sequence as you turn the knob. Each position locks with a detent click; some industrial designs add key-lock or spring-return options.

Voltmeter Selector vs Ammeter Selector

Both are stocked in 20 A LW28 panel-mount housing — see Voltmeter Selector and Ampere Selector.

2-Position, 3-Position, 4-Position — Which Layout Do You Need?

This is the most common question we get on selector switches.

2-position (ON / OFF): Like a toggle but with rotary feel. Used where a screwdriver-lockable position is required, or for control inputs that must be deliberately reset.

3-position (Auto / Off / Manual or 1 / 0 / 2): The single most common configuration in motor control and pumping. Center is OFF; the two sides are AUTO (controlled by external relay / float / sensor) and MANUAL (run-by-hand). The 1-0-2 designation is the same thing in IEC pole notation.

4-position (R, Y, B, OFF): Standard ammeter selector layout. Pick R, Y, or B to read that phase's current; OFF disconnects the meter from all CT secondaries (the CT loop remains closed internally).

7-position (3 L-L, 3 L-N, OFF): Standard voltmeter selector. RY, YB, BR for line-to-line voltage; R-N, Y-N, B-N for line-to-neutral; OFF in between.

Phase Selector Switch vs Diverter Switch — Are They the Same?

No — they sit at different points in the electrical chain.

Selector switch: low-current device (10-32 A typical) used on the metering or control side. Selects which signal feeds a meter or control input. Mounted in panel cutouts, never carries load current.

Diverter switch / changeover switch: high-current device (32 A – 250 A+) used on the power side. Physically switches the actual load between two sources. Mounted on DIN rail or as a panel device — see CNC Changeover Switches.

Plain English: the selector tells the meter what to look at. The diverter tells the load which source to draw from.

Selector Switch Wiring — How to Connect

Voltmeter selector (7-position): Connect R, Y, B (three phases) and N (neutral) to four input terminals. The output terminals (typically marked V+ / V−) connect to the voltmeter. As you rotate the knob, internal cam contacts route the appropriate phase pair to the meter:

1. RY: input R → V+, input Y → V−
2. YB: Y → V+, B → V−
3. BR: B → V+, R → V−
4. R-N: R → V+, N → V−
5. Y-N: Y → V+, N → V−
6. B-N: B → V+, N → V−
7. OFF: meter disconnected

Ammeter selector (4-position): Wire the three CT secondaries (1S1/1S2, 2S1/2S2, 3S1/3S2 from R, Y, B current transformers) to the switch input terminals. The output goes to the ammeter. Critical: the selector must short the unselected CTs internally — never break an active CT secondary or you will get dangerous open-CT voltage (kV-class).

Where to Install a Selector Switch

Distribution board (DB): Standard placement on 3-phase DBs for voltage/current monitoring. Cutout in the panel door, voltmeter/ammeter beside the selector knob.

Generator panel: Voltmeter selector for monitoring genset output voltage on each phase before paralleling or load-on. Ammeter selector for genset loading monitoring.

Motor control centre (MCC): 3-position (auto/off/manual) for each motor circuit. Allows electrician hand-test without disabling the auto control system.

Solar inverter panel: Voltmeter selector for grid-side voltage monitoring. Useful for verifying balanced 3-phase voltage before allowing inverter to sync.

Industrial panel / switchgear: Cam-style selectors for source switching, control mode, key-lock isolation.

Top Picks by Use Case

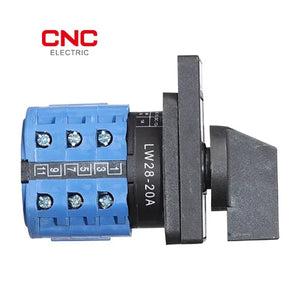

For 3-Phase Voltage Monitoring (most common): LW28 Voltmeter Selector 20 A. Rs. 1,350 — 7-position panel-mount switch for any 3-phase DB or generator panel. View product →

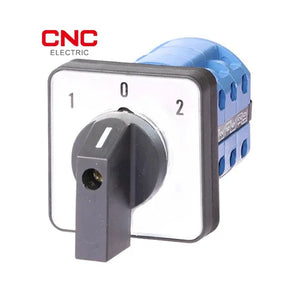

For Current Monitoring with CTs: LW28 Ammeter Selector 20 A. Rs. 1,350 — 4-position with internal CT shorting on unselected phases. View product →

Bundle for Generator Panel: One voltmeter selector + one ammeter selector + analog 96 mm V/A meters. Rs. 2,700 for the pair — covers full generator output monitoring at lowest cost.

CNC vs Clopal vs Opas vs Camsco vs Salzer — Brand Comparison

CNC is mid-priced in the value tier with the longest warranty (5 years). Local brands (Clopal, Opas) are cheaper but ship with 1-year warranty and looser contact-rating tolerances. Camsco / Salzer / Schneider are premium but 2-4× the price for the same panel function.

Auto-Manual Selector Switch (1-0-2 / Auto-Off-Hand)

The 3-position auto/off/manual selector — sometimes called a 1-0-2 switch or H-O-A (hand-off-auto) — is the standard control element for any motor or pump that has both an automatic trigger (float switch, pressure switch, timer) and a manual override.

• Position 1 (AUTO): Motor runs when the external automation says to. Float switch closes → contactor energises → motor runs.
• Position 0 (OFF): Motor cannot run from any source. Lockable position for service work.
• Position 2 (MANUAL): Motor runs directly from the control supply, bypassing the automation. Used for test, fill, drain, or override.

Wiring is typically two NO contacts in parallel — one closed in AUTO (in series with the float/sensor), one closed in MANUAL (bypassing it). Both off in the centre OFF position.

Bulk & Dealer Pricing

CNC LW28 selector switches are stocked in Lahore with same-day dispatch nationwide. Bulk and dealer pricing for panel builders, MCC manufacturers, and switchgear assemblers — WhatsApp +92 326 1111376 with quantity. Custom-position (5, 6, 12-position cam switches) on order from manufacturer with 3-week lead time.

Read our deep-dive guide: Selector Switch Guide — Types, Wiring & Applications in Pakistan.
